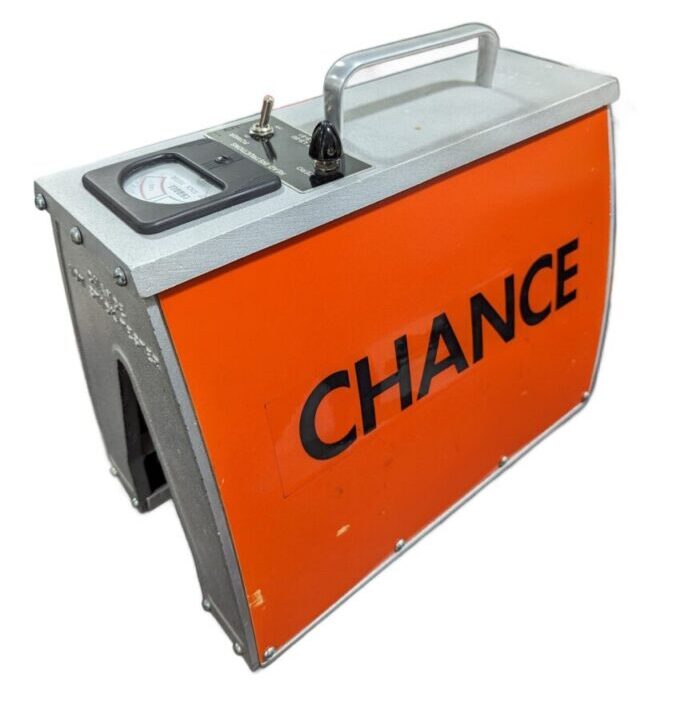

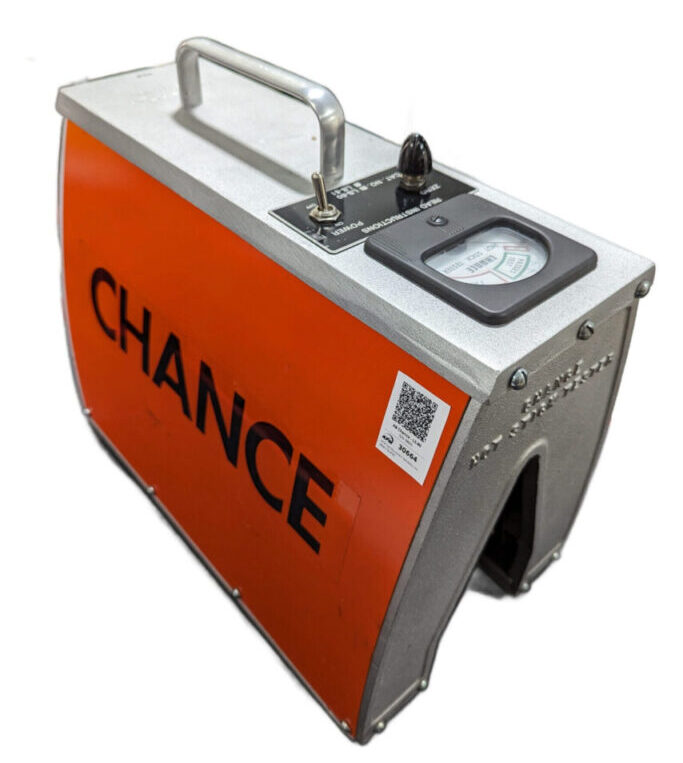

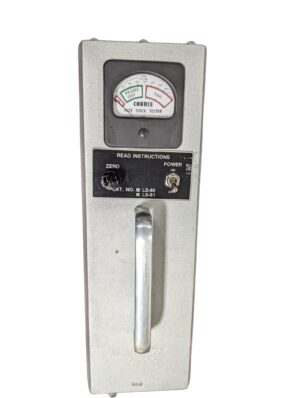

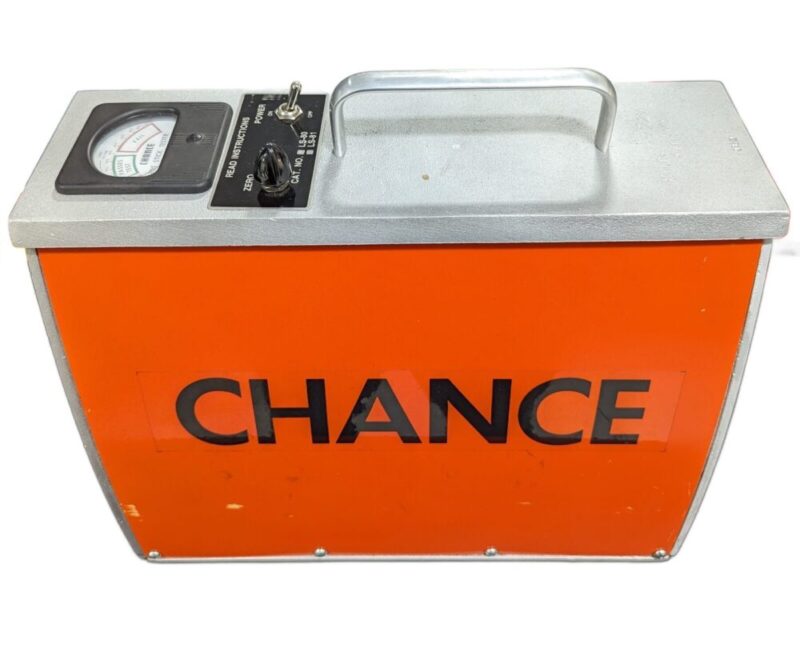

The AB Chance Hot Stick Tester LS-80 is a crucial piece of equipment for those working with high-voltage electrical lines.
The LS-80 is designed to test the integrity of insulated live-line tools, commonly known as “hot sticks.” This ensures the safety of workers who rely on these tools to handle energized equipment.
Here’s a breakdown of its key features:
Key Features:
Functionality:
Importance of Testing:
Resources:
Key Features:
- Portable and easy to operate.
- Suitable for testing fiberglass-reinforced plastic (FRP) hot sticks.
- Provides accurate leakage current readings.
- Includes a check bar for verifying the tester’s functionality.
- Often comes with instructional materials, such as a DVD and owner’s manual.
Functionality:
- The LS-80 performs both “wet” and “dry” tests, simulating different environmental conditions.
- It measures the leakage current of the hot stick, providing a quantitative assessment of its condition.
- It adheres to industry standards set by ASTM, IEEE, and OSHA
Importance of Testing:
- Regular testing is essential to detect any damage or contamination that could compromise the hot stick’s insulating properties.
- This helps prevent electrical accidents and ensures worker safety.
Resources:
