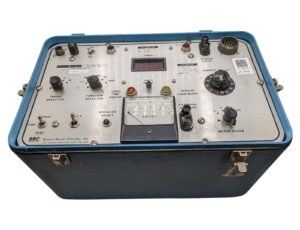

The Brown Boveri Electric 504 test set type 608089-T1 is a portable test set used to test overcurrent and ground fault trip devices in circuit breakers. It is a versatile test set that can be used to test a wide range of ABB circuit breakers, including Power Shield, K-Series, and DON-Series circuit breakers.
The 504 test set type 608089-T1 has a variable current output of 0 to 20 amps, which is enough to simulate overload conditions for most circuit breakers. It also has a built-in sensor check function that can be used to verify the operation of the trip device sensors.
The Brown Boveri Electric 504 Test set can be used to test the following types of breakers and trip units:
- Molded case circuit breakers (MCCBs): K-600S through K-4000S, K-DON 600S, K-DON 800S and K-Don 1600S
- Electronic trip units: Power Shield
Here are some of the key features of the Brown Boveri Electric 504 test set type 608089-T1:
- Variable current output of 0 to 20 amps
- Built-in sensor check function
- Can be used to test a wide range of ABB circuit breakers
- Portable and easy to use
Manual ⇓
