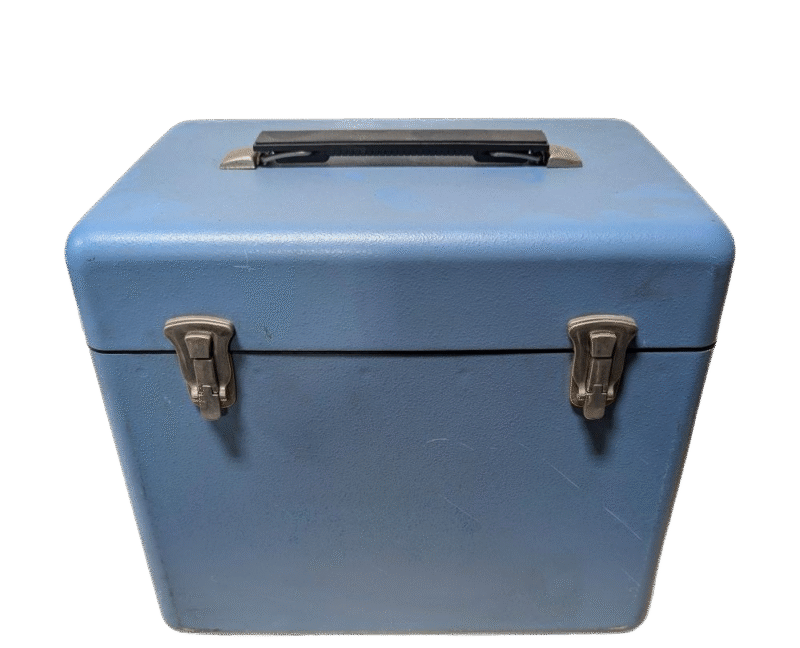

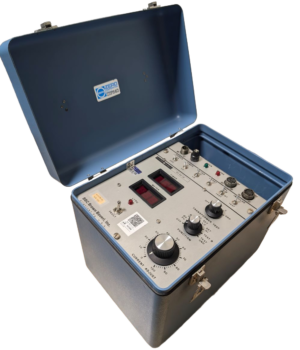

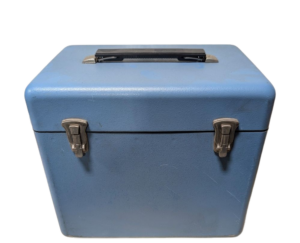

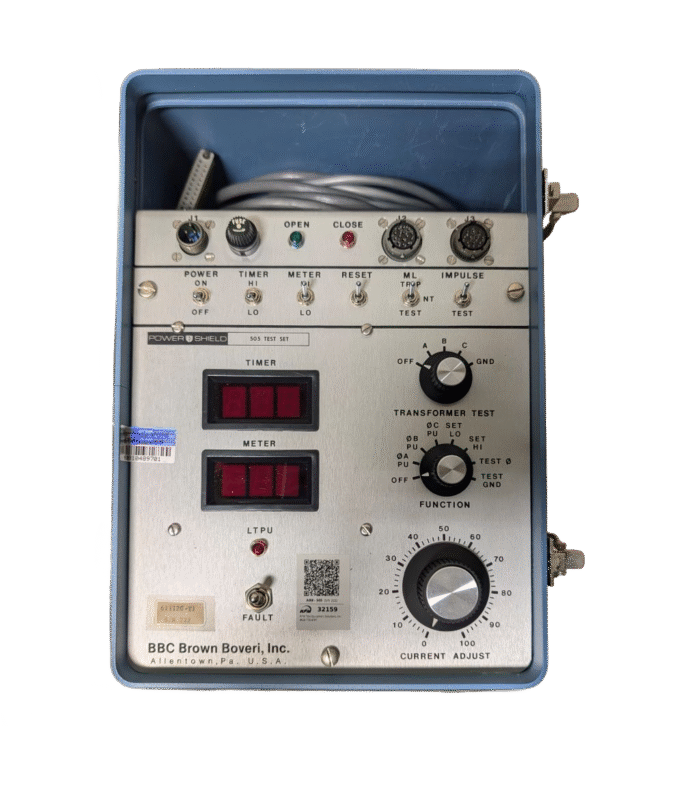

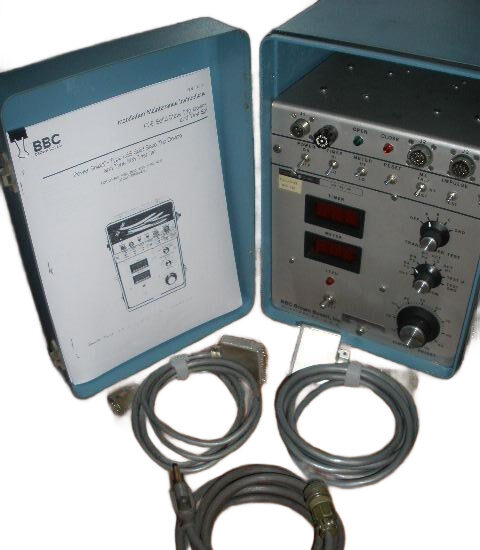

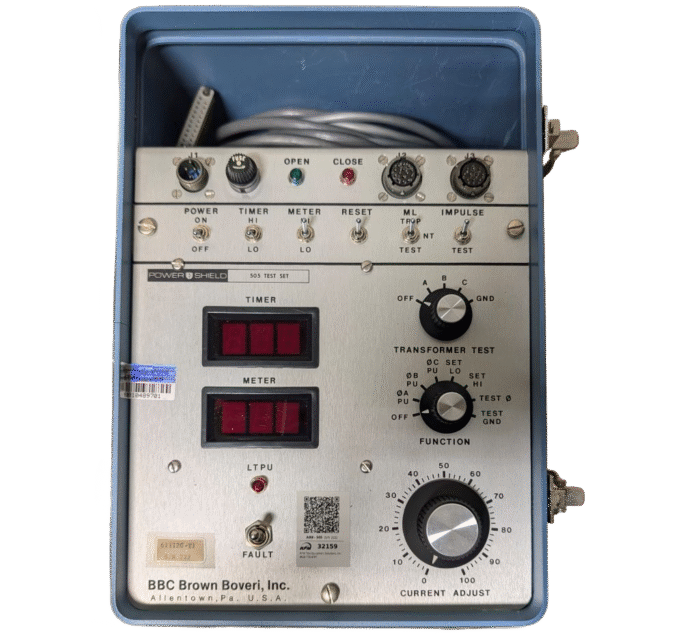

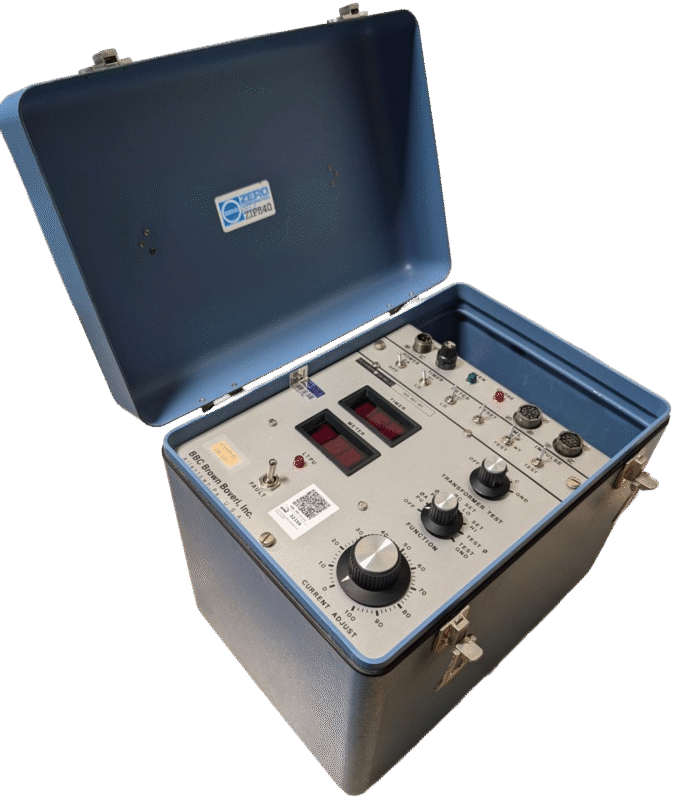

The ABB 505 Test Set is a powerful and versatile tool designed for testing secondary protection devices in electrical systems. It’s primarily used to simulate faults and overloads to ensure the proper functioning of protective relays, circuit breakers, and other secondary protection components.
Key Features and Capabilities:
Applications:
Key Features and Capabilities:
- Comprehensive Testing:Â Can simulate a wide range of fault conditions, including phase-to-phase, phase-to-ground, and overload faults.
- Flexibility:Â Offers various testing modes, such as manual, automatic, and sequential testing.
- Accuracy:Â Provides precise and reliable test results, ensuring the integrity of the secondary protection system.
- Efficiency:Â Streamlines the testing process, saving time and effort.
- User-Friendly Interface:Â Features a user-friendly interface for easy operation and configuration.
Applications:
- Routine Maintenance:Â Regularly testing secondary protection devices to ensure their continued reliability and performance.
- Commissioning:Â Verifying the correct operation of newly installed or modified protection systems.
- Troubleshooting:Â Identifying and resolving faults or malfunctions in secondary protection components.
- Research and Development:Â Supporting research and development activities related to protection systems.
By using the ABB 505 Test Set, electrical engineers and technicians can confidently assess the performance of secondary protection devices and maintain the safety and reliability of electrical systems.
