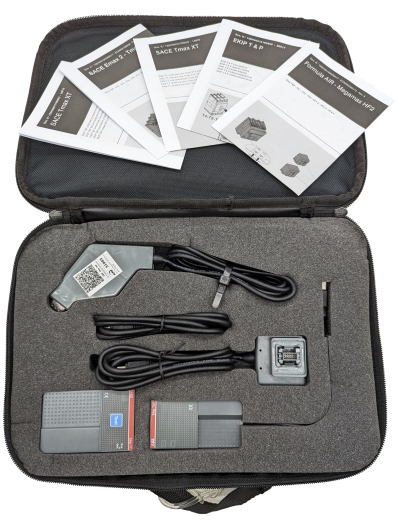

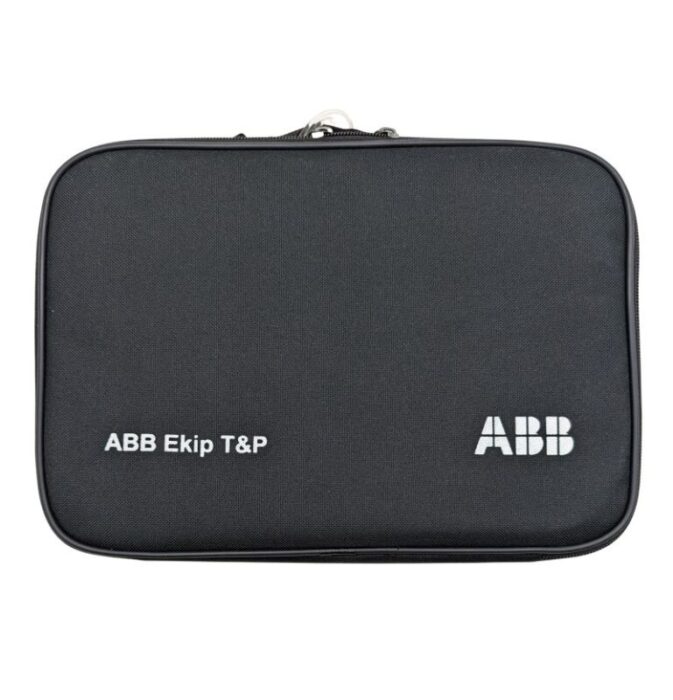

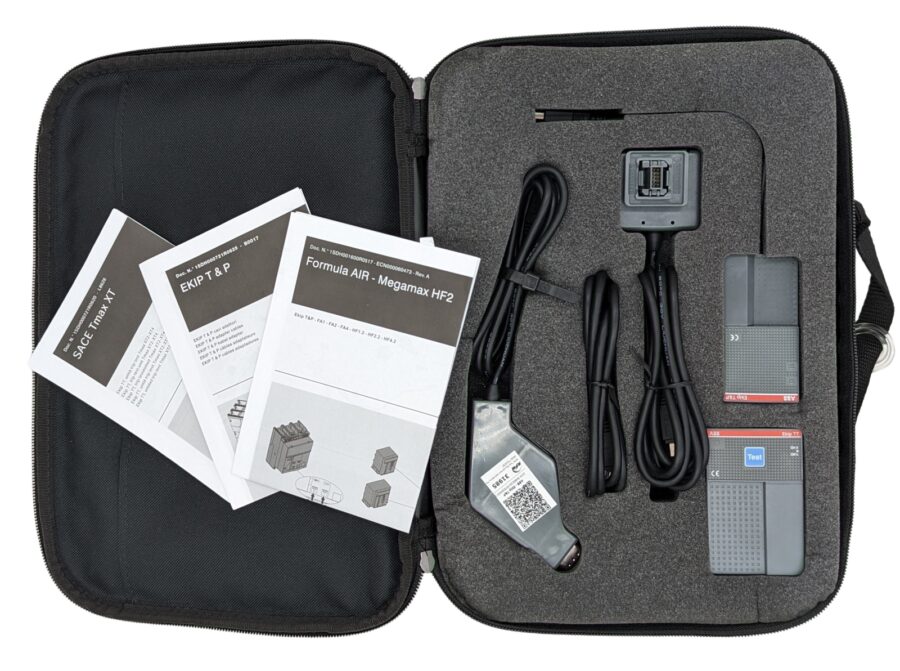

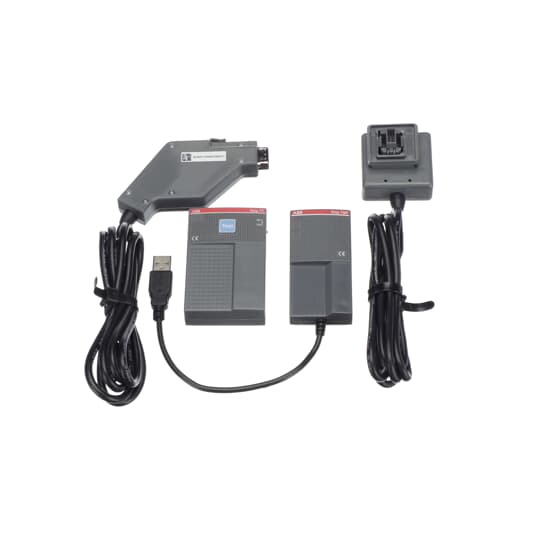

The ABB Ekip T&P Connect Secondary Injection Test Set is a software application for personal computers that interface with ABB low voltage circuit-breakers equipped with compatible protection releases.
The Ekip T&P test set allows the releases to be configured, monitored, controlled and tested. Ekip Connect can connect to the releases in the point-to-point or network modes, and connection is made using the front test connector or to communication modules installed on the circuit-breaker.
Testing:
Trip Units:
Types of Breakers and Trip Units:
Resources:
Video:
Testing:
The Ekip T&P test unit can perform a variety of tests on these breakers and trip units, including:
- Overcurrent tripping
- Undervoltage tripping
- Ground fault tripping
- Time delay
- Shunt trip
- Closing coil
- Communication functions
Trip Units:
- Ekip DIP
- Ekip Touch
- Ekip Hi-Touch
- Ekip G Touch
- Ekip G Hi-Touch
Types of Breakers and Trip Units:
- Molded case circuit breakers (MCCBs): Tmax XT
- Power breakers: Emax 2
