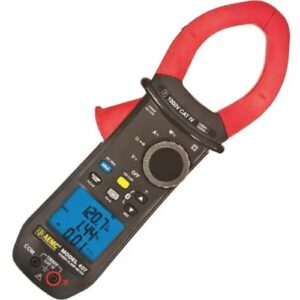

The AEMC Instruments 407 is a versatile True RMS (Root Mean Square) power clamp-on meter designed for a wide range of electrical testing applications.
The AEMC 407 is also safety rated at 1000V CAT IV, making it safe to operate in all electrical environments. It is also rugged and durable, with an IP54 rating for dust and water resistance.
Here’s a breakdown of its key features:
Advanced Features:
Key Features:
Applications:
Resources:
Advanced Features:
- True InRush® current measurement.
- Data logging capabilities with storage for up to 1000 measurements.
- Wireless communication with a PC via Bluetooth.
- Included DataView® software for data analysis and reporting.
Key Features:
- True RMS sensing for accurate measurements of distorted waveforms
- Auto-ranging multimeter for ease of use
- Clamp-on current measurement for non-contact measurement of current
- Voltage measurement up to 1000V AC/DC
- Resistance measurement up to 100MΩ
- Frequency measurement up to 1000Hz
- Power measurement up to 9999W
- Inrush current measurement up to 10000A
- Harmonic analysis up to the 31st harmonic
- Data logging capability to record up to 1000 measurements
- Wireless Bluetooth communication for data transfer to a PC
Applications:
- Measuring AC and DC current and voltage
- Measuring resistance, frequency, and power
- Measuring inrush current
- Performing harmonic analysis
- Data logging
