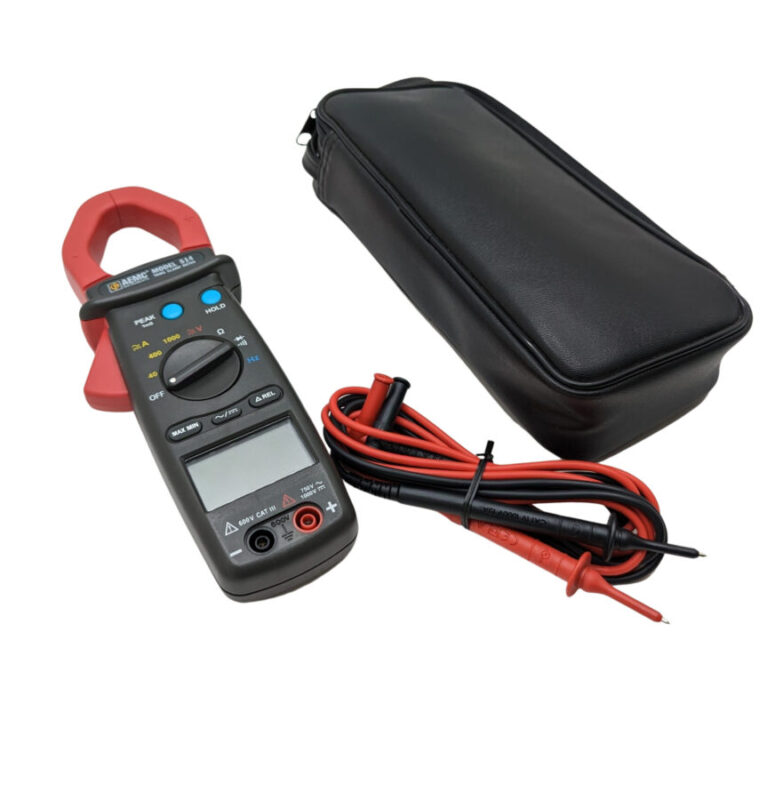

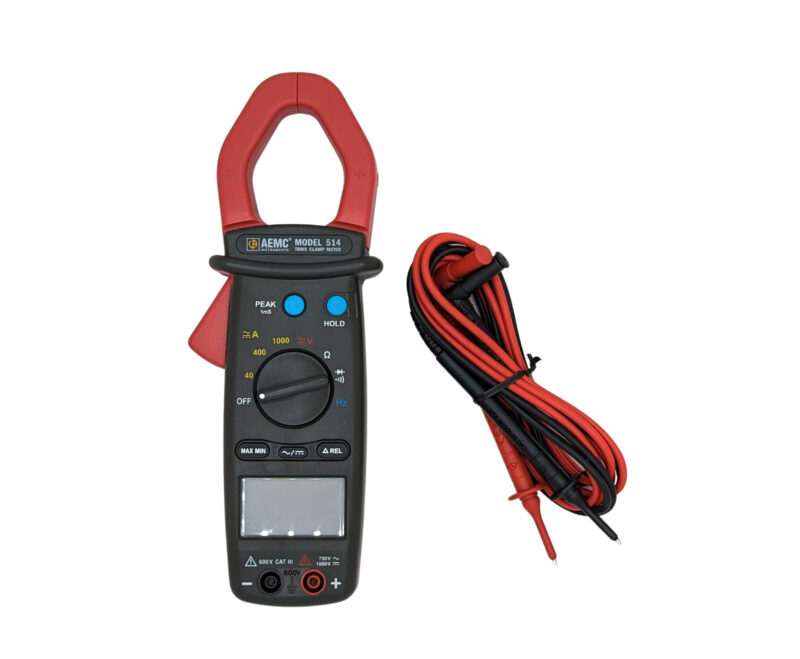

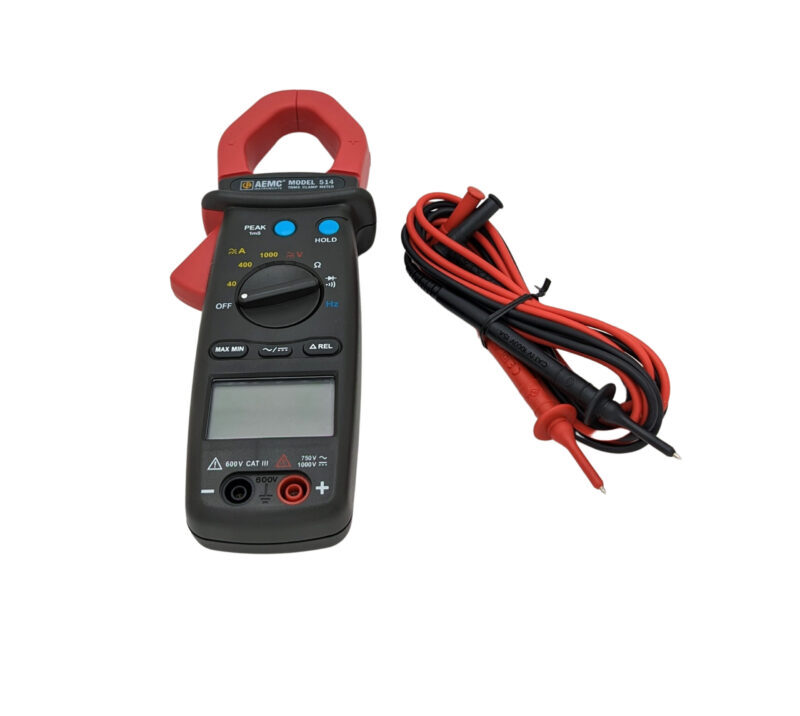

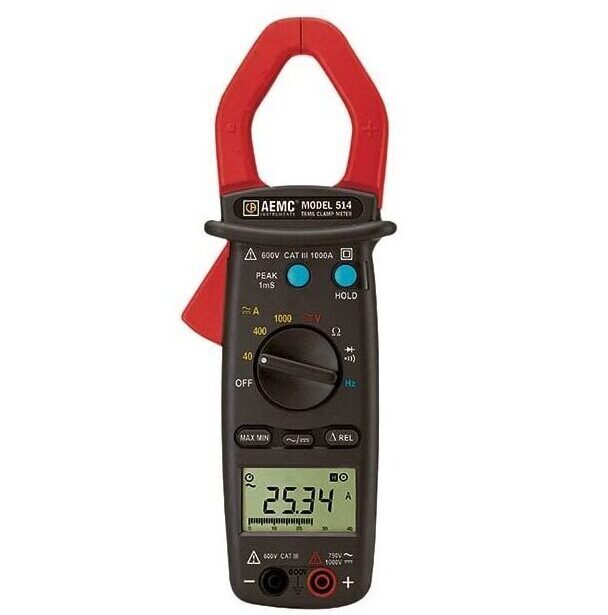

The Clamp-on Meter Model 514 is a professional instrument that measures up to the toughest standards. It is built into a rugged mechanical case and is designed using quality polycarbonate materials.
Key Features:
Model 514
Design and Usability:
Resources:
Key Features:
Here are some of the key features of the AEMC Instruments 514 Clamp-on Meter:
- True RMS measurements for accurate readings on distorted waveforms
- Auto-ranging for quick and easy measurements
- High-resolution display for precise readings
- Clamp-on design for easy and safe measurement of live circuits
- Built-in safety features for protection of the user and the meter
- Rugged construction for reliable field use
- Meets IEC 61010-1 Category IV for 1000 V ratings
Model 514
The Model 514 measures AC and DC current, AC and DC voltage, resistance, continuity with beeper, and frequency from V or A. It also features a diode test function. The Model 514 also uses Hall sensor technology that provides both DC and AC current measurements to 1000A.
The Model 514 is sized for comfortable, one-handed operation. This model is True RMS sensing responding to distorted signal electrical systems. The jaw openings 1.575″ (40mm).
Design and Usability:
- It features a rugged design for durability.
- It’s designed for comfortable, one-handed operation.
- It has a 40mm jaw opening.
- It is auto-ranging.
