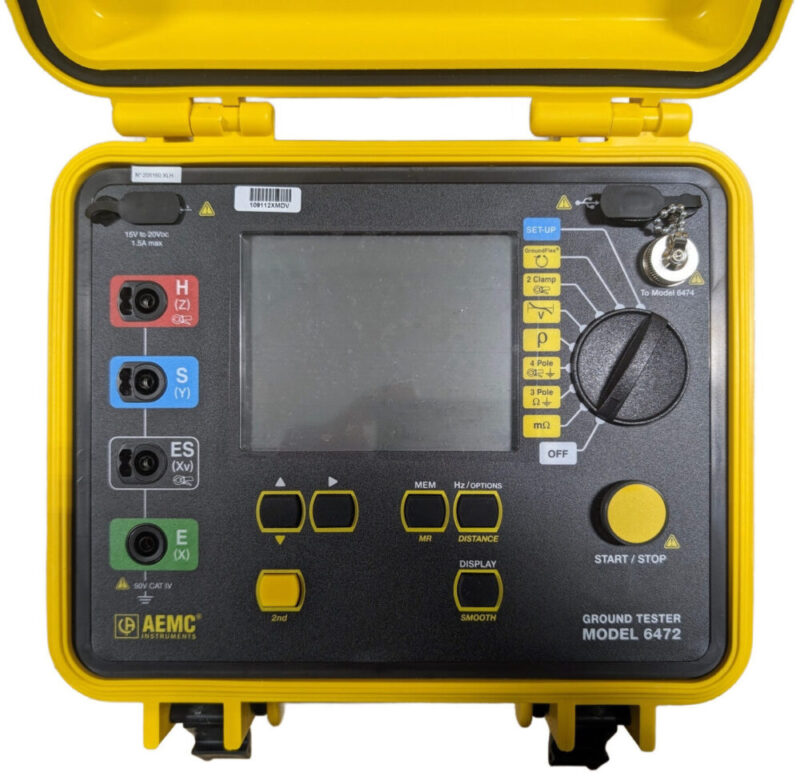

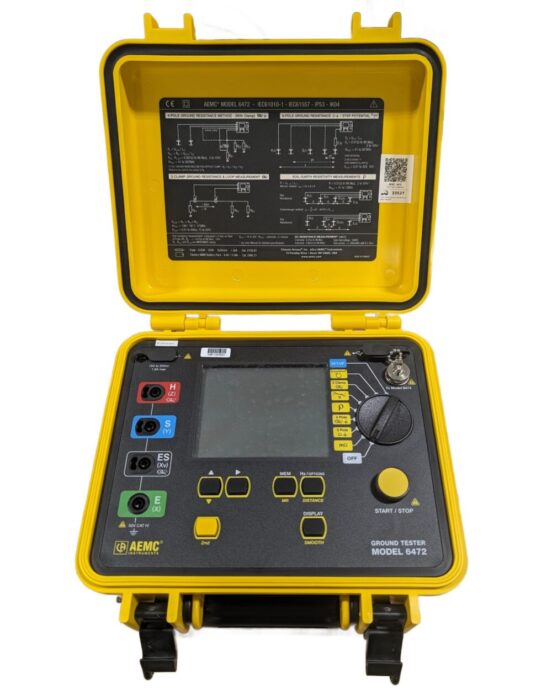

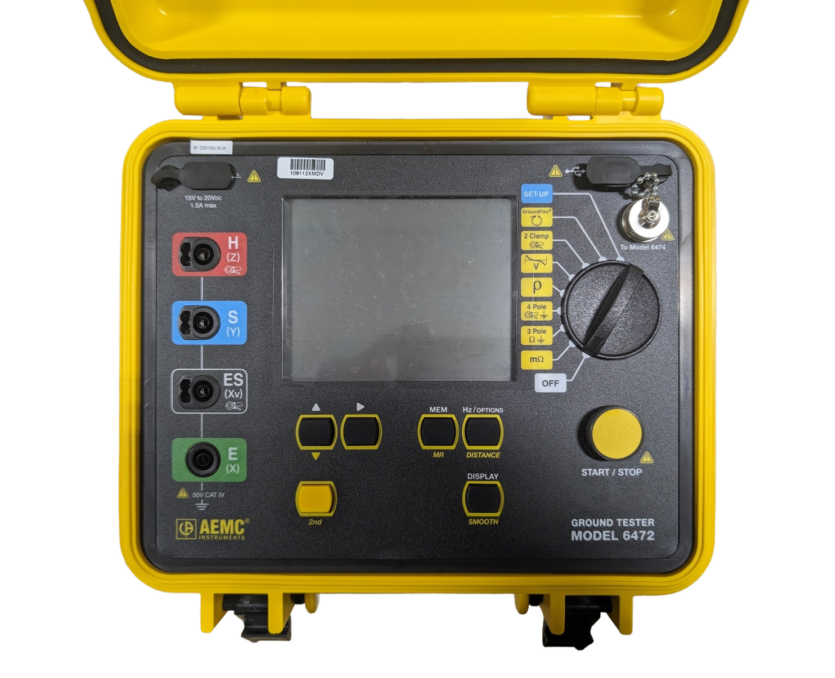

The AEMC Instruments Model 6472 is a multi-function digital ground resistance tester that is designed to measure a variety of grounding parameters, including:
- Bond resistance
- Ground resistance (with and without clamps)
- Soil resistivity
- Earth coupling
- Step & touch potential
It is a portable instrument that is rugged and easy to use, making it ideal for use in a variety of applications, including:
- Electrical grounding systems
- Lightning protection systems
- Telecommunications grounding systems
- Power transmission and distribution systems
The Model 6472 has a number of features that make it a versatile and easy-to-use ground resistance tester, including:
- Auto-ranging, which automatically selects the optimum measurement range, test frequency, and test current
- Up to 512 test results can be stored in internal memory for later recall to the display or downloaded to a PC via DataView® software
- Rugged construction that meets or exceeds mechanical and safety specifications for shock, vibration, and drop tests per IEC standards
- Adjustable test frequency provides for rejection of high levels of interference, allowing it to be used under difficult conditions such as high stray currents that affect accuracy
Here are some of the specifications of the Model 6472:
- Measurement range: 0.01 Ω to 99.99 kΩ
- Test current: 2 mA to 250 mA
- Test frequency: 48 Hz, 105 Hz, 128 Hz, 250 Hz, 940 Hz
- Memory: 512 test results
- Dimensions: 9.8 in x 7.9 in x 3.9 in (249 mm x 201 mm x 99 mm)
- Weight: 5.5 lb (2.5 kg)
