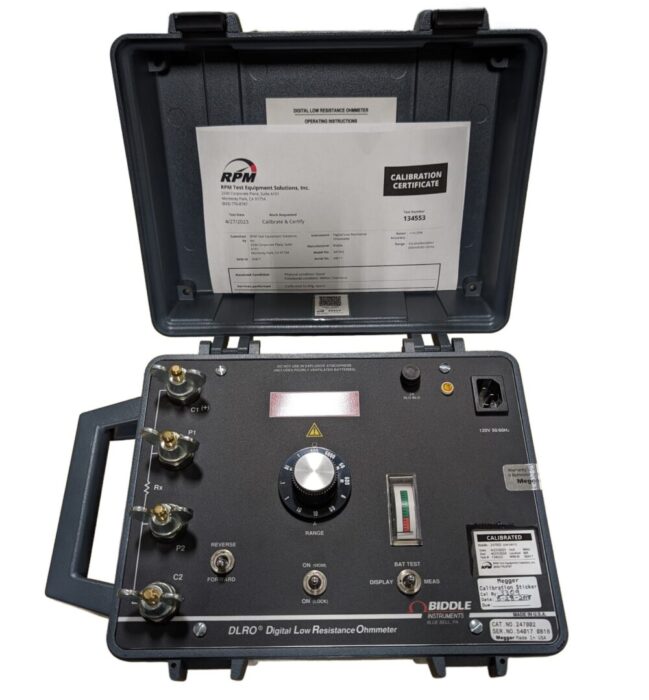

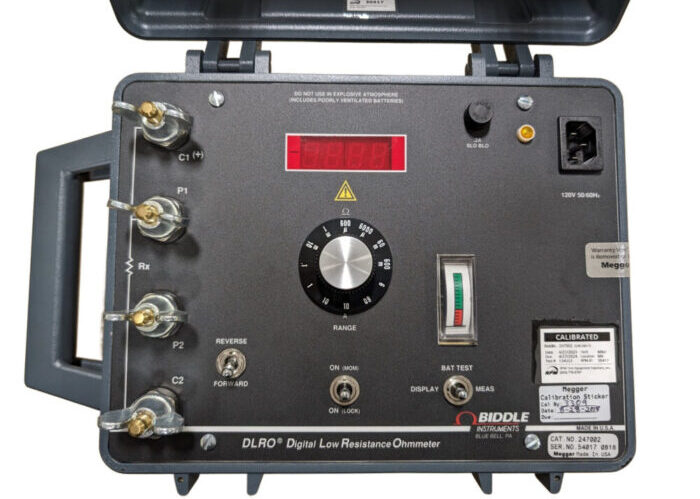

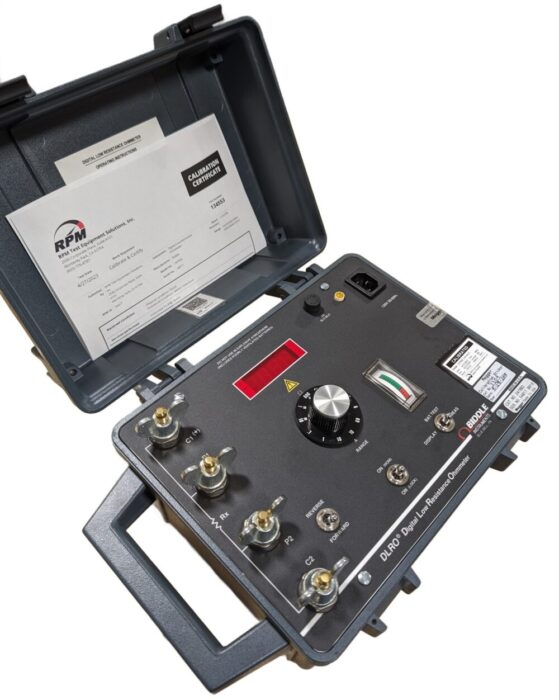

The Biddle Instruments 247002 Single-Pak Low-Range Digital Low Resistance Ohmmeter is a battery powered tester that covers the ranges of 10µΩ to 599.9 µΩ. The Biddle 247002 is ideal for measuring low-resistance contact and connection resistances on a wide variety of devices and applications.
The Biddle Instruments 247002 is designed to provide fast, accurate and reliable low-resistance measurements. The instrument uses a four-wire measurement technique to eliminate lead resistance and ensure accurate readings. The Biddle 247002 also features a current-reversing switch that averages out voltage offset in the test sample, ensuring even more accurate readings.
The Biddle Instruments 247002 is a valuable tool for any electrician or technician who needs to measure low-resistance contact and connection resistances.
Here are some of the key features of the Biddle Instruments 247002:
- Single-Pak design for portability
- Extra range of 0 to 599.9 µΩ for applications requiring 0.1 µΩ resolution
- Current-reversing switch to average out voltage offset in the test sample
- Captive wing nuts for easy operation
- Input voltage protection against accidental overvoltage up to 30 volts
- Wide operating temperature range of -20°C to +55°C
- Motor windings
- Switchgear and Circuit Breakers
- Bond Integrity
- Cable Joints
- Batteries
