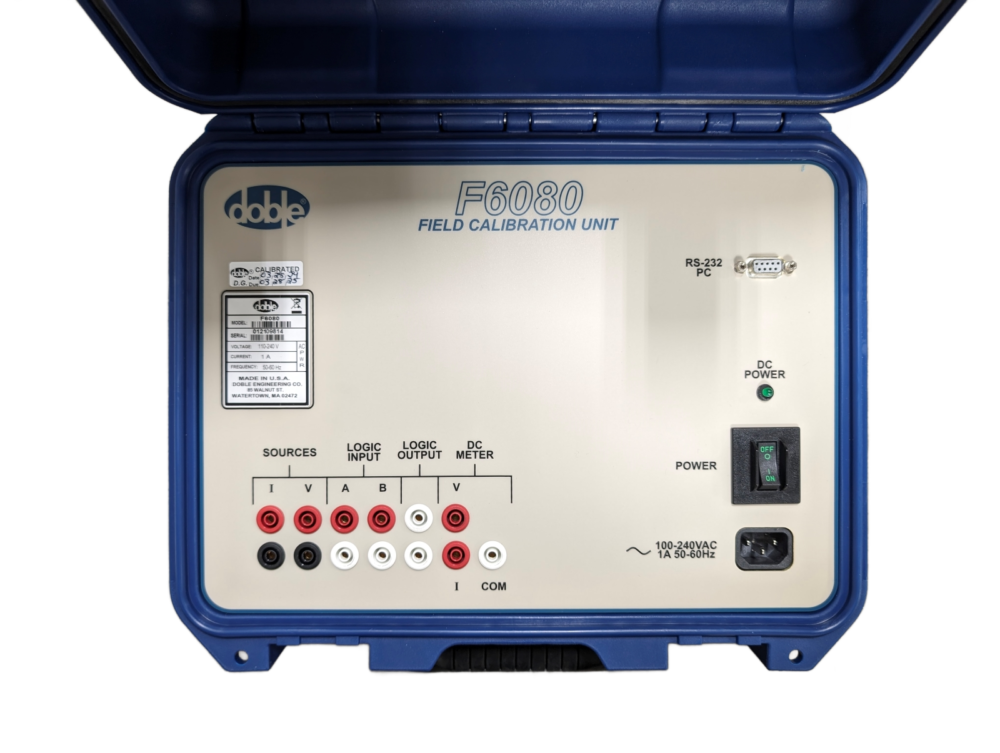

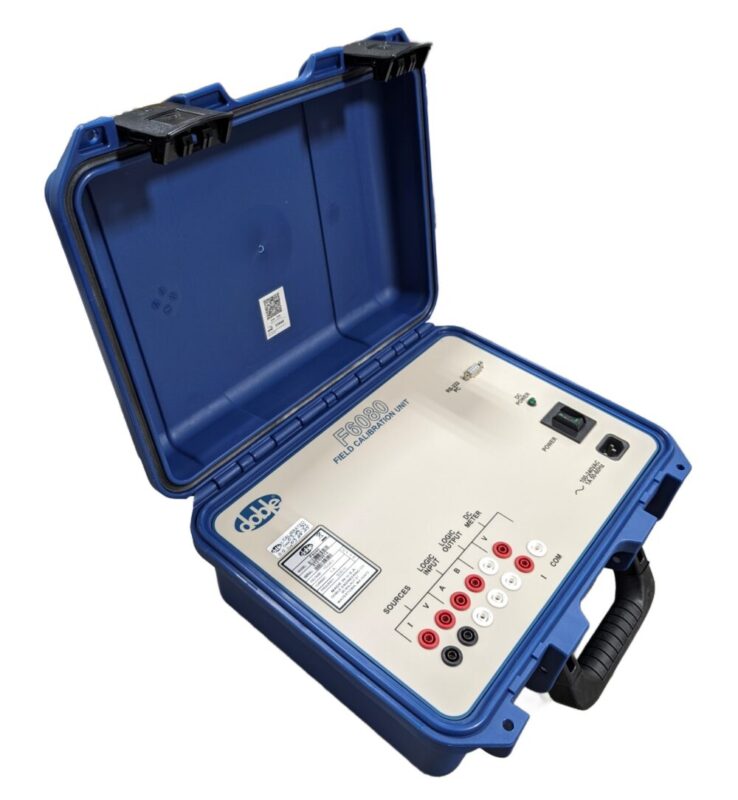

The Doble F6080 is a field calibration unit designed to calibrate Doble Power System Simulators in the field. This eliminates the need to send the simulators back to a lab for calibration, which can save time and money. The F6080 can calibrate voltage and current sources, as well as logic inputs and outputs. It also generates calibration reports for your records.
Here are some of the key features of the Doble F6080:
- Automatic recalibration of voltage and current sources for all ranges
- Checks and calibrates logic inputs and outputs
- Contains high accuracy shunts and crystals needed for source calibration
- Generates a calibration report for your records
- Voltage and current measurement accuracy of ±0.02%
Here are the specifications of the Doble F6080:
- Dimensions: 14.2 x 11.4 x 6.5 in (36.1 x 29.0 x 16.5 cm)
- Weight: 8.52 lb (3.87 kg)
- Power Supply: 100–240 V, 50/60 Hz
- Interfaces: RS-232 control to computer
- Operating Temperature: 20°C to 30°C (68°F to 86°F)
- Storage Temperature: -25°C to 70°C ( -13°F to 158°F)
- Humidity: Up to 95% relative humidity, non-condensing
- Warmup Time: 30 minutes
- Voltage/Current Measurement Accuracy: ±0.02%
- Frequency Measurement Accuracy: ±0.2 ppm
