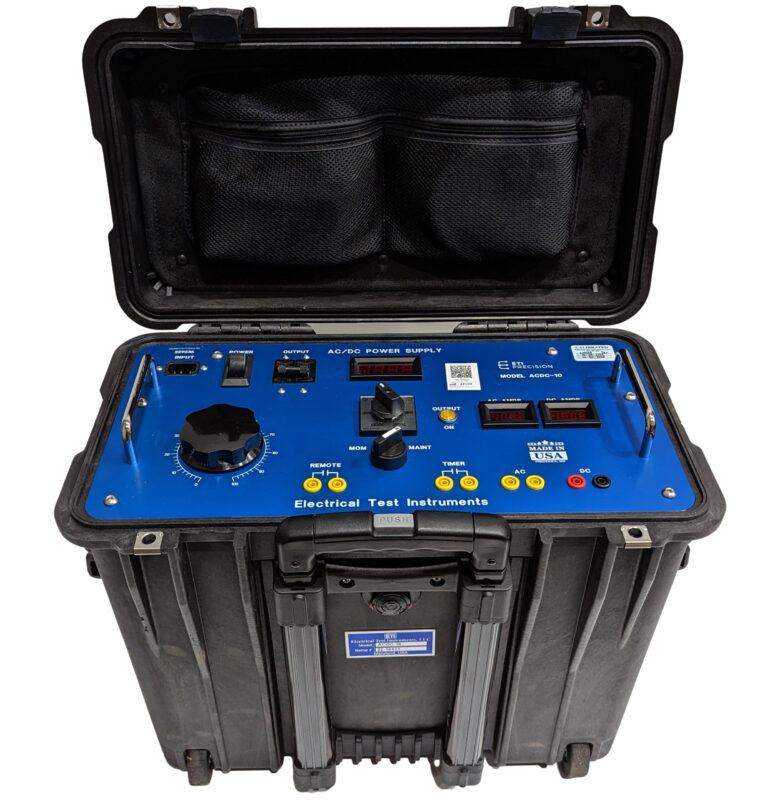

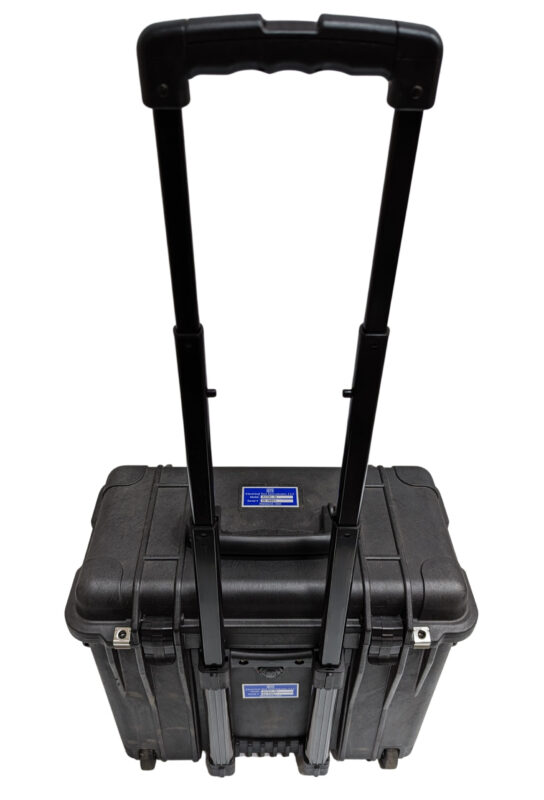

The ETI Precision Model ACDC-10 is a portable, rugged, and intuitive 10-amp AC and DC variable power supply for resetting circuit breakers, charging motors, and other general-purpose applications. It is housed in a rugged plastic enclosure approximately 20” x 11” x 18” and weighs less than 65 lbs.
The ACDC-10 features the following specifications:
Specifications:
Features:
Useful Tips:
Resources:
Specifications:
- Input: 105-130 VAC, 50/60 Hz, 1.2 kVA nominal (10 amperes)
- Outputs:
- AC: 0-140V at 7.2 A continuous, 0-280V at 3.6 A continuous, 0-560V at 1.8 A continuous
- DC: 0-120V at 7.2 A continuous (filtered), 0-240V at 3.6 A continuous
- Regulation: 11% on AC outputs at 1.0 kVA
- Ripple: <2% on 120V DC range
Features:
- Independent AC and DC ammeters with improved accuracy
- An upgraded standard IEC power cord
- Filtering on the 120V DC range
- Safety banana jacks for unit outputs
- Improved voltmeter accuracy
Useful Tips:
Here are some specific examples of how the ACDC-10 can be used:
- Resetting circuit breakers
- Charging motors
- Testing electrical equipment
- Powering tools and appliances
- Performing maintenance and troubleshooting
Resources:
The ACDC-10 is a versatile and powerful power supply that is ideal for a wide range of applications. It is easy to use and provides accurate and reliable results.
