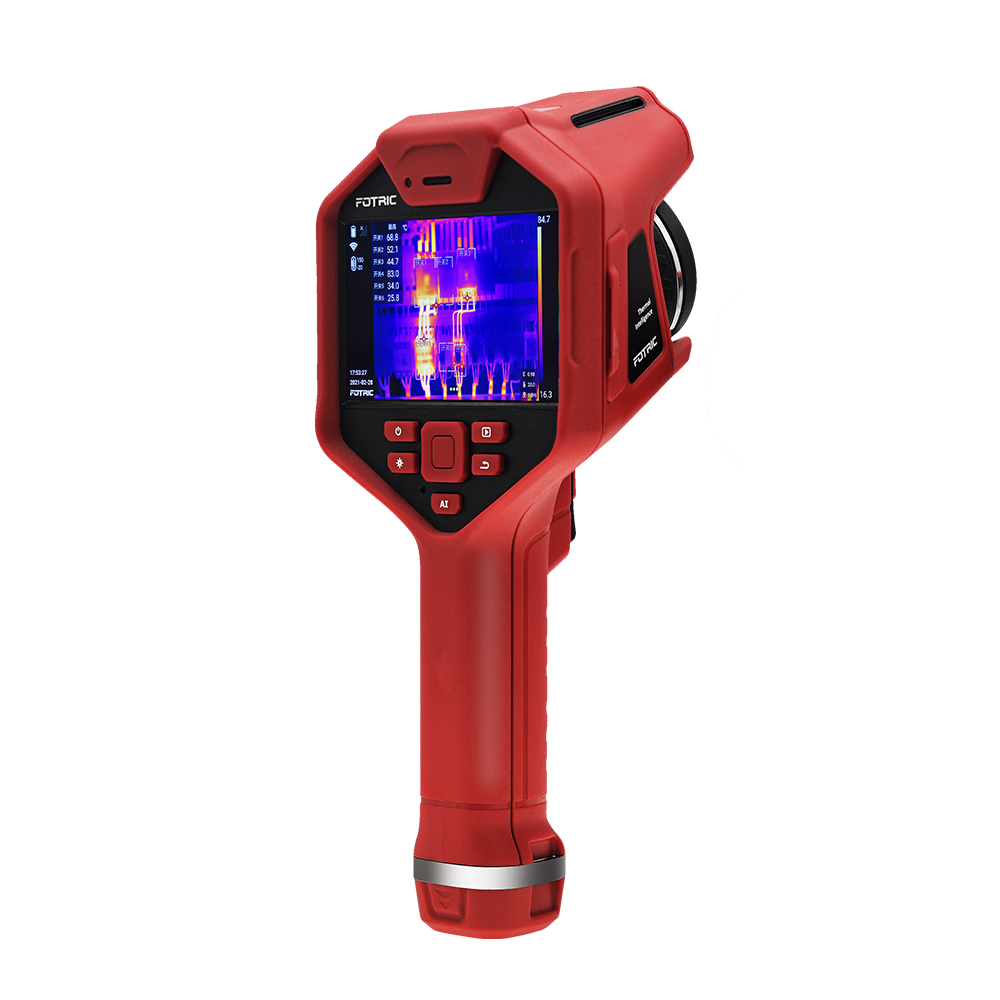

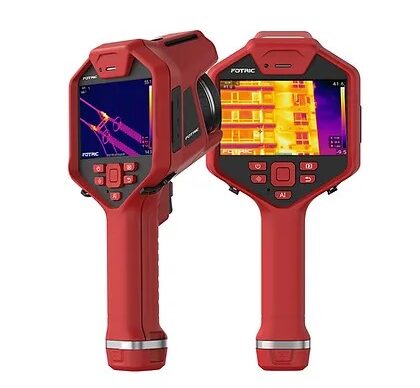

The FOTRIC 340-Series is a line of advanced industrial thermal cameras designed for professionals who need a high-performance tool for maintenance inspections in a variety of industries, including electrical, oil and gas, and manufacturing. These cameras come in five different models: 348A, 347A, 346A, 345A, and 345M .
Key Features:
Characteristics:
Additional Features:
Key Points:
Key Features:
- Up to 640×480 IR resolution
- 30 mK NETDÂ (Noise Equivalent Temperature Difference) for superior image clarity
- 30 Hz image update rate for capturing fast-moving thermal events
- 5-inch LCD touchscreen display for easy viewing and operation
- Laser-assisted autofocus for precise focusing on targets

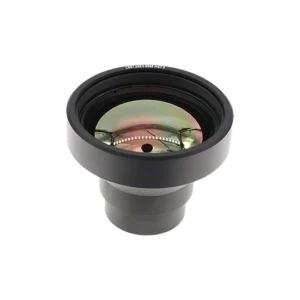

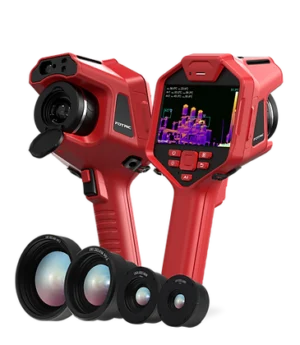

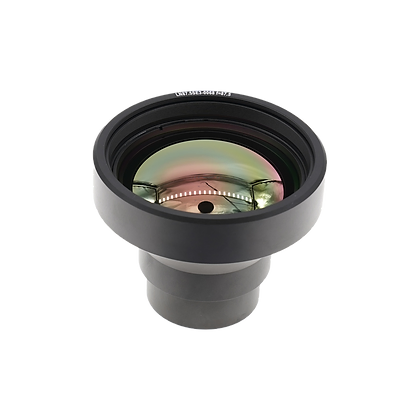

- Interchangeable lens options for adapting the camera to different applications
- Powerful AnalyzIR reporting software for creating professional inspection reports
Characteristics:
- Industrial-Grade Performance:
- These cameras are built for use in demanding environments like electrical, oil and gas, and manufacturing.
- These cameras are built for use in demanding environments like electrical, oil and gas, and manufacturing.
- High-Resolution Imaging:
- They offer high IR resolution, with models reaching up to 640×480 pixels, providing detailed thermal images.
- They have very good thermal sensitivity, which means that they can detect very small temperature differences.
- Advanced Features:
- Laser-assisted autofocus for precise targeting.
- Interchangeable lens options to adapt to various inspection needs.
- Powerful AnalyzIR software for in-depth data analysis and reporting.
- They have features like TWB (thermal white balance) and IRedge, that increase the clarity of the thermal images.
- Applications:
- Electrical inspections: Detecting hot spots and potential failures.
- Mechanical inspections: Identifying overheating components and wear.
- Building inspections: Locating heat loss, leaks, and insulation issues.
- They are also used in metallurgy, and in solar panel inspection
Additional Features:
- The 348A and 347A models have the highest resolution (480 x 360) and a wider temperature range (up to 1550°C), making them ideal for demanding applications such as high-temperature furnace inspections.
- The 346A and 345A models have a slightly lower resolution (320 x 240) but are still well-suited for most industrial applications.
- The 345M model is the most affordable option in the series and is a good choice for basic inspections. It has a built-in visible light camera that can be used to capture images alongside the thermal images.
Key Points:
- The FOTRIC 340-Series aims to provide professionals with accurate and reliable thermal imaging for predictive and preventative maintenance
- There are variations in models within the 340 series, that have slight differences in specifications, to better serve different use cases.
