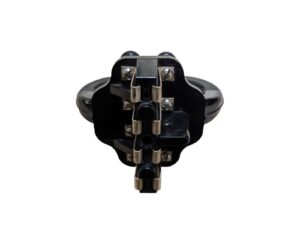

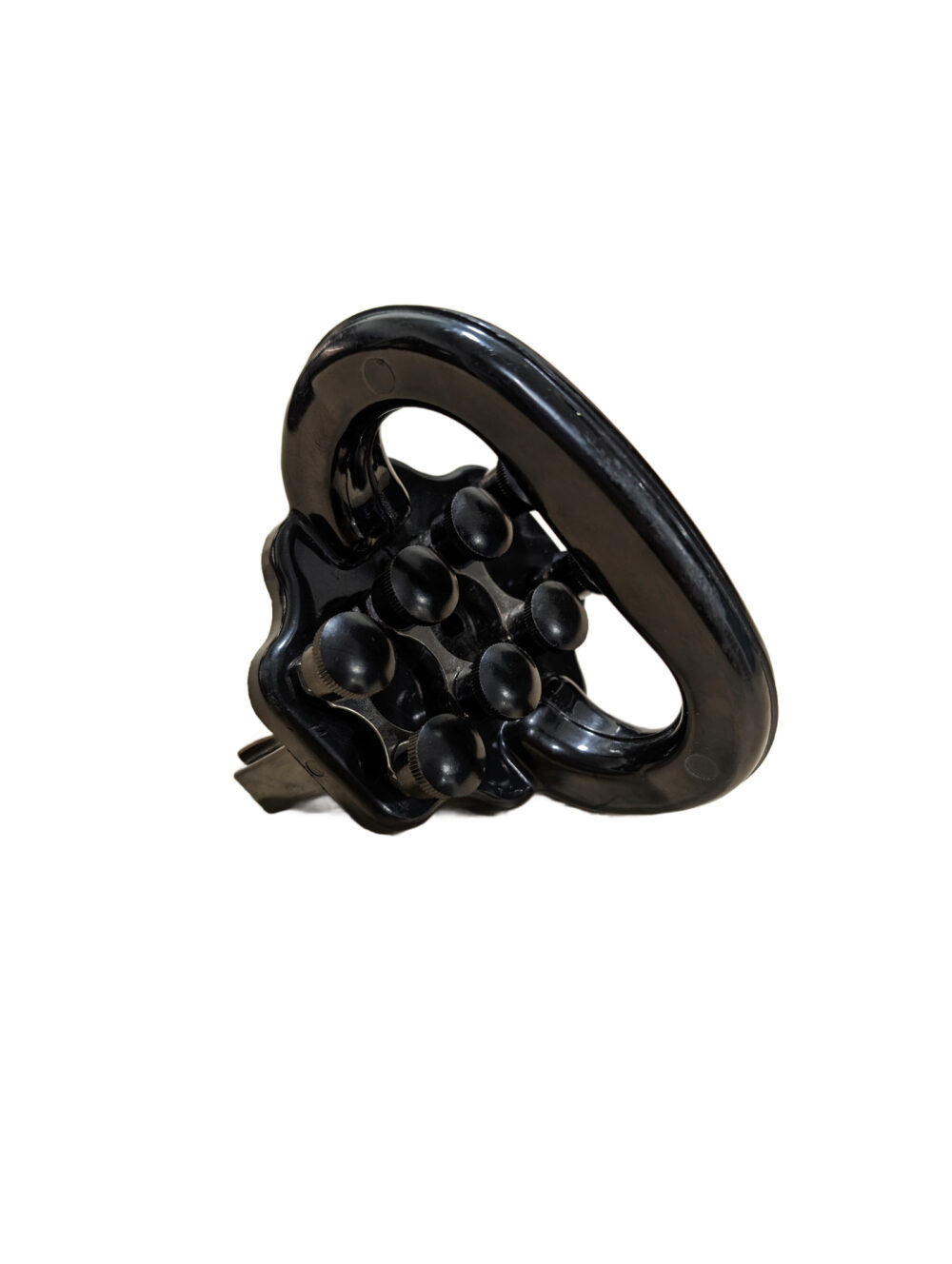

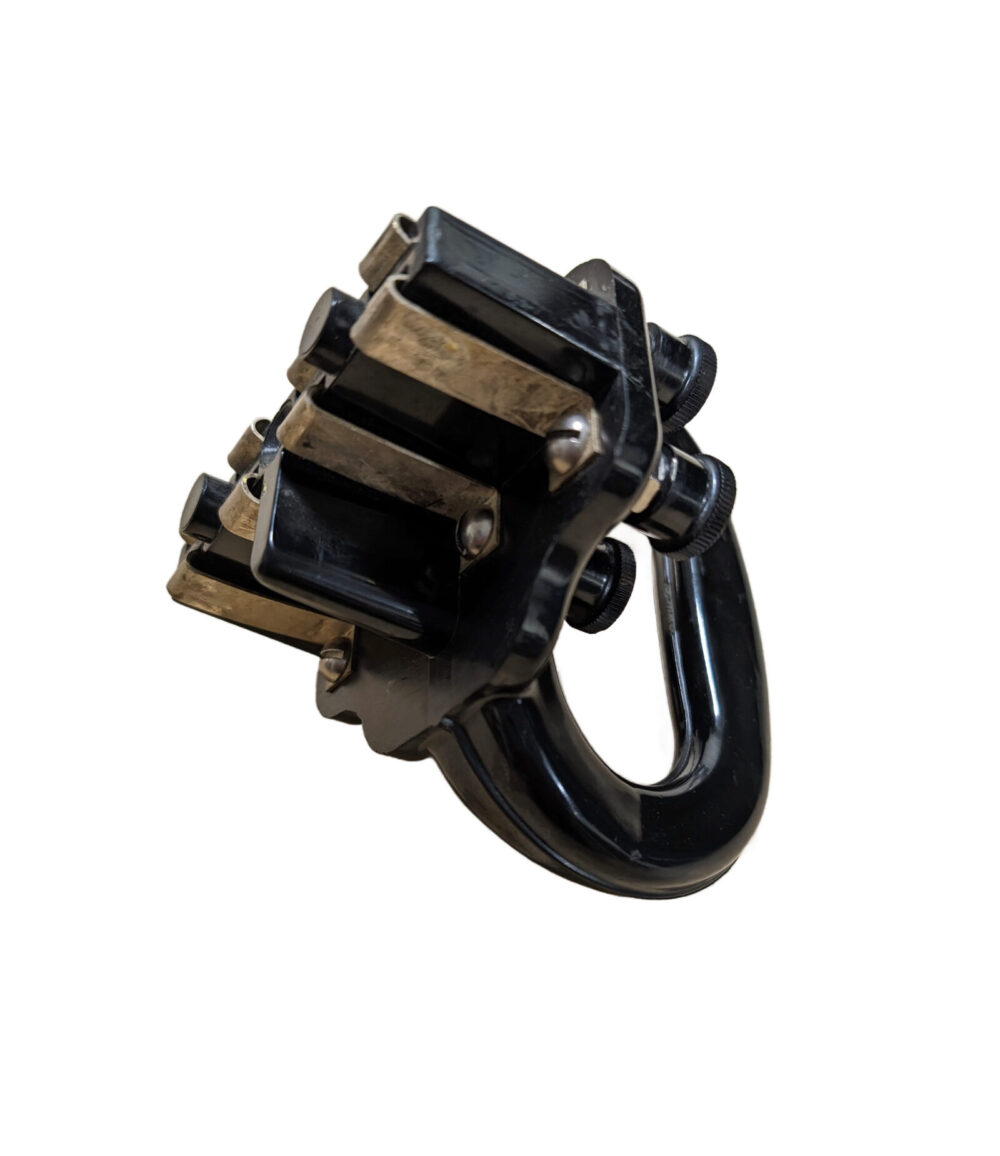

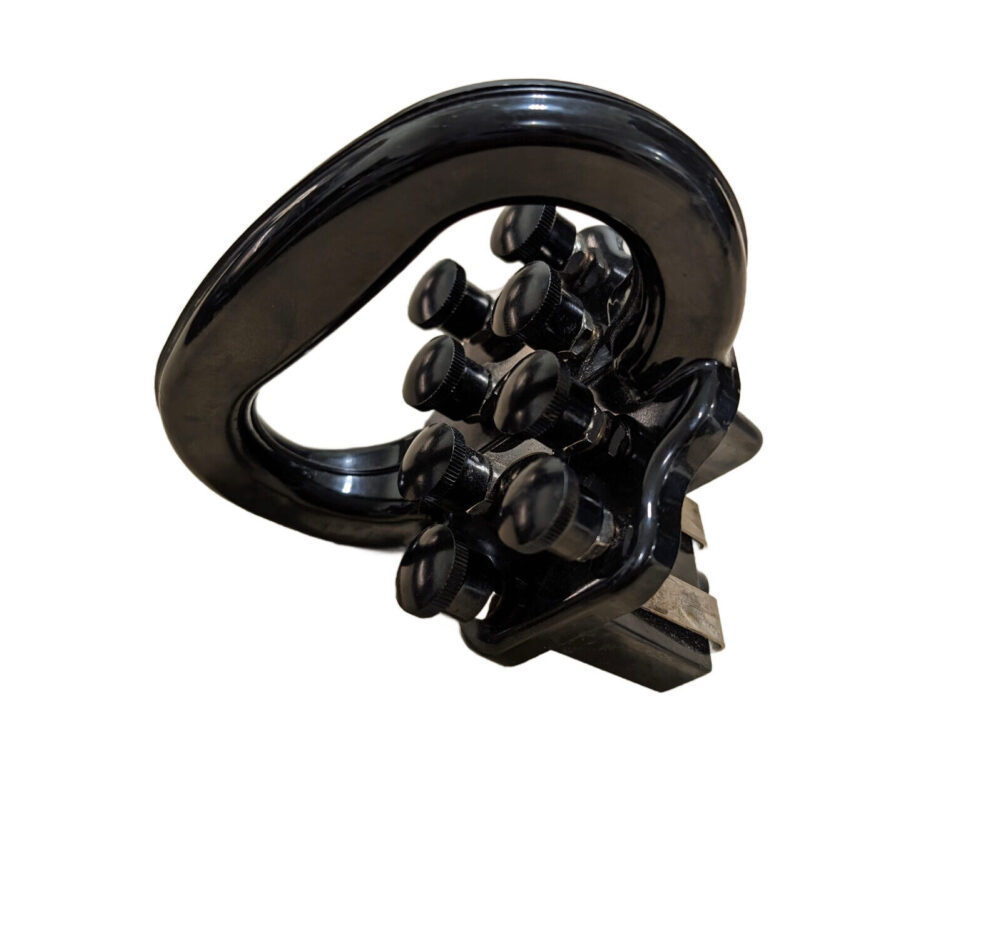

The GE P1 Type Pk-2 Test Paddle 678 is a test block and plug set used for testing ac instruments, meters, and relays. It is a 4-pole and 6-pole jack with molded Textolite covers that have internal plug contacts.
This plug makes a through connection when the cover is in place. The contacts in this block are of the line-pressure type and provide positive contact with minimal contact resistance.
Features:
Specifications:
Applications:
Resources:
Features:
- Portable and lightweight
- Easy to use
- Safe and reliable
- Compatible with a variety of GE circuit breakers
- Can perform a variety of tasks, including reading and writing parameters, testing functions, simulating faults, and recording and analyzing data
Specifications:
- 4-pole or 6-pole jack
- Molded Textolite covers with internal plug contacts
- Line-pressure type contacts for positive contact
- Minimal contact resistance
- Auxiliary contacts for automatic short-circuiting of the current transformer
- Mounts on switchboard panels
Applications:
Part Number:Â 6119255
Standards:
- IEC 61010-1
- IEC 61010-2-031
- Used in conjunction with proper test equipment to facilitate the testing of ac instruments, meters and relays
