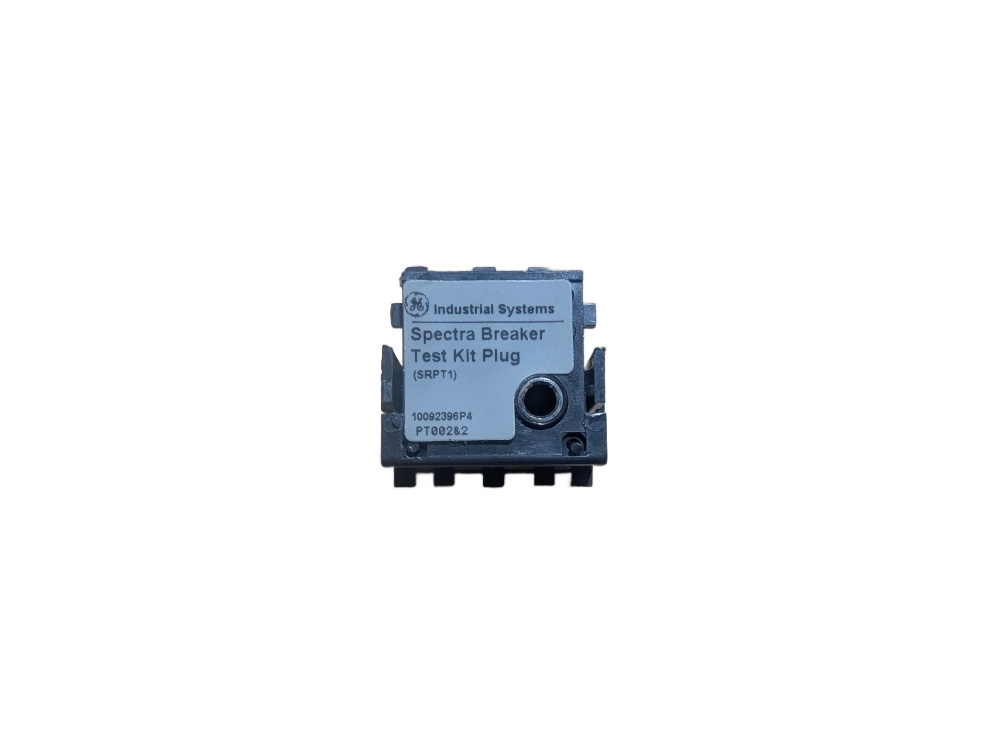

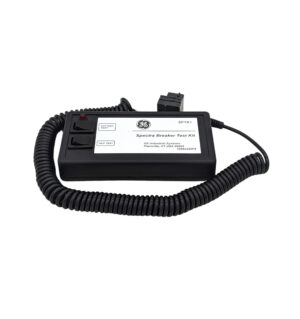

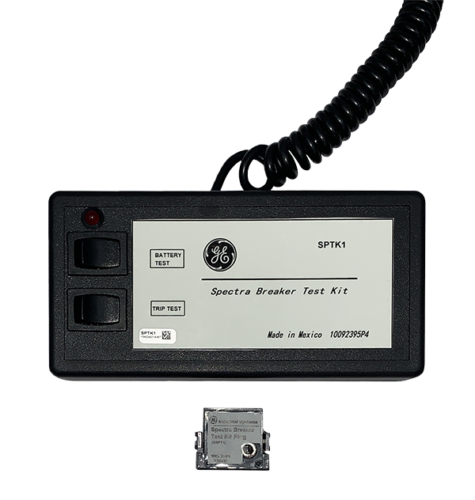

The GE Spectra Breaker Test Kit SPTK1 is a diagnostic tool used to test the functionality of GE Spectra RMS circuit breakers. The kit includes a test plug SRPT1, a power supply, and a test lead. The test plug SRPT1 is inserted into the circuit breaker’s test plug port, and the power supply is connected to the test lead.
The test lead is then connected to a voltmeter or oscilloscope. The test kit can be used to test the circuit breaker’s trip function, its hold function, and its electrical characteristics.
Breakers and Trip units:
Features:
Benefits:
Resources:
Breakers and Trip units:
The GE Spectra Breaker Test Kit SPTK1 is used to test the following types of breakers and trip units:
- Spectra RMS Molded Case Circuit Breakers (E, F, G & K Frame)
- Spectra RMS Circuit Breakers with microEntelliGuard Trip Units
- Spectra RMS Circuit Breakers with EntelliGuard TU Trip Units
Features:
- Tests the trip function, hold function, and electrical characteristics of GE Spectra RMS circuit breakers
- Includes a test plug, a power supply, and a test lead
- Easy to use
- Affordable
Benefits:
- Can help to prevent electrical failures and outages
- Can save time and money by quickly and easily testing the functionality of GE Spectra RMS circuit breakers
- Can help to improve the safety of electrical systems
Resources:
Manual ⇓
