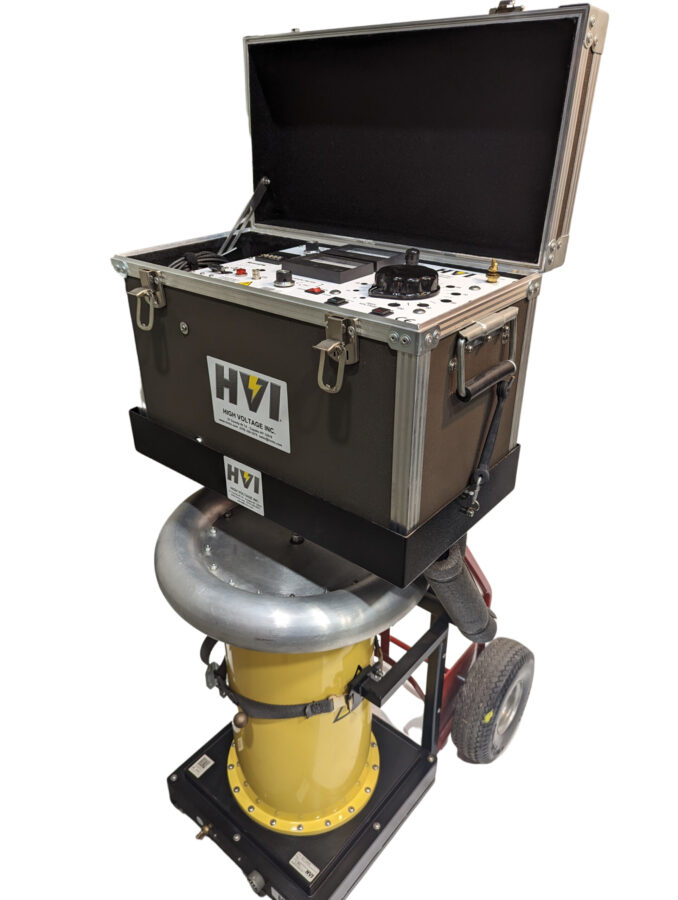

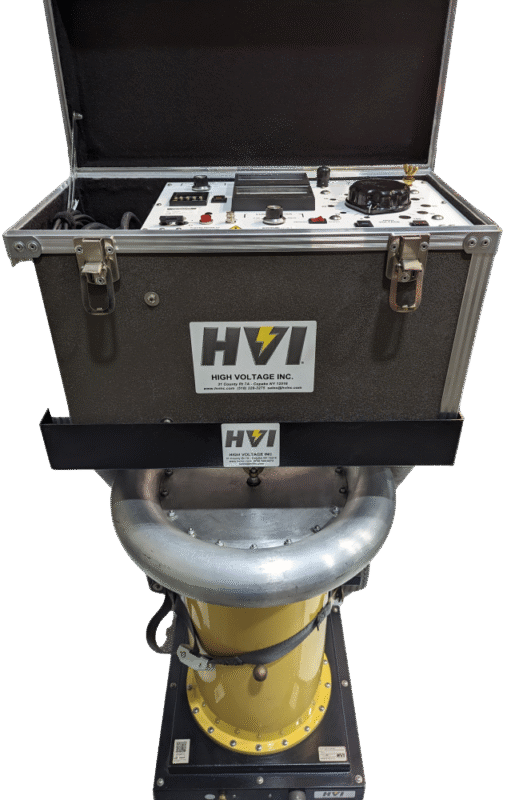

The High Voltage Inc. ALT-120/60 is a portable AC hipot test set designed for testing the dielectric strength of aerial lifts, booms, bucket trucks, and liners, meeting ANSI 92.2 standards. 1 It can also be used for AC over-voltage withstand testing on larger capacitive loads. Key features include a continuously adjustable AC voltage, a 2-range voltmeter, a multi-range current meter, and a built-in timer. It has a gapped core transformer for up to 7.2 kVA of output power. 1
Benefits:
Specifications:
Resources:
Benefits:

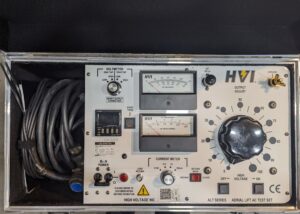

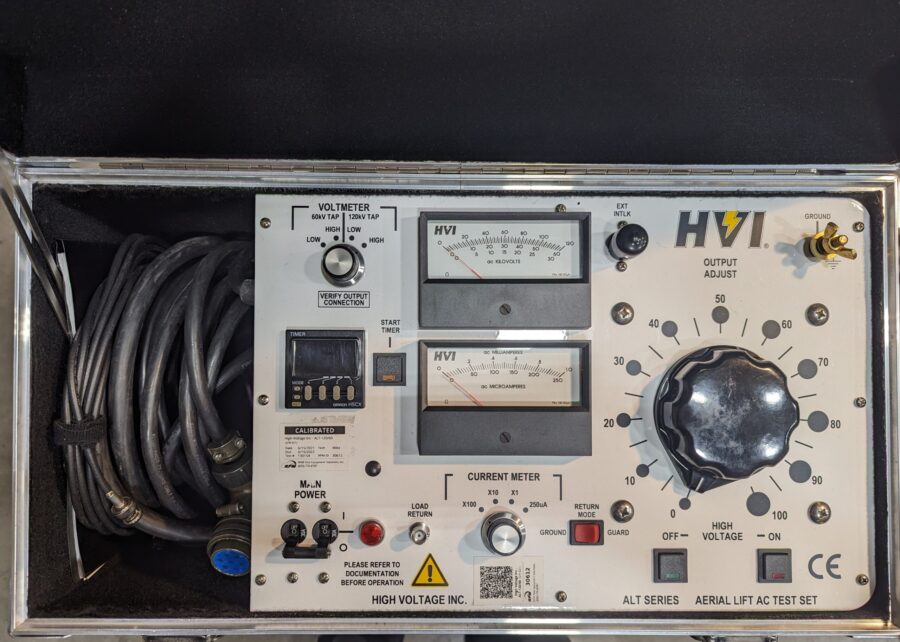

- Secondary connected 2 Range Voltmeter: 0-30/60kV & 0-60/120kV
- 2 Range Current Meter: 0-250uA and 0-1.0mA with x1, x10, x100 multipliers
- Full 7.2 kVA, 60kV tap for bucket liner testing
- Fixed overload set to 120% of variable transformer rated output current
- Transit protected meters prevent meter damage between test sites
- Guard/Ground circuit for accurate leakage current measurement
- Gapped core transformer design for capacitive load compensation
- Zero Start and External safety Interlock provisions
Specifications:
| Input: | (ALT-120/60) 120 V, 60 Hz, 30 A (ALT-120/60F) 230 V, 50/60 Hz, 15 A |
|---|---|
| Output: | 0-120kV AC / 0-60 kV AC, 3.6 kVA resistive load Up to 7.2KVA capacitive load (1.3 nF @ 120kV or 5.3nF @ 60kV, 60 Hz) Output current is reduced at lower voltages |
| Duty: | 7.2 kVA: 1 hour ON, 2 hour OFF 4 kVA: continuous |
| Voltmeter: | 3.5”, scaled 0-30/60kV & 0-60/120kV kV AC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0-250uA and 0-1.0mA ±2% F.S. with rangemultipliers of x1, x10, x100 |
| Distortion: | Less than 5% |
| Size and Weight: (W x D x H) | Case: 21 x 11.25 x 15.25 in., 46 lb. 534 x 286 x 387 mm, 21 kgHV Tank: 15.5 x 15.5 x 27.5 in., 160 lb. 394 x 394 x 699 mm, 73 kg |
| Output Termination | Top toroid (0-120 kV) 1 inch ball side tap (0-60 kV) |
| Scope of Supply | 20ft black ground lead, 20ft shielded return cable, external interlock plug, hand truck, operations manual, calibration certificate |
