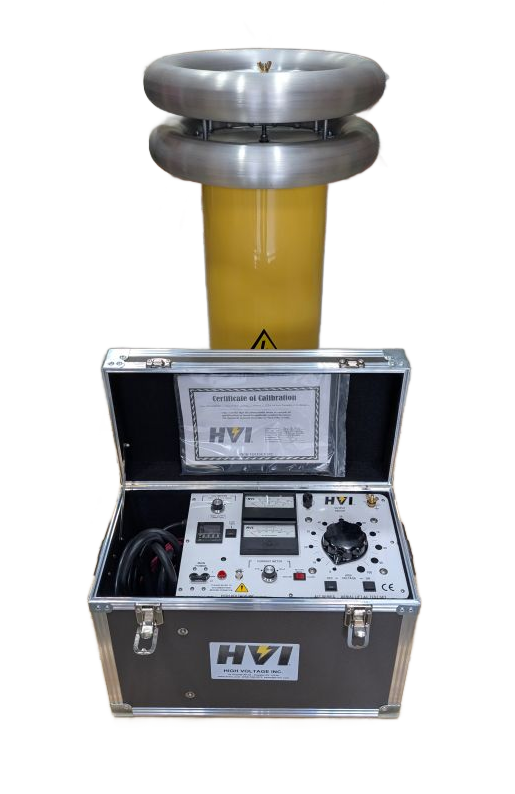

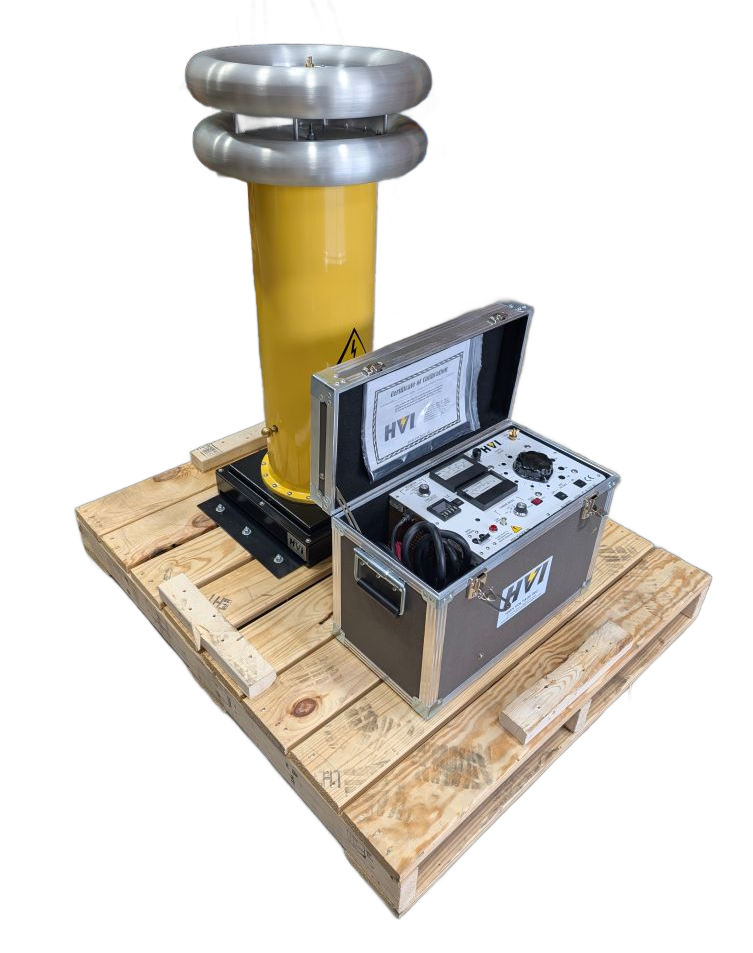

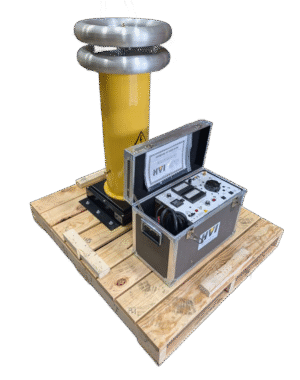

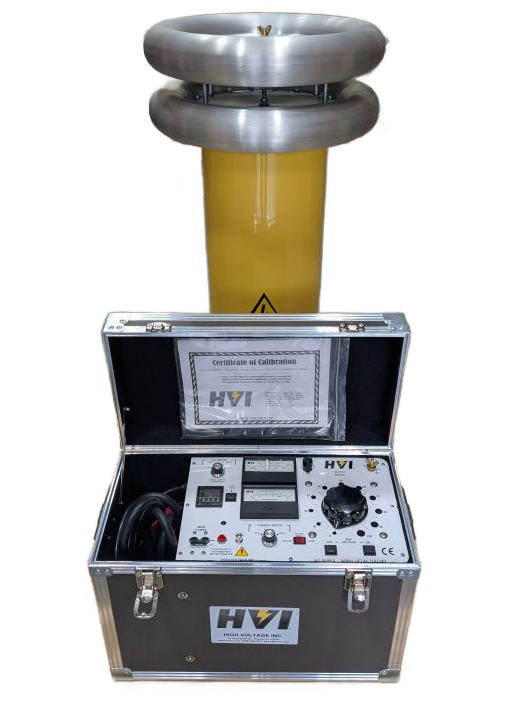

The ALT-210/50 and ALT-210/50F from our ALT Series of field portable AC hipot test sets are primarily designed for testing the dielectric strength of aerial lifts, booms, bucket trucks and liners per the ANSI 92.2 standard
Features:
Specifications:
Resources:
Features:
- Secondary connected 2 Range Voltmeter: 0-20/50kV & 0-80/210kV
- 2 Range Current Meter: 0-250uA and 0-1.0mA with x1, x10, x100 multipliers
- Full 7kVA, 50kV tap for bucket liner testing
- Fixed overload set to 120% of variable transformer rated output current
- Transit protected meters prevent meter damage between test sites
- Guard/Ground circuit for accurate leakage current measurement
- Gapped core transformer design for capacitive load compensation
- Zero Start and External safety Interlock provisions
Specifications:
| Input: | (ALT-210/50) 120 V, 60 Hz, 30 A (ALT-210/50F) 230 V, 50/60 Hz, 15 A |
|---|---|
| Output: | 0-210kV AC / 0-50 kV AC, 3 kVA resistive load Up to 7 KVA capacitive load Output current is reduced at lower voltages |
| Duty: | 7 kVA: 1 hour ON, 2 hour OFF 4 kVA: continuous |
| Voltmeter: | 3.5”, scaled 0-20/50kV & 0-80/210kV AC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0-250uA and 0-1.0mA ±2% F.S. with range multipliers of x1, x10, x100 |
| Distortion | Less than 5% |

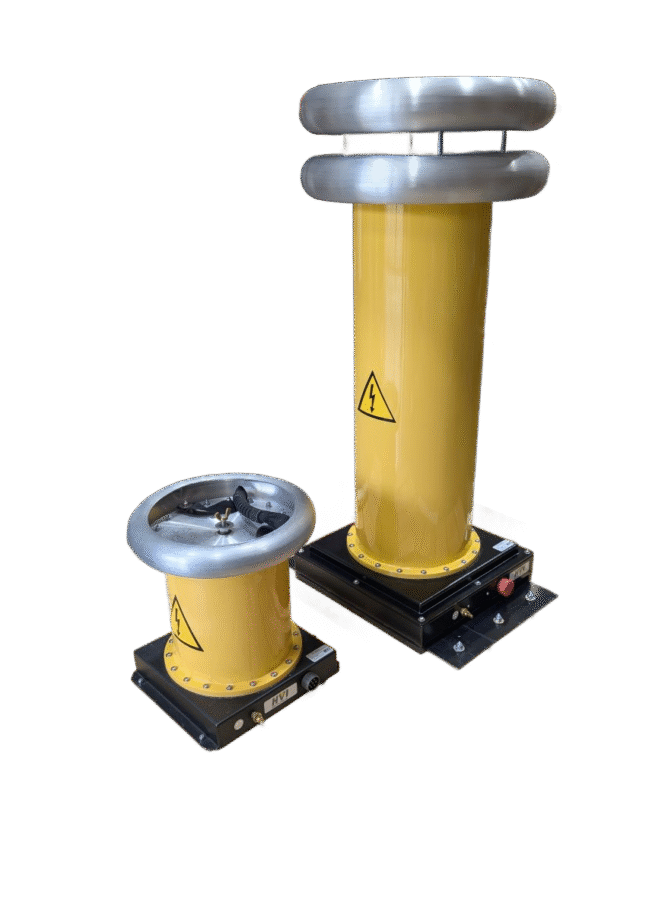

| Size & Weight (W x D x H) | Control: 21 x 11.5 x 15.5 in., 59 lb. 533 x 292 x 394 mm, 27 kg HV Tank: 15.5 x 15.5 x 37.5 in., 240 lb. 394 x 394 x 953 mm, 109 kg |
| Output Termination | Top toroid (0-210 kV) 1 inch ball side tap (0-50 kV) |
| Scope of Supply | 20ft black ground lead, 20ft shielded return cable, external interlock plug, operations manual, calibration certificate |
Resources:
Manual ⇓
