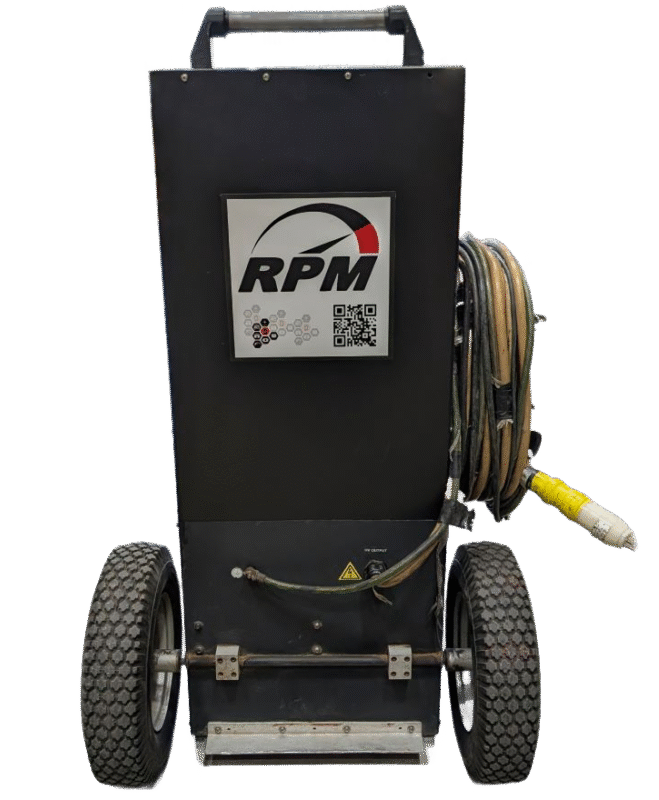

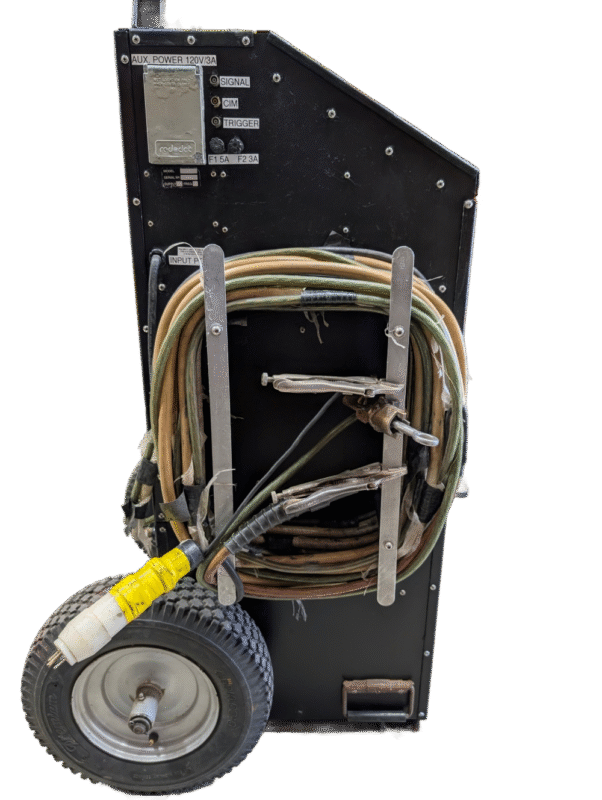

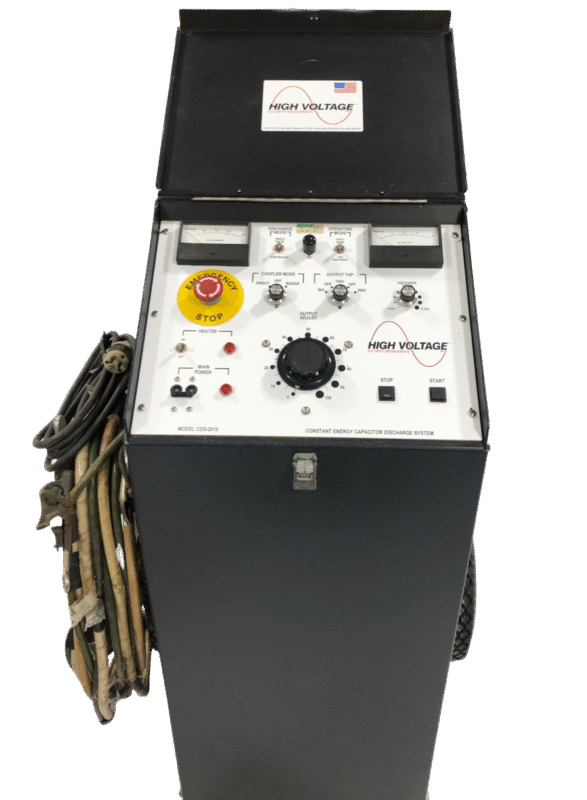

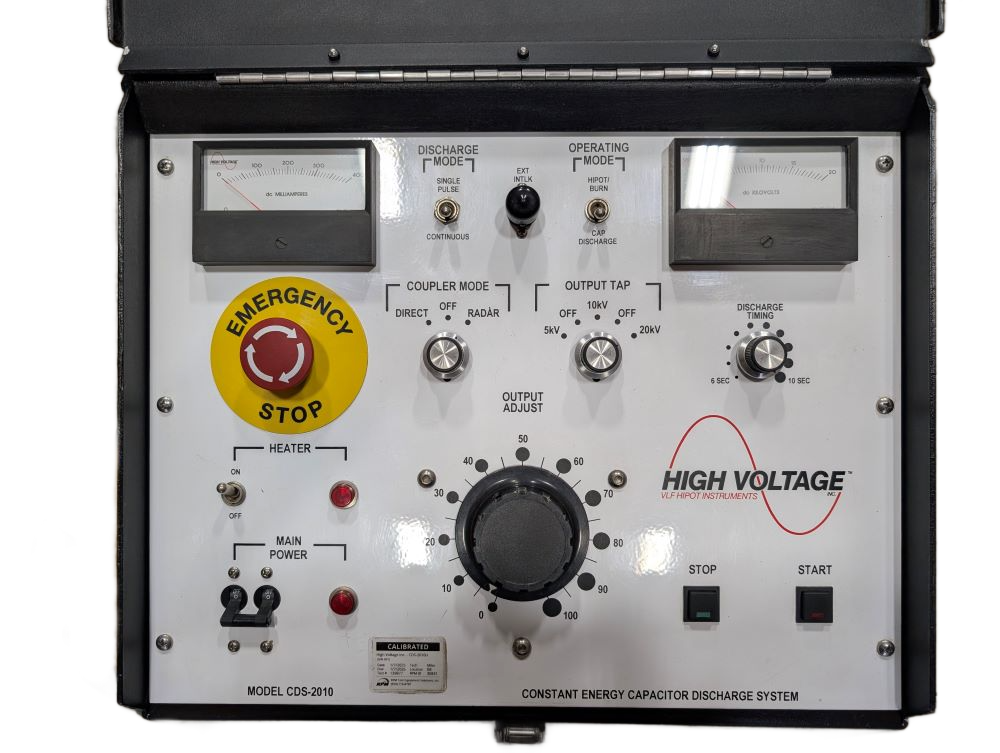

The High Voltage Inc. CDS-2010 is a cable fault locator and thumper designed for locating faults on cable systems rated up to 35kV. It is a powerful and versatile tool that can be used to find faults in a variety of cables, including underground, overhead, and submarine cables.
Accessories used with the CDS-2010 fault locator thumper are TDR-1670 Reflection Radar and Aqua-Tronics S.D.A.D
Features:
Applications:
Resources:
Features:
- Output voltages of 0 to 5, 10, and 20 kV
- 1000 joules of energy at all three output voltages
- 400 mA of burn current
- Built-in high voltage coupler
- TDR/cable radar ready
- EPR high voltage output cable that stays flexible in cold weather
- Rugged and portable design
Applications:
- Locating faults in underground, overhead, and submarine cable systems rated up to 35kV.
- Proof testing and hipot testing of cables after repair.
- Conditioning high-resistance faults for easier location.
