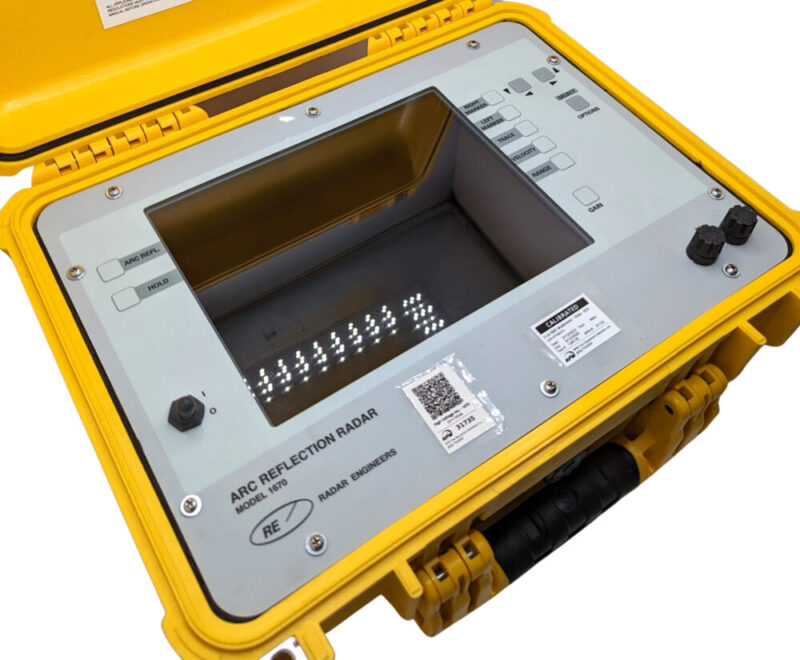

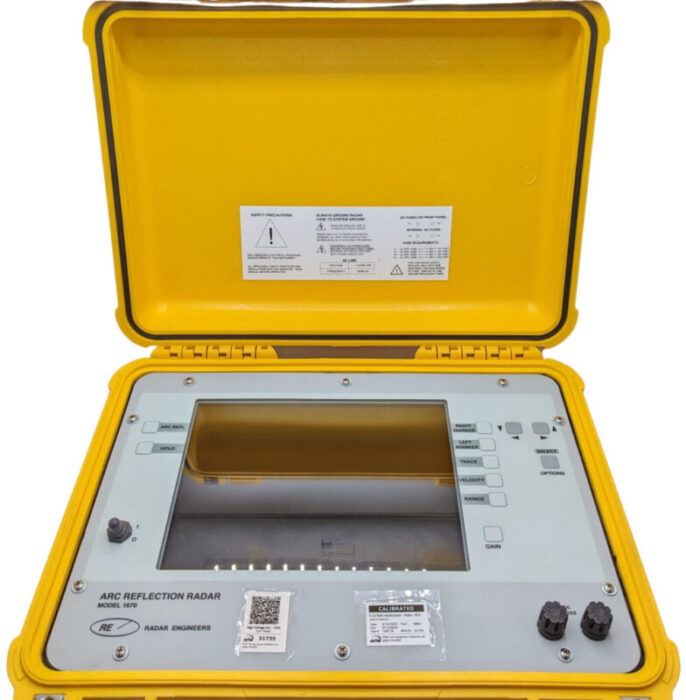

The Radar Engineers TDR-1670 Arc Reflection Radar is a portable, color radar that is used to locate faults in buried primary power cable. It is a digital TDR (Time Domain Reflectometer) that is compatible with most impulse generators. The radar can capture and display the thumper-generated waveform of fault breakdown.
Benefits:
Features:
Specifications:
Resources:
Benefits:
- Also used with Cable fault locator and Thumper (High Voltage Inc. CDS-2010)!
- It can be used to locate faults in buried primary power cable quickly and easily.
- It is accurate and provides reliable results.
- It is easy to use and can be operated by electricians with varying levels of experience.
- It is portable and can be taken to the location of the fault.
Features:
The number of features that make it a valuable tool for locating faults in buried primary power cable. These features include:
- A 10.4″ color display that is sunlight readable
- Automatic distance readout
- No blind zone
- The ability to capture and display the thumper-generated waveform of fault breakdown
- Compatibility with most impulse generators
Specifications:
| Power: | 115/230 V AC, 50/60 Hz |
|---|---|
| Modes: | Arc reflection Current impulse (optional) Direct L 1 3 Ø comparison and difference |
| Display: | 10.5″ diagonal color LCD display, sunlight readable |
| Velocity Factor: | 25.0% – 99.9% |
| Markers: | Two movable vertical markers measure the distance between any two points; distance readout continually updated |
| Resolution: | ≈3 feet or 0.4% of selected range |
| Zoom: | For ranges 3,000 feet and above |
| Memory: | 30 waveform memories |
| Pulse Width: | Automatically increases with range |
| Range: | TDR: 500 – 48,000 feet CI: 1,500 -200,000 feet (metric measurement available) |
| Serial Port: | RS232 port for computer interface |
| Size & Weight: (W x D x H) | 16.25 x 13 x 6.75 in., 15 lb. 41 x 33 x 17 cm, 7 kg |
