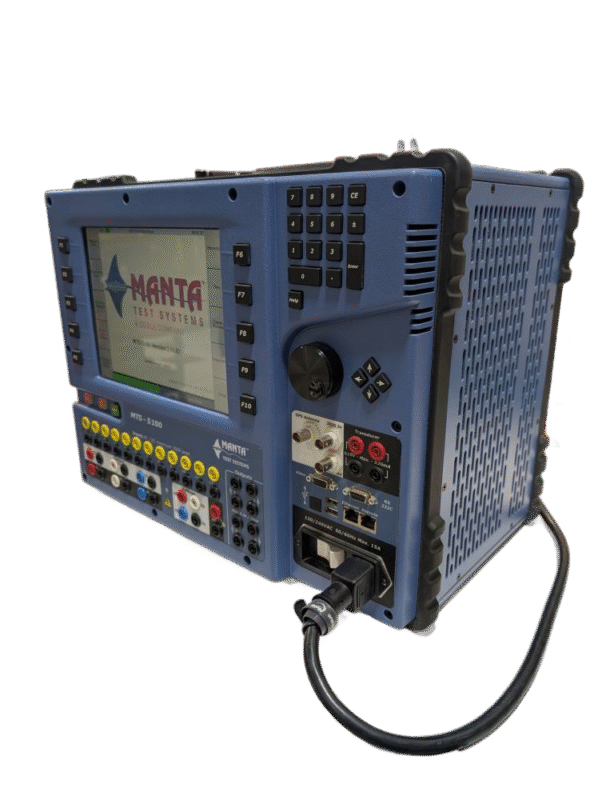

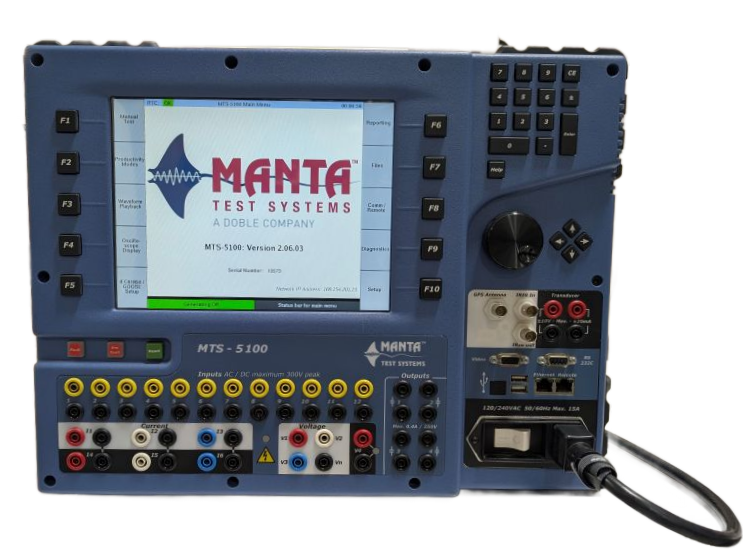

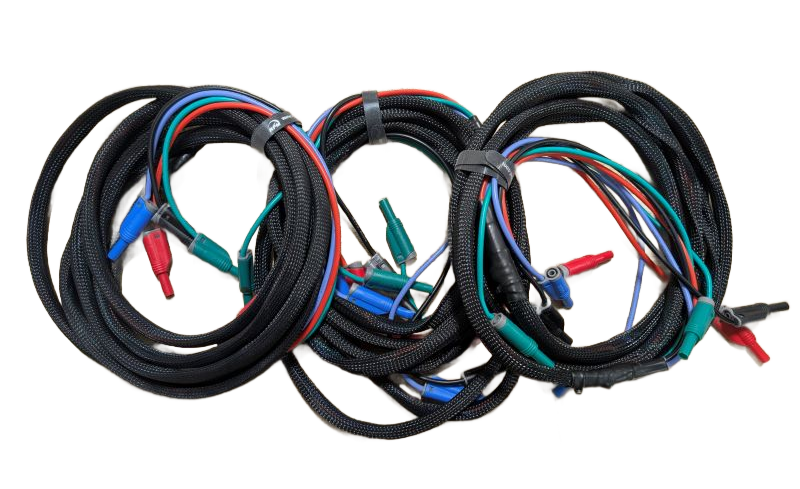

The Manta MTS-5100 is a protective relay test system designed for testing and calibrating various types of protection and control relays, as well as verifying voltage, current, phase, and power transducers. It’s an all-in-one solution widely used in the electrical power industry.
Features:
Benefits:
Applications:
Resources:
Features:
- Large 10.1ā display
- Six AC/DC Currents
- Four AC/DC Voltages
- 12 Contact / 0-250Vrms Voltage inputs
- Four contact outputs
- Transducer voltage/input
- GPS input (antenna included)
- IRIG input, IRIG output
- IEEE 61850 GOOSE messaging
Benefits:
- Protection System Verification: Ensuring the overall protection scheme functions correctly.
- Electrical Maintenance: Regular maintenance and testing of electrical systems.
- Commissioning New Equipment: Verifying the proper operation of new relays and protection systems before putting them into service.
- Transducer Testing and Calibration: Verifies voltage, current, power, VAR, and frequency transducers.
- Meter Testing: Optimized for testing panel meters and the metering capabilities of digital relays.
- Power System Simulation: Can simulate realistic power system phenomena for comprehensive relay testing.
- End-to-End Testing: With GPS synchronization, it facilitates testing of multi-terminal
Applications:
Protective Relay Testing and Calibration: This is its primary function. It can test virtually all types of protection and control relays, including:
- Overcurrent (time and instantaneous)
- Under/Overvoltage
- Directional Overcurrent
- Distance
- Frequency
- Line Differential
- Transformer Differential
- Bus Differential
- Capacitor Protection
- Out-of-step
- Synchrocheck
- Reclosing
- Breaker Failure
- Lockout
- Time-delay, and auxiliary relays
- Generator protection relays (differential, loss-of-field, overexcitation, etc.)
- Motor protection relays
- Arc flash relays
