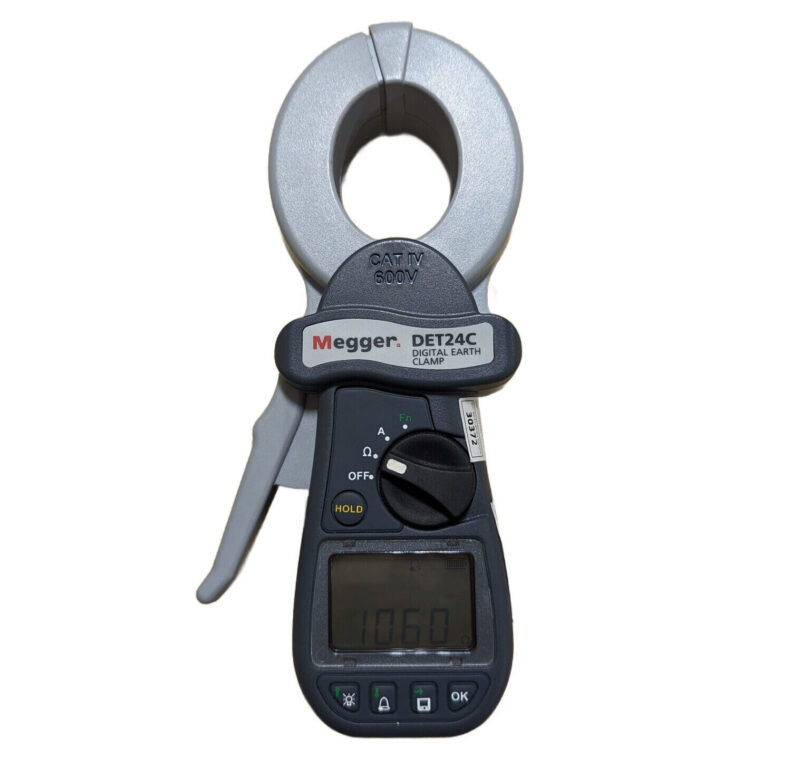

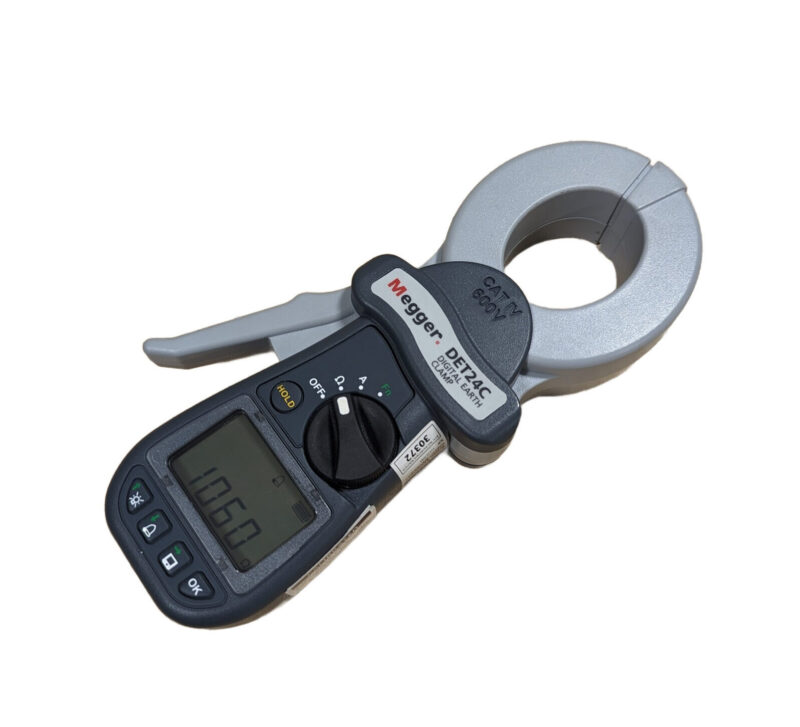

The Megger DET24C is a digital clamp-on ground resistance meter. It is a portable, battery-operated instrument that can be used to measure the resistance of ground rods, grids, and other grounding systems without the need for auxiliary grounding rods. The DET24C simply clamps around the ground conductor or rod and measures the resistance to ground.
Features:
Applications:
Additional Features:
Resources:
Features:
- Clamp-on operation – no leads, no auxiliary rods, or spacing requirements
- Large jaw size (1.45″) – accommodates up to 1000MCM cables
- Auto-Off for power management
- Alarm function with an adjustable setpoint and buzzer for quick field checks
- Memory function to store 99 field measurements for later retrieval and analysis
Applications:
The DET24C is a versatile and easy-to-use ground resistance tester that is well-suited for a wide range of applications, including:
- Electrical maintenance and testing
- Grounding system installation and inspection
- Safety audits and compliance testing
- Research and development
Additional Features:
- CAT IV 600 V safety rating
- Backlit LCD display
- Elliptical clamp shape for improved access to earth cables and straps
- Low maintenance flat jaw interface
- Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
