The Megger MPRT 8430 is a protective relay test set that is used to test a wide range of electromechanical and microprocessor-based protective relays. It can generate a variety of voltage and current waveforms.
Features:
Test:
Standard Accessories (Typically Included):
Applications:
Resources:
Features:
The MPRT 8430 has a number of features that make it a versatile and powerful tool for protective relay testing, including:
- A large color touch screen display
- A built-in library of test routines for popular relays
- The ability to save and recall test results
- The ability to export test results to a PC
- Compliance with IEC 61010 safety standards
Test:
The MPRT 8430 can be used to perform a variety of tests, including:
- Overcurrent protection
- Undervoltage protection
- Overvoltage protection
- Ground fault protection
- Directional protection
- Phase sequence protection
- Frequency protection
- Timer protection
- Analogue input protection
- IEC 61850 protection
Standard Accessories (Typically Included):
These are usually included with the base MPRT 8430 unit:
- Power Cord: For connecting to the mains supply.
- Instruction Manual: Provides guidance on operation and maintenance.

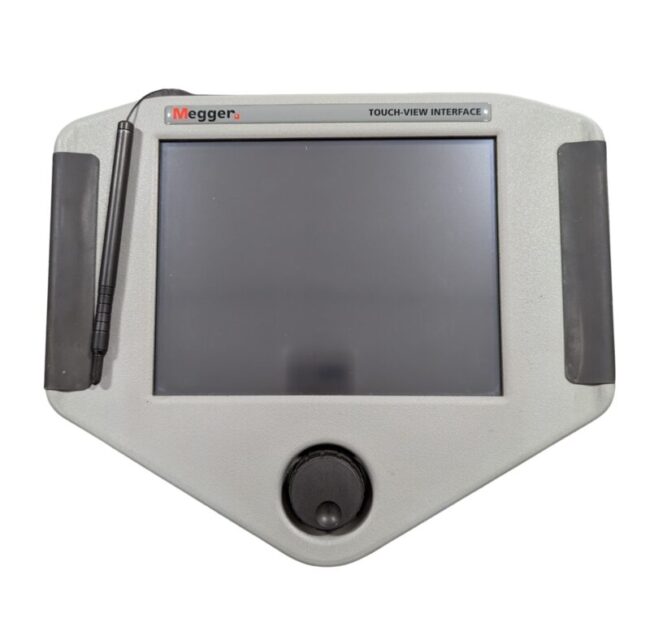

- Cable Assembly, Hand-Held Controller (TVI Cable): Connects the TouchView Interface (TVI) to the Power Box.
- RS-232 Cable: For serial communication.
- Ethernet Crossover Cable: For network communication.
- Test Leads: A set of red and black test leads of various lengths (e.g., 200 cm) for voltage, current (up to 15A), and timer connections.
- Lug Adapters: Red and black lug adapters of different sizes (e.g., 6.2 mm, 4.1 mm) for use with voltage outputs and timers.
- Alligator Clips: Red and black alligator clips for use with voltage outputs and timers.
- Carry Strap: For portability
Applications:
Here are some of the applications of the Megger MPRT 8430:
- Testing of protective relays
- Commissioning of new electrical systems
- Maintenance of existing electrical systems
- Compliance testing
- Education and training
