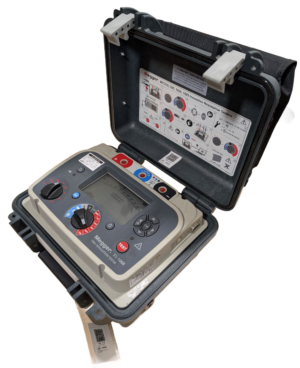

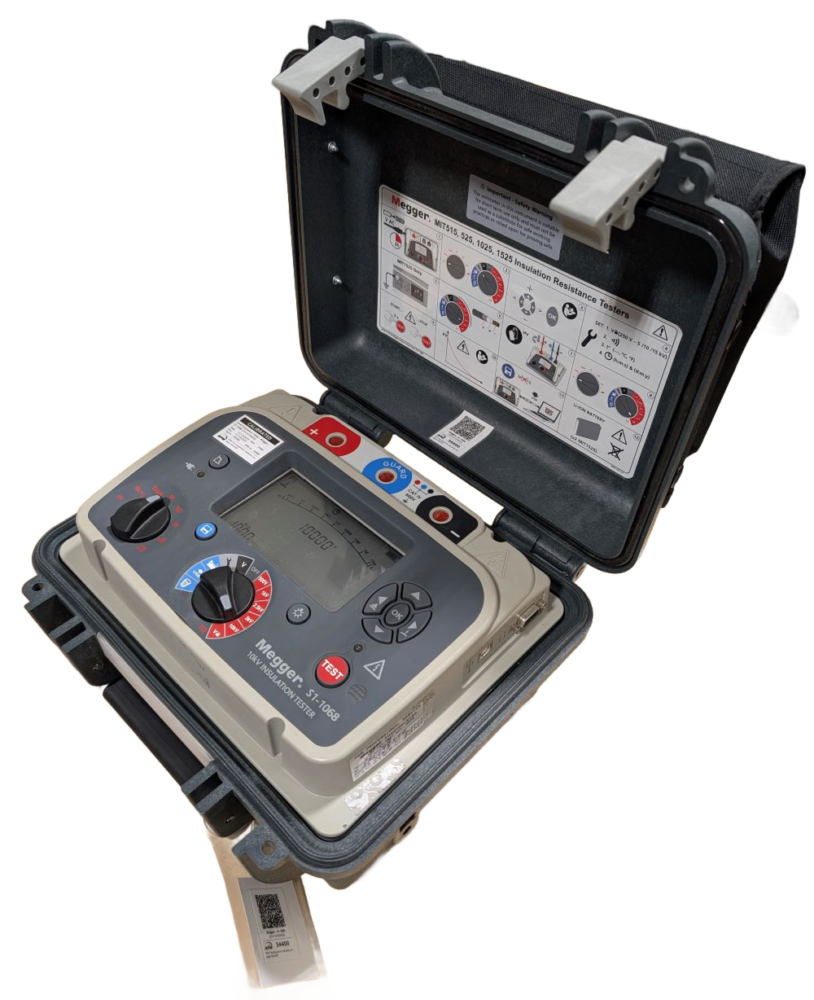

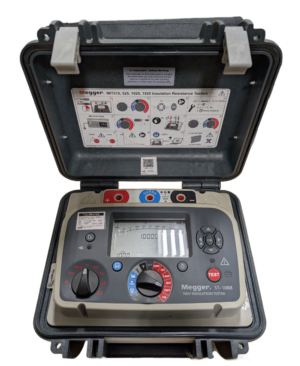

The Megger S1-1068 is a high-voltage insulation resistance tester, also known as a megohmmeter. It’s a crucial tool for assessing the condition of electrical insulation in various applications.
The Megger S1-1068 is a high-voltage insulation resistance tester used to measure the quality of electrical insulation in various equipment, such as:
Testing:
Key Features:
Benefits:
Typical Test Procedures:
Resources:
Testing:
- High-voltage power cables:Â Testing the insulation between the conductor and the cable jacket.
- Switchgear and transformers:Â Assessing the condition of insulation in these critical components.
- Motors and generators:Â Checking the insulation of windings and other components.
Key Features:
- High Voltage: Capable of applying test voltages up to 10kV.
- Accuracy:Â Provides accurate measurements of insulation resistance.
- Portability:Â Relatively compact and portable for field testing.
- Data Logging:Â Some models offer data logging capabilities for recording test results.
- Safety Features:Â Incorporates safety features to protect the user from high voltage.
Benefits:
- Predictive maintenance:Â Helps identify potential insulation problems before they lead to equipment failure.
- Improved reliability:Â Ensures the safe and reliable operation of electrical equipment.
- Reduced downtime:Â Minimizes equipment downtime due to unexpected failures.
- Cost savings:Â Prevents costly repairs and replacements.
Typical Test Procedures:
- Prepare the equipment: Connect the Megger S1-1068 to the equipment under test according to the manufacturer’s instructions.
- Apply test voltage:Â Set the desired test voltage and apply it to the equipment.
- Measure resistance: The Megger S1-1068 measures the insulation resistance of the equipment.
- Analyze results: Compare the measured resistance value to the acceptable limits specified in relevant standards or manufacturer’s guidelines.
