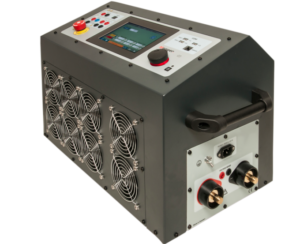

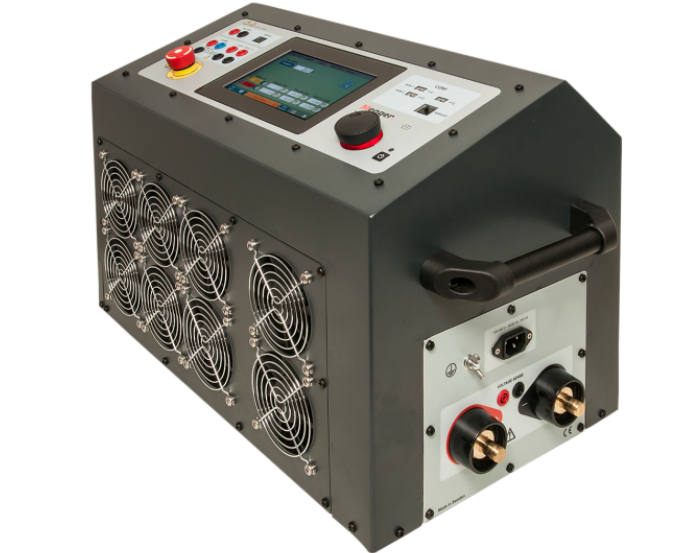

The Megger TORKEL 930 is a battery discharge test system designed for testing batteries between 12V and 300V, offering a 220A maximum discharge current, and features constant current, power, or resistance discharge options, along with real-time monitoring and data analysis capabilities
General:
Load Section:
Other Features:
Models:
Resources:
Video:
General:
- Purpose:Â Battery discharge testing to determine actual battery capacity.
- Battery Voltage Range:Â 12V to 300V.
- Maximum Discharge Current:Â 220A.
- Discharge Modes:Â Constant current, constant power, constant resistance, or pre-selected load profile.
- Safety Features:Â Spark-free connections, emergency safety fuse, and blocked airflow detection.
- Data Transfer:Â Simple transfer to computer via USB memory stick.
- Display:Â 7″ LCD, capacitive touch screen.
- Available Languages:Â Czech, English, French, German, Romanian, Russian, Spanish, Swedish.
- Dimensions:Â 519 x 315 x 375 mm (20.5″ x 12.4″ x 14.7″).
- Weight:Â 19.5 kg (43.0 lbs) instrument.

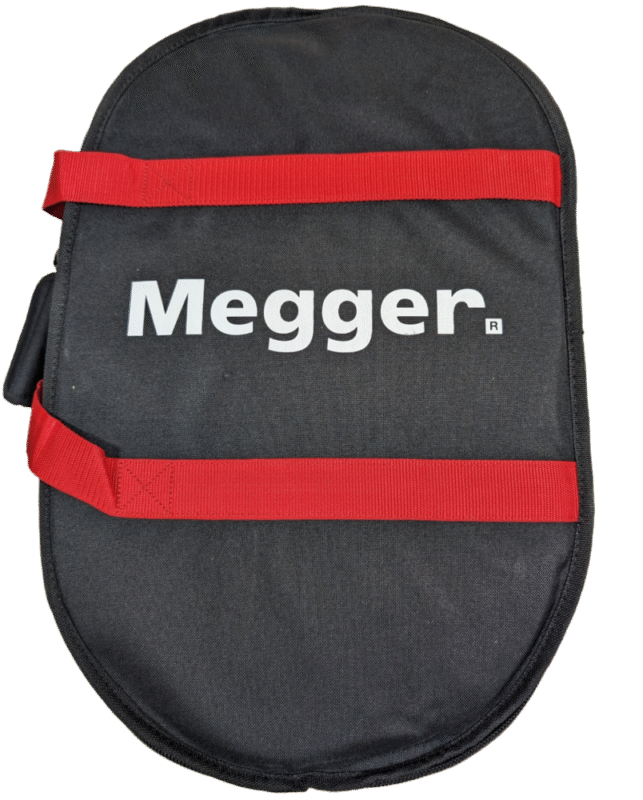

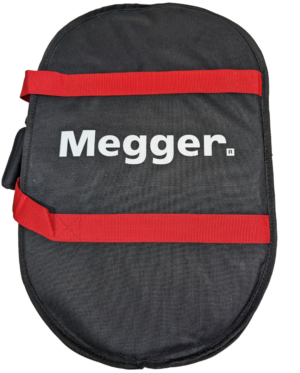

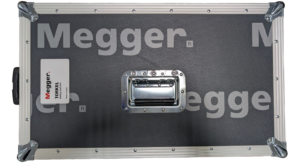

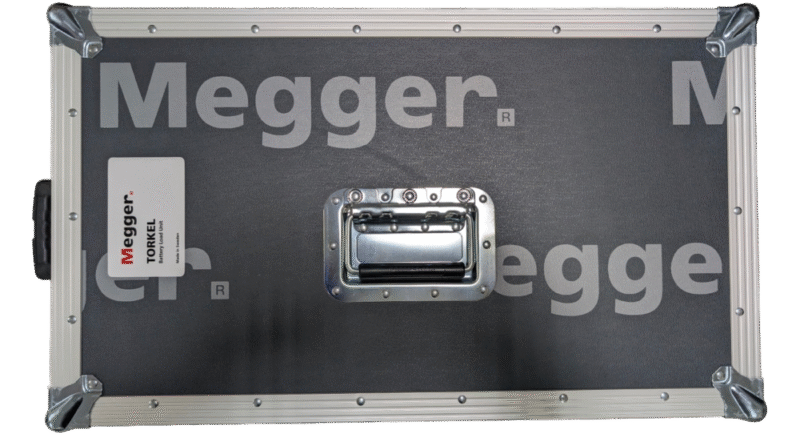

- Weight with Transport Case:Â 31.9 kg (70.3 lbs).
- Weight with Large Transport Case:Â 39.2 kg (86.4 lbs
Load Section:
- Battery Voltage:Â 7.5 V to 300 V.
- Power:Â 15 kW (max).
- Constant I Range:Â 0 to 220.0 A.
- Constant R Range: 300 mΩ to 3 kΩ.
- Constant P Range:Â 0 to 15 kW
Other Features:
- Dynamic Discharge Technology:Â Provides full power at all voltages.
- Real-time Monitoring:Â During the test.
- BVM Functionality:Â Cell voltage monitoring.
- Data Analysis:Â With TORKEL Viewer software.
- Expandability:Â Easily expandable for larger battery banks using TXL extra load units.
Models:
Available in three models:
- Torkel 910:Â Up to 50 A discharge current and 250 V discharge voltage.
- Torkel 930:Â Up to 100 A discharge current and 500 V discharge voltage.
- Torkel 950:Â Up to 220 A discharge current and 600 V discharge voltage.
