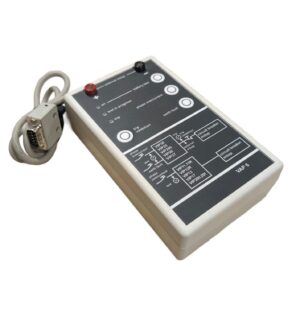

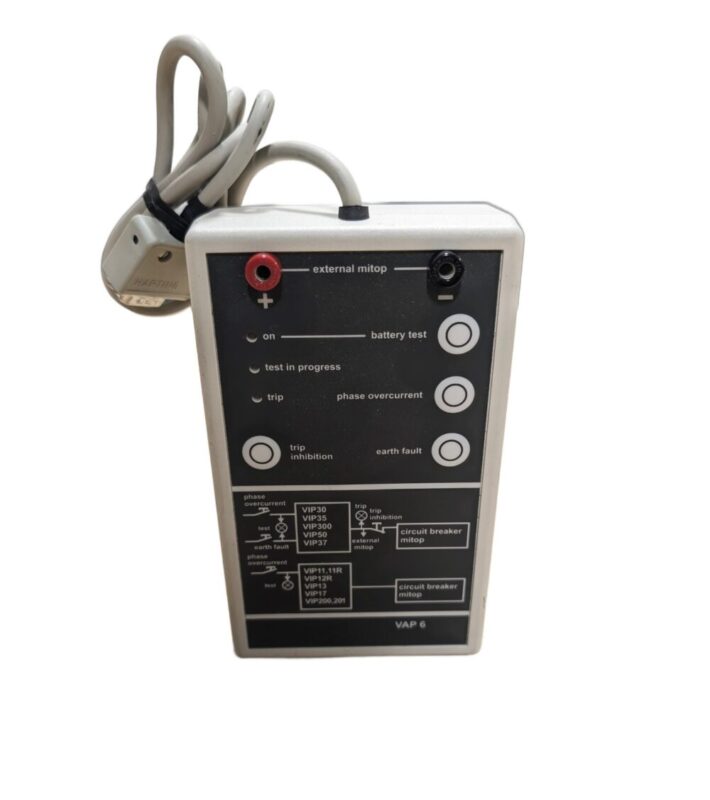

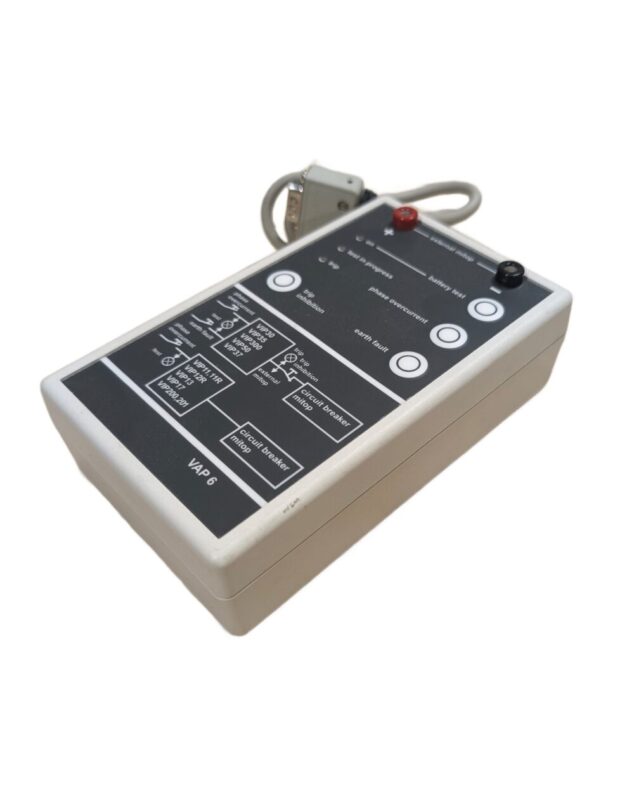

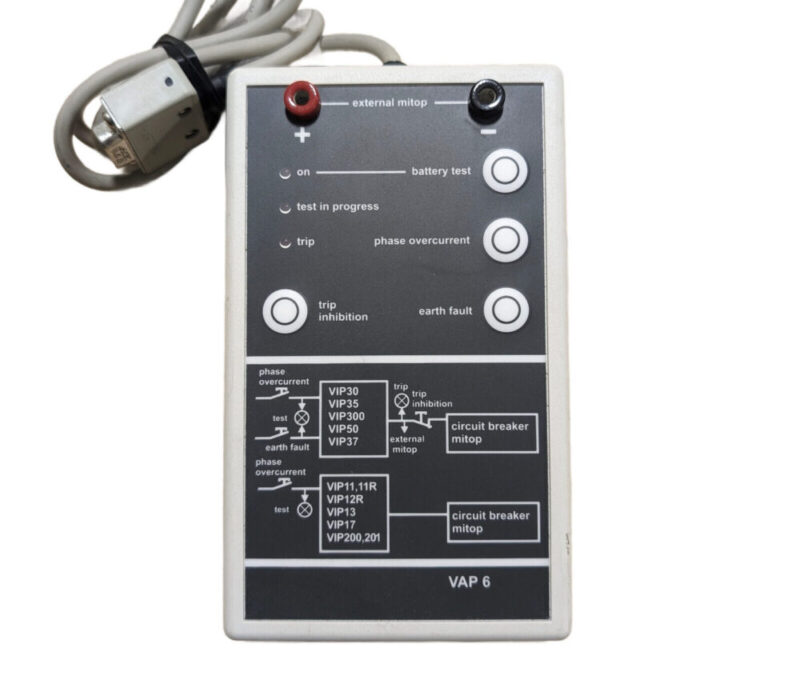

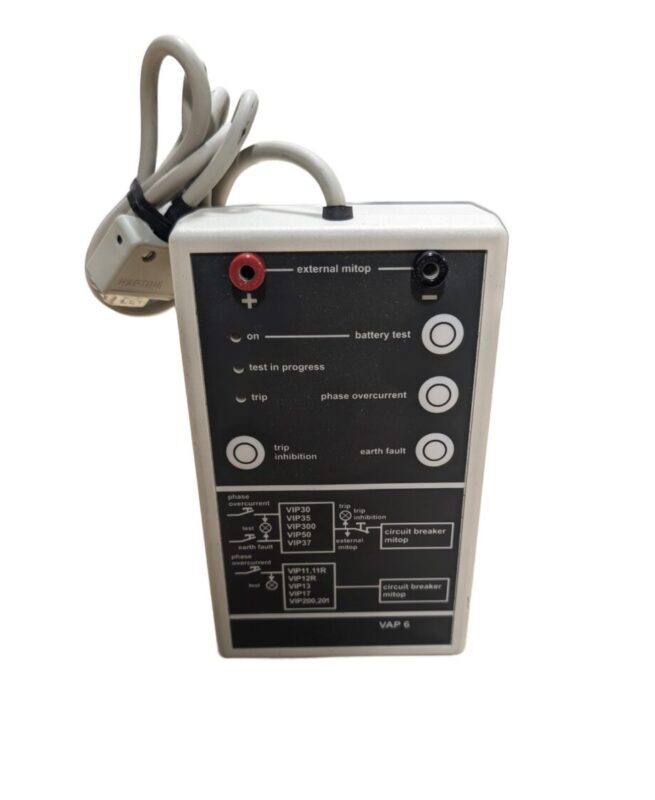

The Merlin Gerin VAP-6 is a handheld test unit for VIP30, VIP35, VIP300, VIP50, VIP37, VIP11, VIP11R, VIP12R, VIP13, VIP17, VIP200, and VIP201 relays. It is used to test the operation of these relays, including their coil voltage, contact resistance, and switching time.
The VAP-6 is a portable unit that can be easily carried to the location of the relay. It has a built-in power supply and a display that shows the results of the tests.
Features:
Additional Details:
Resources:
Features:
Here are some of the specific features of the Merlin Gerin VAP-6:
- Tests coil voltage, contact resistance, and switching time
- Portable and easy to use
- Built-in power supply
- Display shows the results of the tests
Additional Details:
Here are some details about the Merlin Gerin VAP-6:
- Dimensions: 150 x 100 x 40 mm
- Weight: 600 g
- Power supply: 9 V DC
- Display: LCD
- Temperature range: -20 to +50 °C
