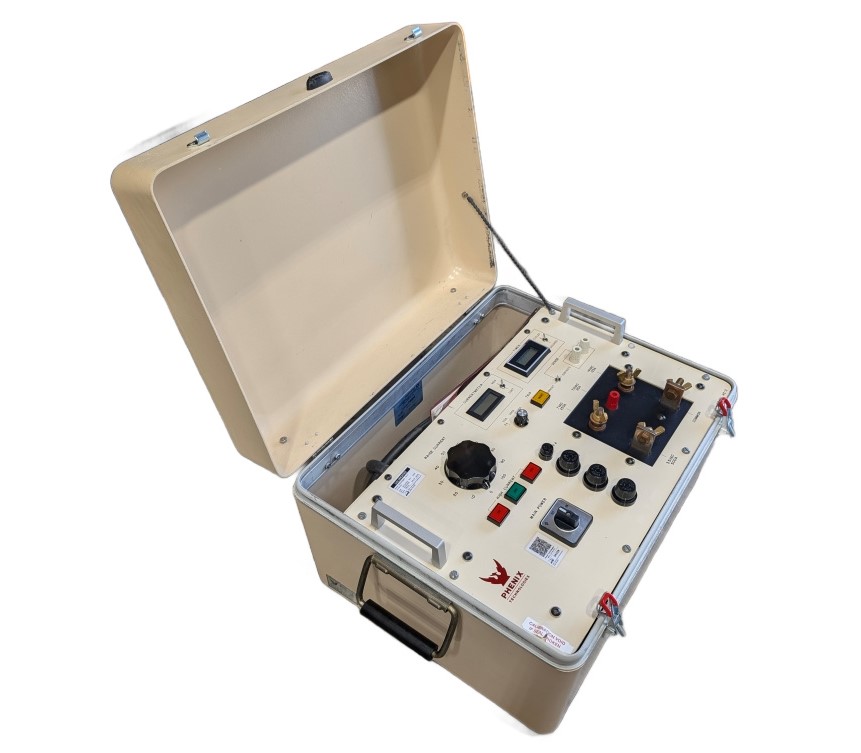

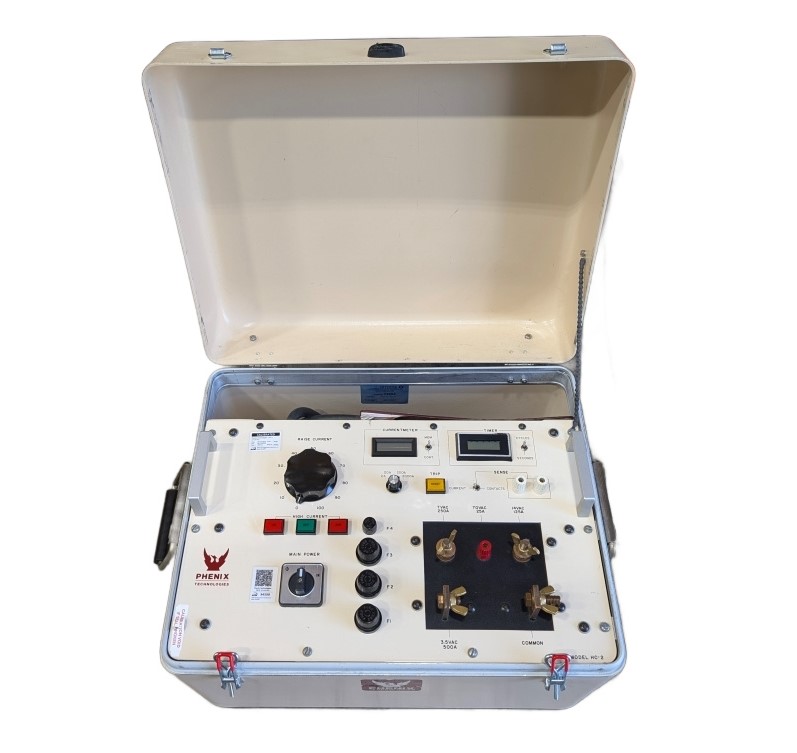

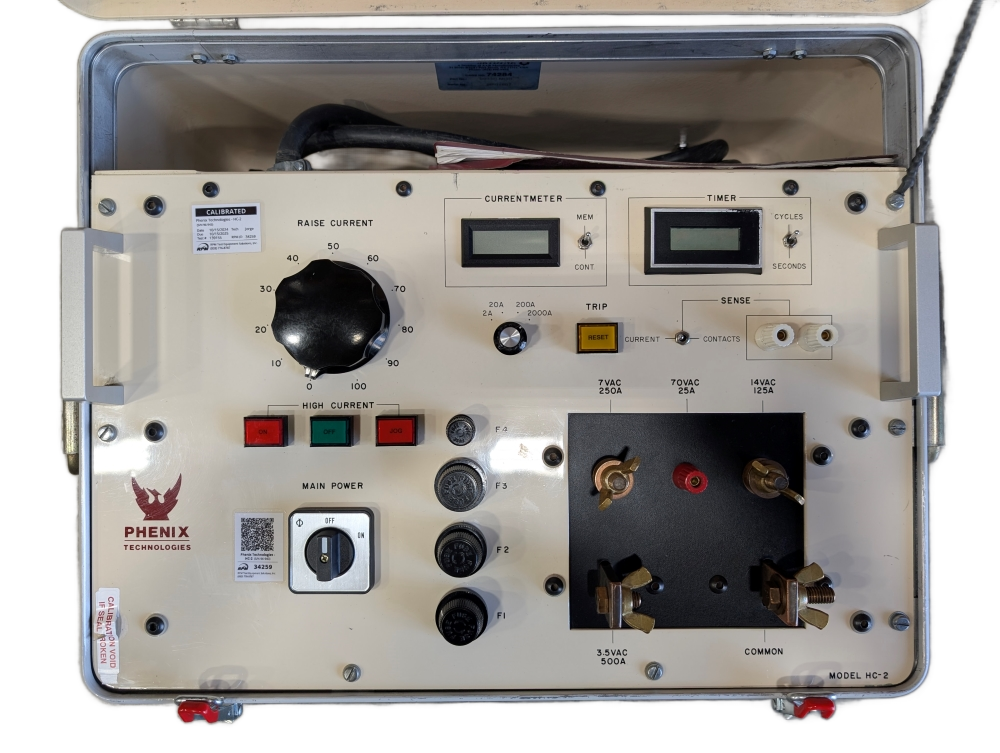

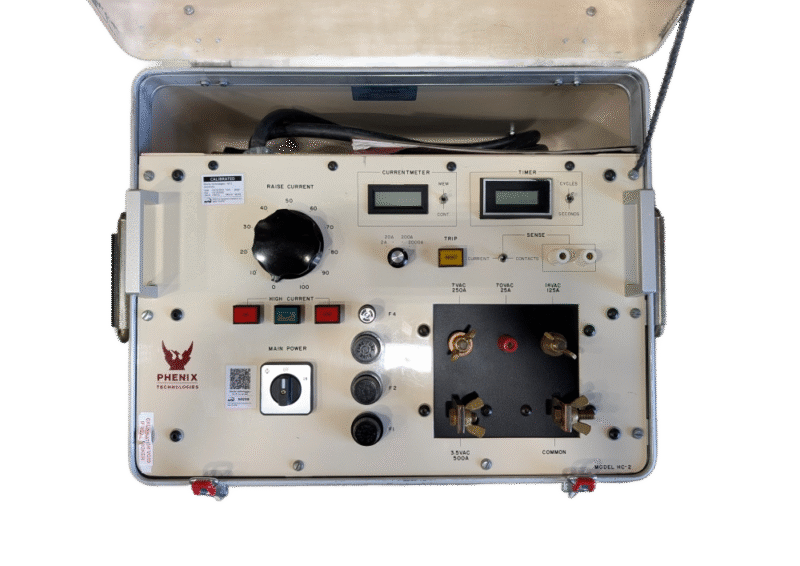

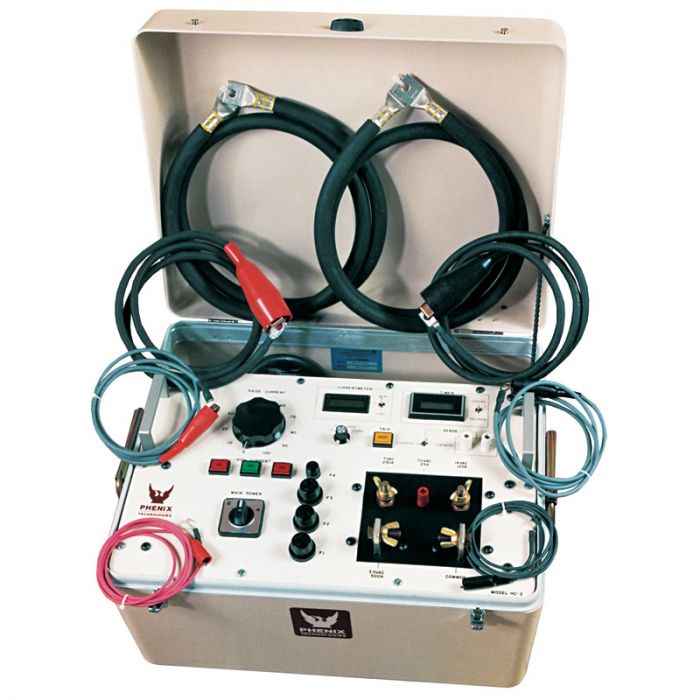

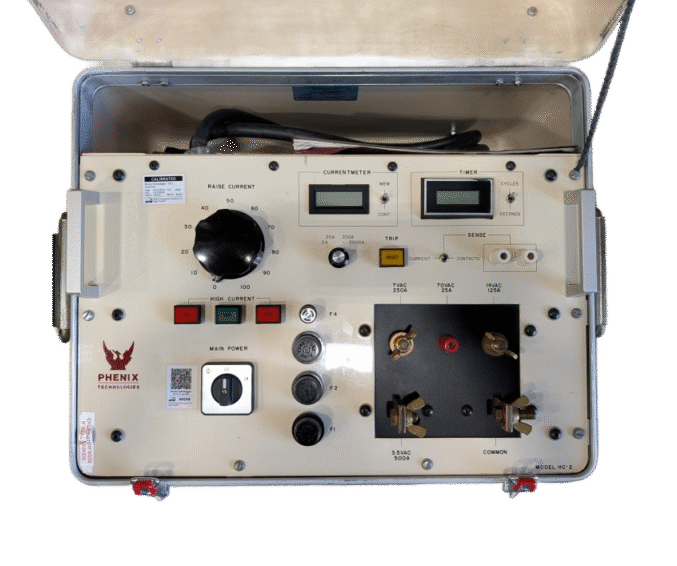

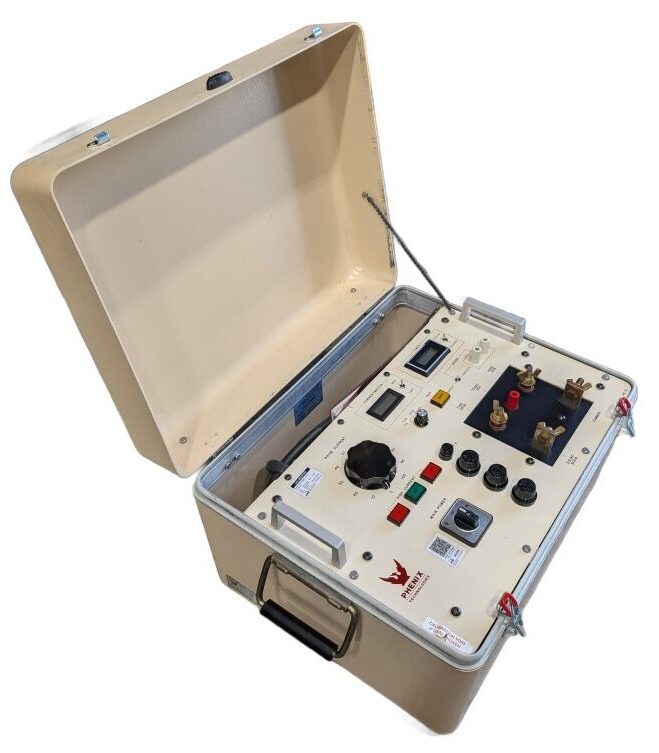

The Phenix Technologies Model HC-2 is a portable high current test set designed for field or shop use. It’s capable of delivering up to 2000 amps of instantaneous output current, making it suitable for testing a variety of electrical components, including:
Testing:
Key Features:
Resources:
Testing:
- Motor overload relays: The HC-2 can test both thermal and magnetic overload relays, as well as solid-state models.
- Molded-case circuit breakers:Â The test set can be used to test the time delay characteristics of circuit breakers, as well as their instantaneous trip capabilities.
- Ground fault trip devices: The HC-2 can be used to test the sensitivity and response time of ground fault trip devices.
Key Features:
- High current output:Â 2000 amps instantaneous output
- Auto-sensing feature:Â Simplifies operation by automatically detecting the state of the test object
- Pre-settable output current:Â Allows for precise control of the test current
- Timer function:Â Measures test duration
- Memory function:Â Stores peak current values for instantaneous trip tests
Resources:
