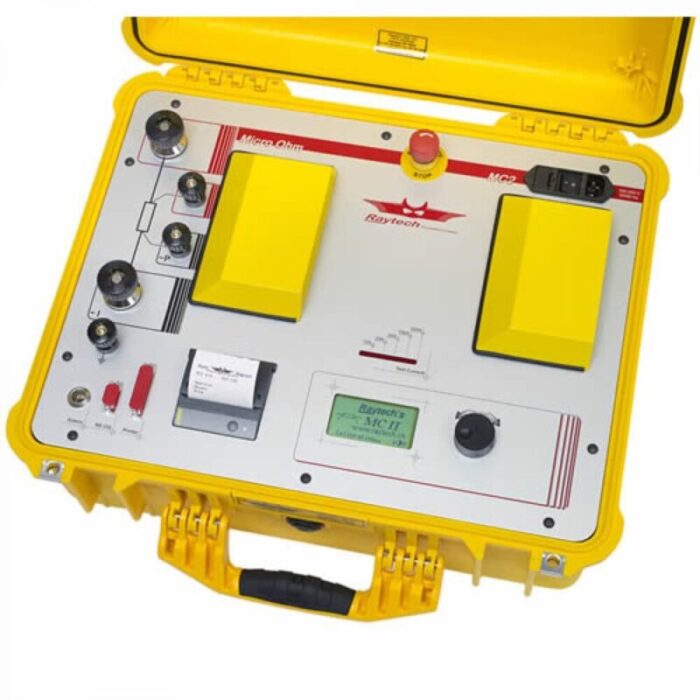

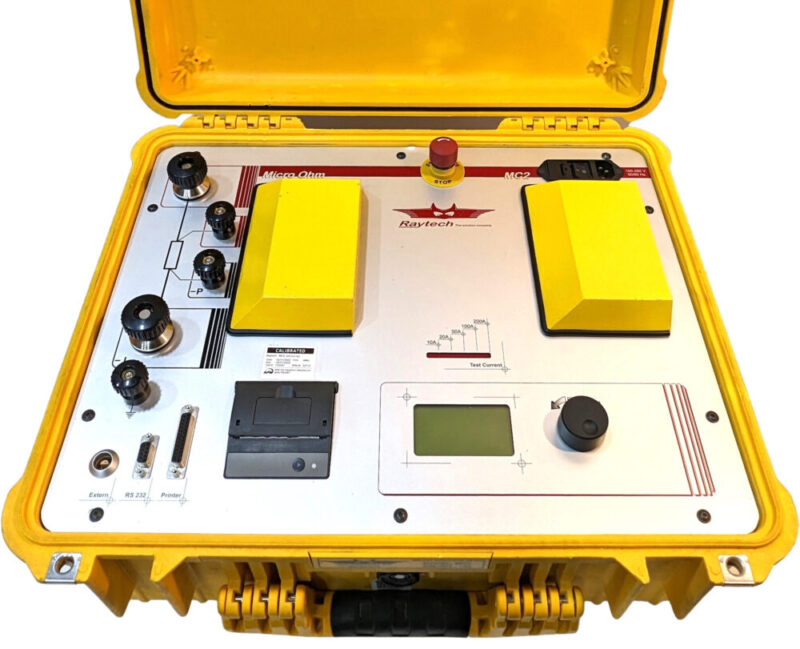

The Raytech MC2 is a high precision, fully automatic, microprocessor-based, 200 Amp Digital Micro-Ohm Meter, designed for highly accurate readings on-site with laboratory precision. It is a portable test system that can be used by apparatus manufacturers, rebuild shops, and electrical maintenance crews to measure very low resistances.
The MC2 has a number of features, including:
Key Features:
Specifications:
Applications:
Accessories:
Resources:
Key Features:
- Fully automatic operation: The MC2 automatically applies a preset current level, selected by the user, from 10A to 200A. The results of the test are displayed automatically within a few seconds, and reported on the easy-to-read liquid crystal display, and then can be stored or printed out.
- High accuracy: The MC2 has a high degree of accuracy and can measure resistances from 0.00µΩ to 5Ω.
- Rugged construction: The MC2 is housed in a rugged, lightweight, portable case.
- Battery operated: The MC2 is battery operated and can be recharged with line voltage or an optional DC car adapter.
- Reverse polarity protection: The MC2 has reverse polarity protection to prevent damage to the instrument.
- Automatic calibration: The MC2 has an automatic calibration system that ensures accurate readings.
- Internal storage of the last 2,000 test results: The MC2 can store the last 2,000 test results for later retrieval.
- RS-232 interface: The MC2 has an RS-232 interface that can be used to connect the instrument to a computer for data logging or analysis
Specifications:
- Size: L: 521 mm (20.5″) W: 432 mm (17″) H: 216 mm (8.5″)
- Weight: 14.4 kg (31.5 lbs)
- Input Power: 100 to 250 VAC, 50/60 Hz, auto ranging
- Output Power: 1000 Watt
- Resistance Range: 0.01 µΩ … 5 Ω
- Test Current: User Selectable: 200, 100, 50, 20, 10A DC
- Panel Display: LCD graphic with a backlight
- Front Panel: Sealed, anodized with a multi-actuation rotary knob
- Interface: 9 Pin RS-232 serial / 25 Pin Centronics parallel
- Internal printer
- Memory Storage: internally stores up to 2,000 test results
- Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
Applications:
The Raytech MC2 is a versatile and accurate micro-ohm meter that can be used for a variety of applications, such as:
- Troubleshooting electrical equipment
- Testing electrical safety
- Calibrating other test equipment
- Inspecting electrical connections
- Measuring the insulation resistance of cables
Accessories:

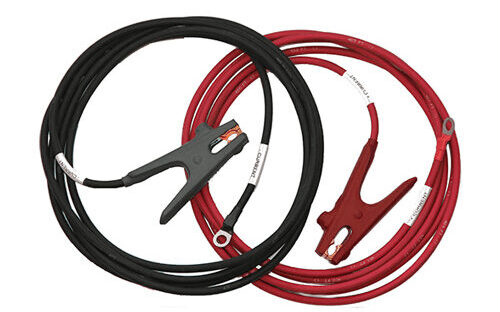

- 2021A-05002: Current Cable Positive – 5m (16 ft.)
- 2021A-05004: Current Cable Negative – 5m (16 ft.)

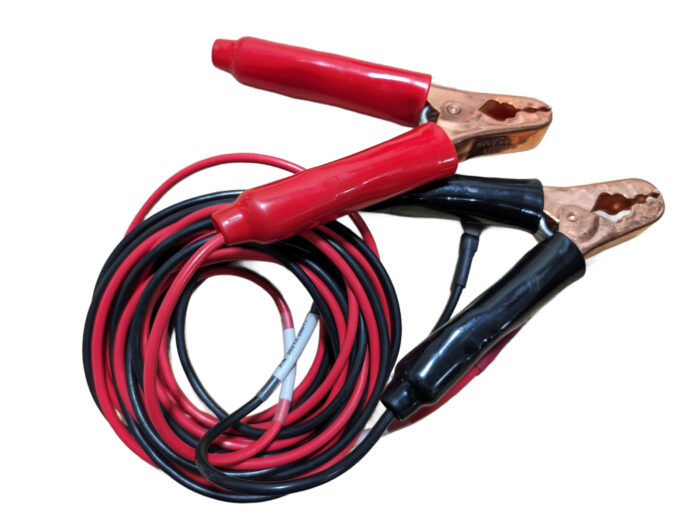

- 2021A-05010: Potential Cable Positive – 5m (16 ft.)
- 2021A-05011: Potential Cable Negative – 5m (16 ft.)
- 2021A-05009: Power Cord – 7.62m (25 ft.)
- 2021A-05007: Ground Lead – 5m (16 ft.)
- 2020A-23001: RS-232 Cable – 3m (10 ft.)
- 2040A-03004: Cable Bag with Shoulder Strap
- 2040X-18002: Paper Refill for Printer, 5 rolls
- 2021X-07001: Spare Fuse Set, Fast-Acting 10A (Qty. 5)
- 2021A-02001: Instruction Manual
- 2021X-10001: Certificate of Accuracy
