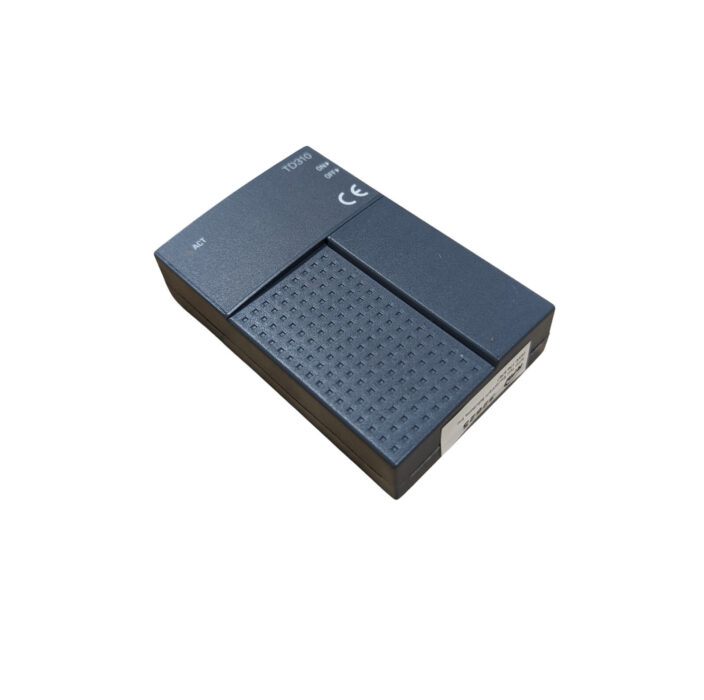

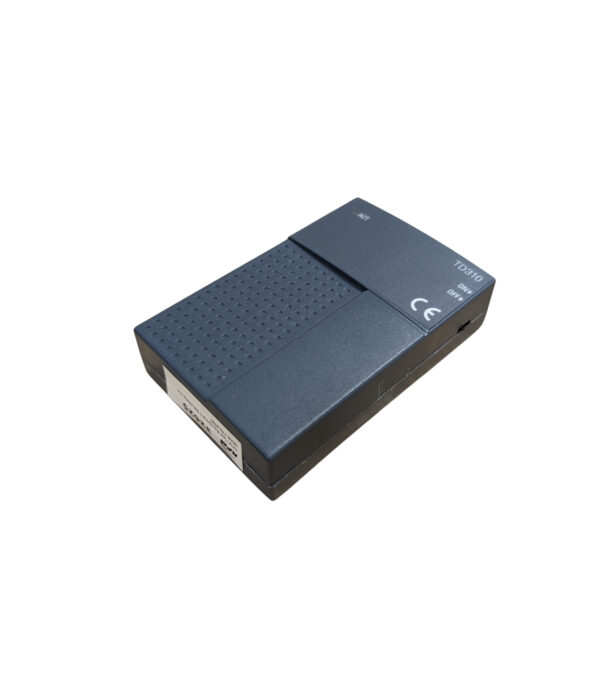

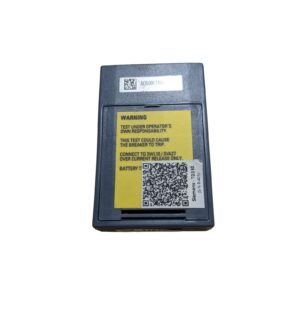

The Siemens TD310 is an activation and trip box designed as an accessory for Siemens electronic trip units (ETUs) of the 3- and 6-series. It’s specifically used with Siemens 3WL10 and 3VA27 circuit breakers.
Description:
Trip Units:
Benefits:
Specifications:
Resources:
Description:
- The Siemens TD310 serves as a tool to activate and trip these specific Siemens circuit breakers equipped with the compatible electronic trip units.
- It allows for manual and remote activation and tripping of the circuit breaker.
- It can monitor the status of the circuit breaker, indicating whether it is open, closed, tripped, or if a fault condition exists.
- The TD310 can also provide an indication of the trip unit type and its settings.
- It offers a degree of protection against unauthorized operation.
- It connects to the ETU via a plug-in connector and is typically mounted on the front of the circuit breaker.
- The user interface is designed to be simple, often featuring push buttons and LEDs to display the status of the circuit breaker and the trip unit.
Trip Units:
The Siemens TD310 is a test kit used to test the following types of trip units:
- Siemens Digitrip 310+
- Siemens Digitrip Optim 310+
Benefits:
- Improved Safety and Reliability: Facilitates thorough testing of the circuit breaker’s tripping mechanisms.
- Convenient Operation: Provides a straightforward method for activating and tripping circuit breakers.
- Informative Feedback: Offers valuable insights into the status of the circuit breaker and its trip unit.
- Ease of Use and Installation: Designed for simple integration with compatible circuit breakers.
Specifications:
- Product Name: Activation & Trip Box TD310
- Siemens Article Number (Market Facing Number): 3VW9011-0AT32
- Product Brand Name: SENTRON
- Compatibility: Electronic Trip Units (ETUs) 3-series and 6-series
- Compatible Circuit Breakers: Siemens 3WL10 and 3VA27
- Dimensions:
- Height: 61 mm
- Width: 90 mm
- Depth: 140 mm
- Net Weight: Approximately 0.22 kg (0.485 lbs)
- Mounting: Accessory for the front of the circuit breaker
- Connection: Plug-in connector to the ETU
- Indicators: LEDs for status indication
- User Interface: Push buttons for control
- Certifications/Compliance: Typically includes Manufacturer’s Declaration and RoHS compliance.
- EAN: 4042948807101
