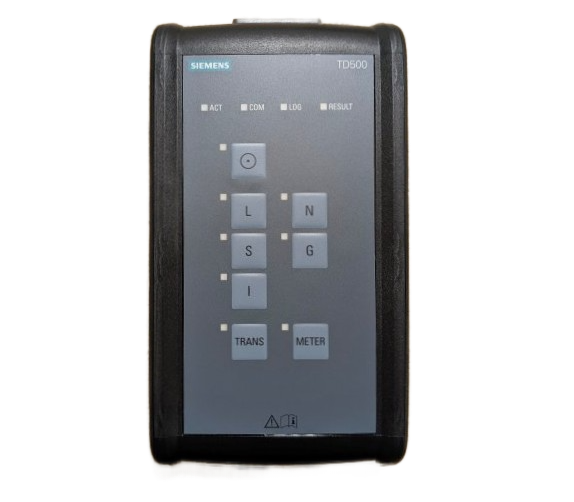

The Siemens TD500 is a secondary injection test set specifically designed to test Siemens 3VA molded case circuit breakers with ETU (Electronic Trip Unit) trip units.
This means it’s used to verify the proper operation of the electronic trip units that protect these circuit breakers. These ETUs can have various trip functions, and the TD500 is capable of testing them.
Testing:
Features:
Benefits:
TD500 Test Kit
Resources:
Testing:
- Overcurrent: Tests the trip unit’s response to overcurrent conditions, ensuring it trips within the specified time-current characteristics.
- Undervoltage: Checks the trip unit’s ability to trip when the voltage drops below a certain threshold.
- Earth Fault: Verifies the earth fault protection function, which detects and trips on ground faults.
- Phase Sequence: Tests the trip unit’s response to incorrect phase sequence.
- Trip Curve: Allows for detailed testing of the trip unit’s time-current curve to ensure it matches the specifications.
- Trip Time: Measures the actual trip time of the breaker under various fault conditions.
Features:
- Portable and easy to use
- Built-in display for test results
- Can be connected to a PC for data logging and analysis
- Test functions: overcurrent, undervoltage, earth fault, phase sequence, trip curve, trip time
- Reliable and accurate
- Designed for use with Siemens 3VA circuit breakers with ETU trip units
Benefits:
- Increased safety: The TD500 can help to prevent electrical accidents by ensuring that circuit breakers are properly functioning.
- Improved efficiency: The TD500 can help to save time and money by quickly and accurately diagnosing circuit breaker problems.
- Reduced risk of errors: The TD500 can help to reduce the risk of human errors by providing clear and concise instructions.
- Enhanced productivity: The TD500 can help to improve productivity by allowing electricians to quickly and easily test circuit breakers.

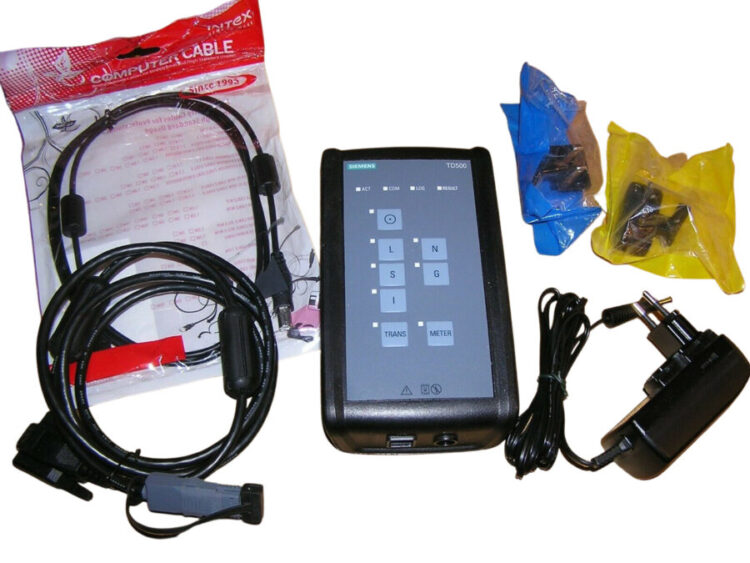

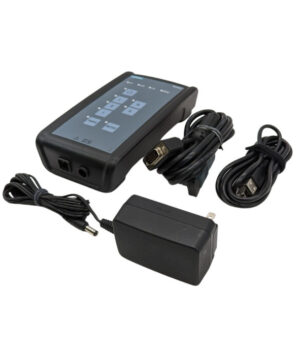

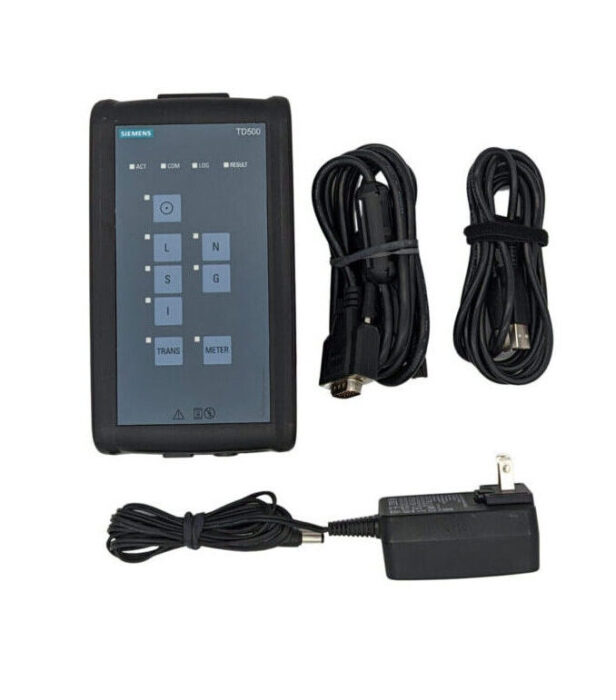

TD500 Test Kit
Essentially, the TD500 allows you to simulate various fault conditions and verify that the ETU trip unit will respond correctly and trip the circuit breaker as intended. This is crucial for ensuring the safety and reliability of electrical systems.
