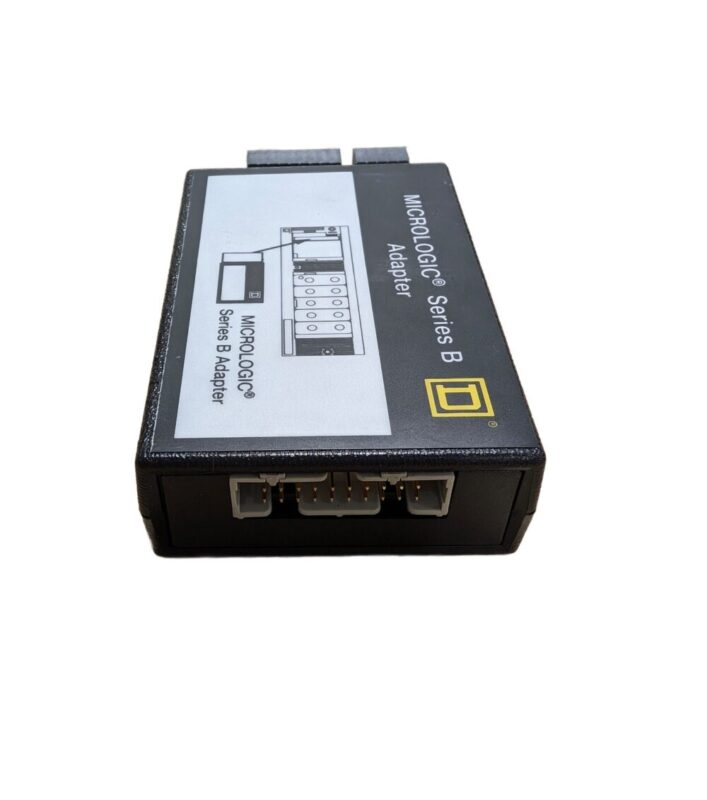

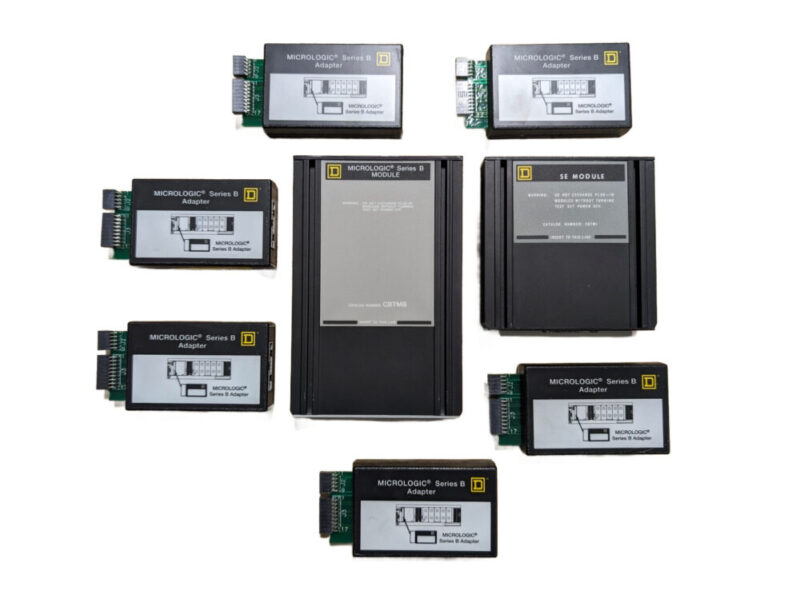

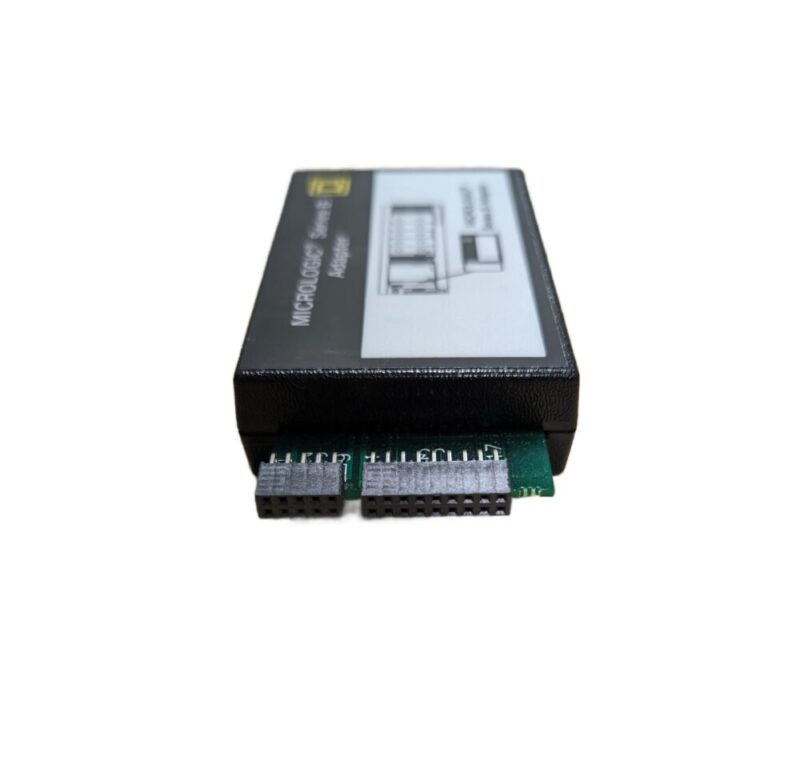

The Square D Micrologic Series B Adapter used with UTS3 & CBTU1 Universal Test Sets
Function:
- It’s a specialized adapter that enables UTS3 Universal Test Sets to test and diagnose Square D circuit breakers equipped with Micrologic Series B electronic trip units.
- It acts as a bridge between the test set and the circuit breaker, allowing the test set to communicate with the trip unit and perform various tests.
Key Features:
- Compact and lightweight:Â Designed for portability and easy handling.
- Rugged construction:Â Built to withstand field conditions and frequent use.
- Simple connections:Â Clear labels and color-coded wires for easy setup.
- Reliable performance:Â Ensures accurate testing and diagnosis of circuit breakers.
Applications:
- Testing and diagnosing Micrologic Series B trip units
- Verifying trip settings
- Analyzing trip history
- Identifying potential problems
Compatibility:
- It’s specifically compatible with UTS3 Universal Test Sets and Micrologic Series B trip units.
- It’s not compatible with other test sets or trip unit types.
