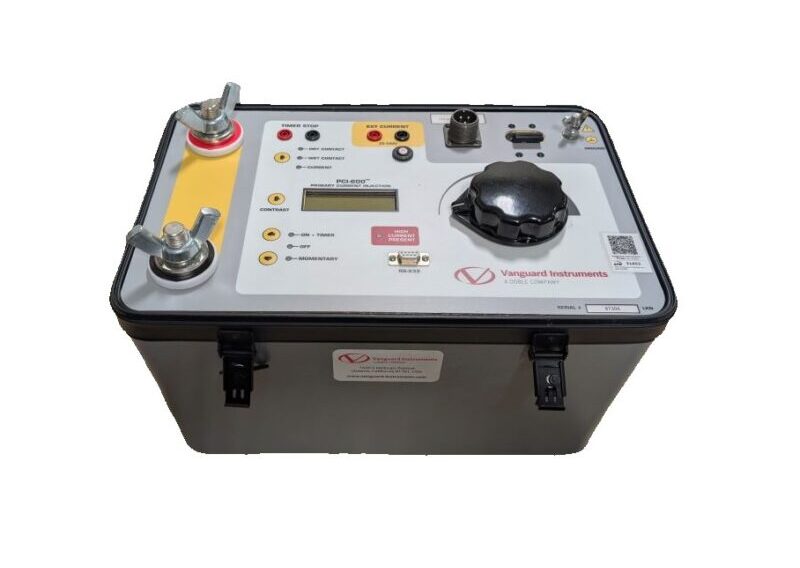

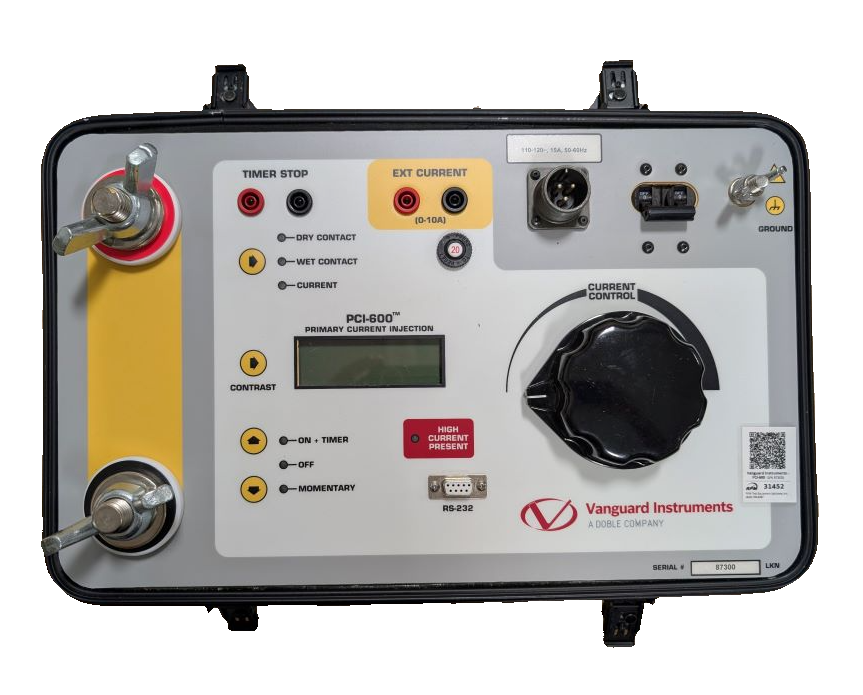

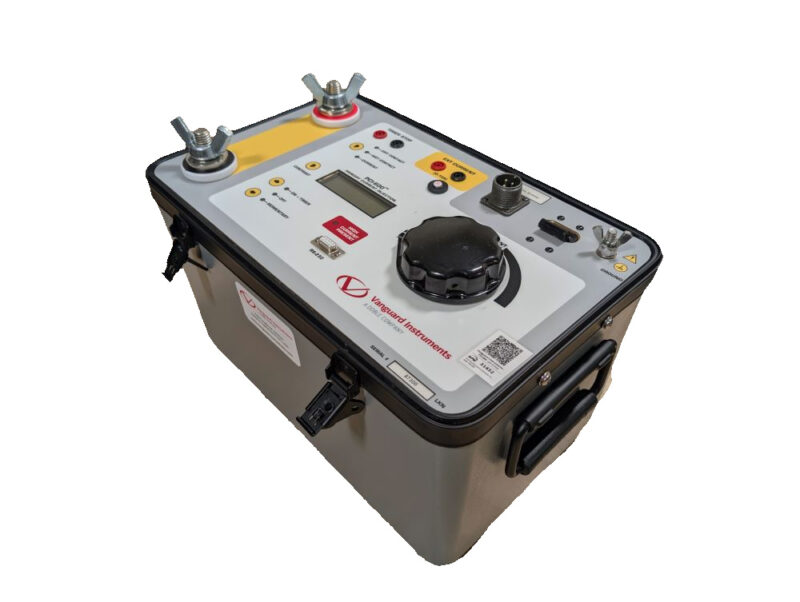

The Vanguard PCI-600 is a programmable AC high-current source designed for utility substation applications. It’s primarily used for injection testing of protective relays, but can also be used for testing thermal, magnetic, and solid-state motor-protection relays and molded-case circuit-breakers.
Key Features:
Applications:
Additional Information:
Resources:
Key Features:
- High current output: Can generate currents from 10 to 600 amperes.
- Allows users to set the desired current and test parameters.
- Measures the time-delay characteristics of relays and circuit-breakers.
- External current input: Can be used to measure external currents.
- Easy to use: Simple operation and controls.
Applications:
- Primary injection testing of protective relays
- Testing thermal, magnetic, and solid-state motor-protection relays
- Testing molded-case circuit-breakers
- Other applications requiring a high-current source
Additional Information:
Manufacturer:Â Vanguard Instruments
Model:Â PCI-600
Weight:Â 46 lbs (21 kg)
Dimensions: 16.8″W x 12.6″H x 10.6″D (42.6 cm x 32.0 cm x 27 cm)
Power input:Â 100-120 Vac or 200-240 Vac (factory pre-set), 50/60 Hz
