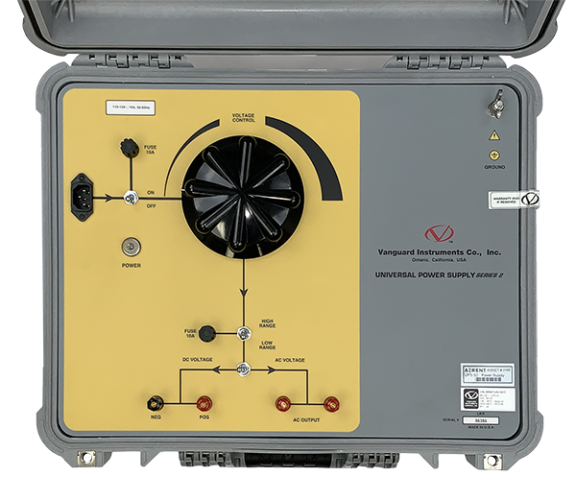

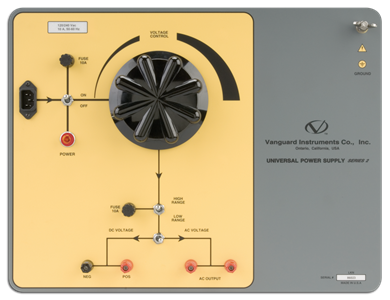

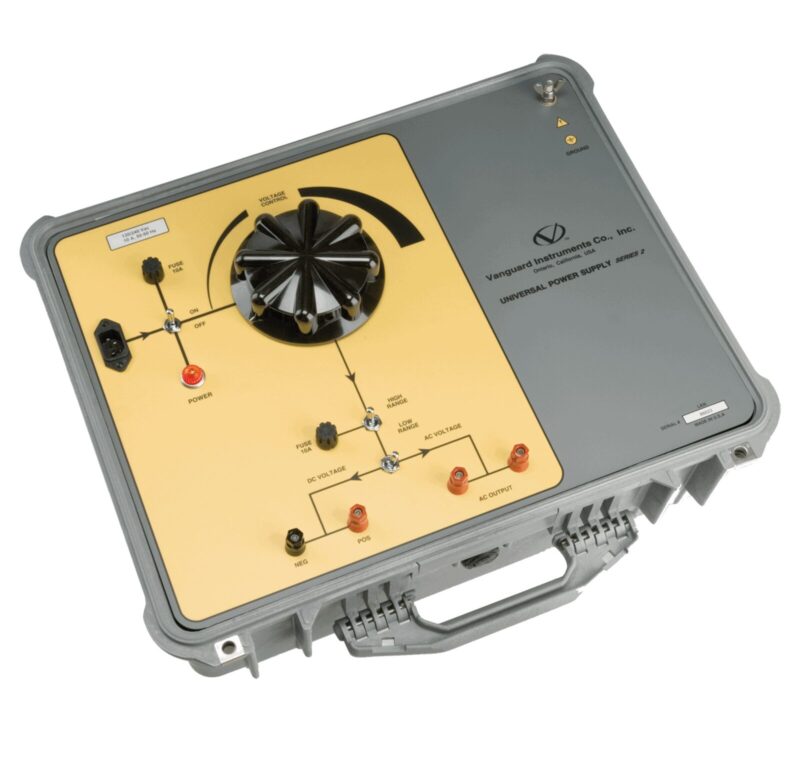

The Vanguard Instruments UPS-S2 is a portable AC/DC power supply that is designed for use in substations. It can provide up to 10 amperes of continuous current at either 10-300 Vdc or 10-240 Vac.
The UPS-S2 is a rugged and reliable instrument that is built to withstand the harsh environments of substations. It is also easy to use and maintain.
Features:
Applications:
Specifications:
Resources:
Features:
- Isolated variable 1-300 Vdc source
- Isolated variable 1-240 Vac source
- 10 ampere continuous current
- Rugged and reliable construction
- Easy to use and maintain
- CE, UL, and CSA certified
Applications:
The UPS-S2 is ideal for a variety of applications, including:
- Operating circuit breakers
- Powering substation relays
- Unregulated charging of substation batteries
- Testing electrical equipment
Specifications:
- DC output voltage: 10-300 Vdc
- DC output current: 10 amperes
- AC output voltage: 10-240 Vac
- AC output current: 10 amperes
- Input voltage: 100-240 Vac
- Dimensions: 21″ W x 17″ H x 9″ D (53 cm x 43 cm x 24 cm)
- Weight: 55 lbs (25 kg)
