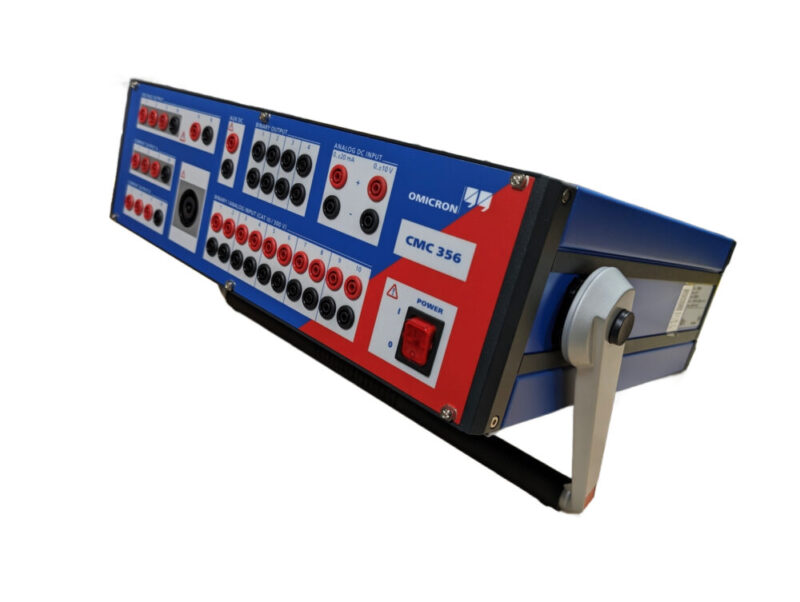

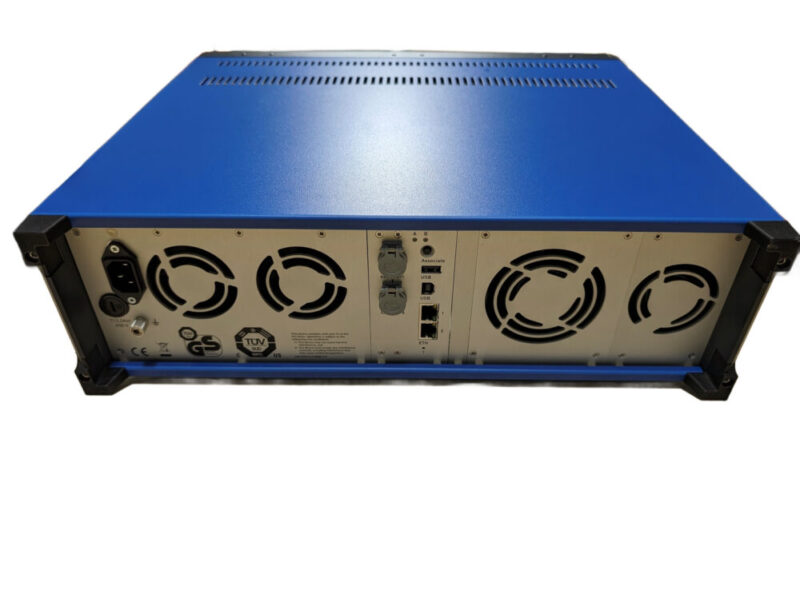

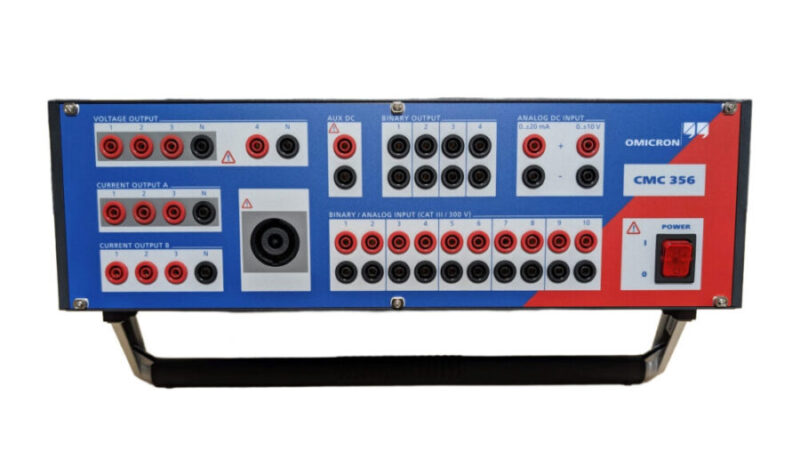

The Omicron CMC 356 is a universal relay test set that can be used to test all generations and types of protection relays. It has six powerful current sources (three-phase mode: up to 64 A / 860 VA per channel) with a great dynamic range, making the unit capable of testing even high-burden electromechanical relays with very high power demands.
The CMC 356 is the first choice for applications requiring the highest versatility, amplitude and power.
Key Features:
Benefits:
Applications:
Key Features:
Here are some of the features of the Omicron CMC 356:
- Six powerful current sources (three-phase mode: up to 64 A / 860 VA per channel)
- Great dynamic range
- Capable of testing even high-burden electromechanical relays with very high power demands
- First choice for applications requiring the highest versatility, amplitude and power
- 10-channel current and voltage transient recorder
- Measurement device for amplitude, phase, frequency, power (S, P, Q), harmonics, trend recorder
- DC measuring inputs (0 … 10 V / 0 … 20 mA)
- Ethernet/USB cable or Wi-Fi (through the optional mini wireless USB adapter)
- Time synchronized applications according to IEEE 1588 are possible, for example, via CMGPS 588
Benefits:
Here are some of the benefits of using the Omicron CMC 356:
- Increased safety: The CMC 356 has a number of safety features, including a zero-start interlock that prevents the unit from being turned on until the test leads are properly connected, and an automatic shut-off feature that will turn off the unit if the test voltage exceeds the preset level.
- Improved efficiency: The CMC 356 is a fast and efficient way to test protection relays. It can automatically generate test sequences, and it can store and recall test results.
- Reduced risk of errors: The CMC 356 is a user-friendly instrument that is designed to minimize the risk of errors. It has a clear and intuitive display, and it provides clear and concise instructions.
Applications:
- Software Compatibility:
- It works with various software solutions, including Test Universe, RelaySimTest, CMControl P, EnerLyzer Classic, and CMEngine.
- It works with various software solutions, including Test Universe, RelaySimTest, CMControl P, EnerLyzer Classic, and CMEngine.
- Commissioning Features:
- It’s particularly useful for commissioning engineers due to its ability to perform wiring and plausibility checks of current transformers.
