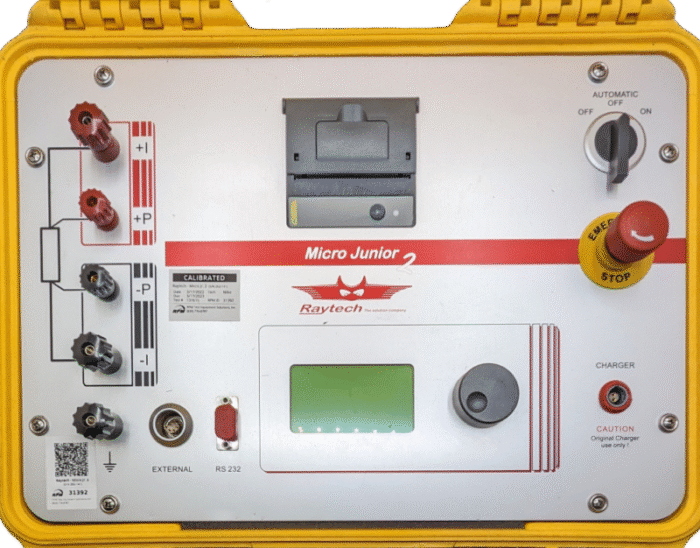

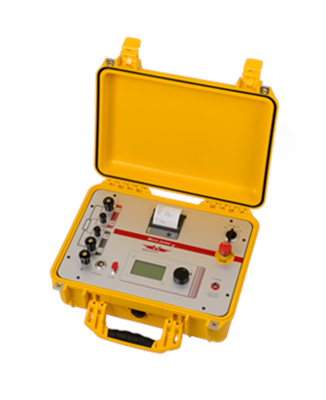

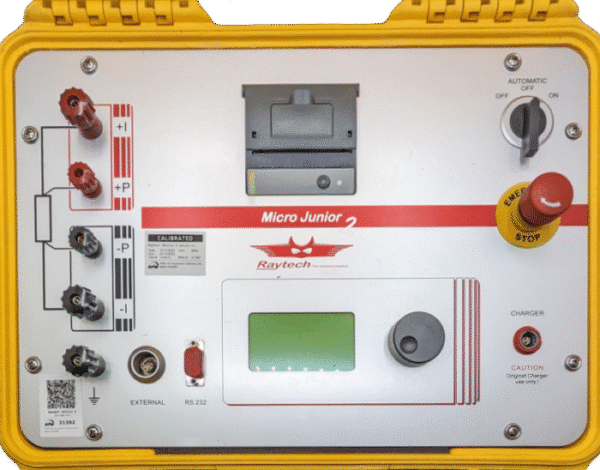

The Raytech Micro Junior 2 is a digital micro-ohm meter that is designed for measuring very low resistances. It has a resistance range of 0.00 microohms to 400 kiloohms and a resolution of 0.01 microohms.
The Micro Junior 2 can measure resistances in a variety of configurations, including two-wire, four-wire, and Kelvin. It also has a number of advanced features, such as automatic polarity reversal, automatic current selection, and a built-in printer.
Key Features:
Applications:
Specifications:
Accessories:
Resources:
Key Features:
Here are some of the key features of the Raytech Micro Junior 2:
- Measures resistances from 0.00 microohms to 400 kiloohms
- Resolution of 0.01 microohms
- Measures resistances in two-wire, four-wire, and Kelvin configurations
- Automatic polarity reversal
- Automatic current selection
- Built-in printer
Applications:
Here are some of the applications of the Raytech Micro Junior 2:
- Testing of electrical equipment
- Commissioning of new electrical installations
- Maintenance of existing electrical installations
- Research and development
- Quality control
Specifications:
- Size L: 410 mm (16.1″) W: 337 mm (13.3″) H: 178 mm (7″)
- Weight 5.9 kg (13 lbs.)
- Power: Lithium-Ion battery, 14.4V / 6.5 Ah
- Resistance Range: 0.00 µΩ … 400 kΩ
- Test Current: User Selectable: 10, 1, 0.1, 0.01, 0.001A DC
- Panel Display: LCD graphic with backlight
- Front Panel: Sealed, Anodized with a multi-actuation rotary knob
- Interface: 9 Pin RS-232 serial
- Internal printer
- Memory Storage: Internally stores up to 2,000 test results
- Temperature: Operating: –10°C to 60°C (14ºF to 140ºF), Storage: –20°C to 70°C (-4ºF to 158ºF)
Accessories:
- 2020A-05001: Current Cable Positive – 5m (16 ft.)
- 2020A-05002: Current Cable Negative – 5m (16 ft.)
- 2020A-05003: Potential Cable Positive – 5m (16 ft.)
- 2020A-05004: Potential Cable Negative – 5m (16 ft.)
- 2021A-05007: Ground Lead – 5m (16 ft.)
- 2020A-07001: Lithium-Ion Battery Charger with power cord
- 2020A-23001: RS-232 Cable – 3m (10 ft.)
- 2020A-03001: Cable Bag with Shoulder Strap
- 2040X-18002: Paper Refill for Printer, 5 rolls
- 2020A-02001: Instruction Manual
- 2020X-10001: Certificate of Accuracy
