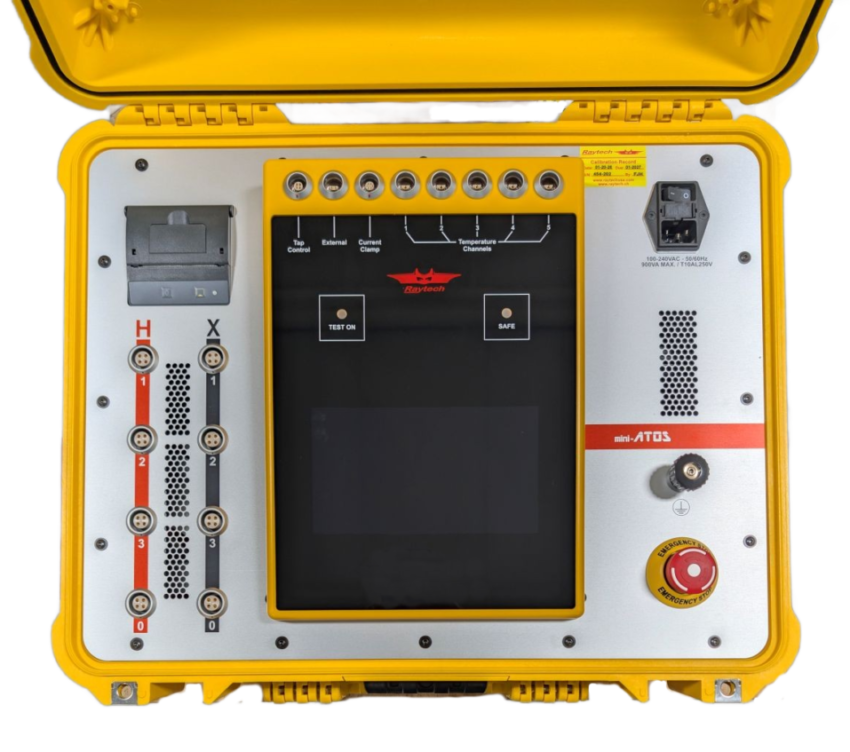

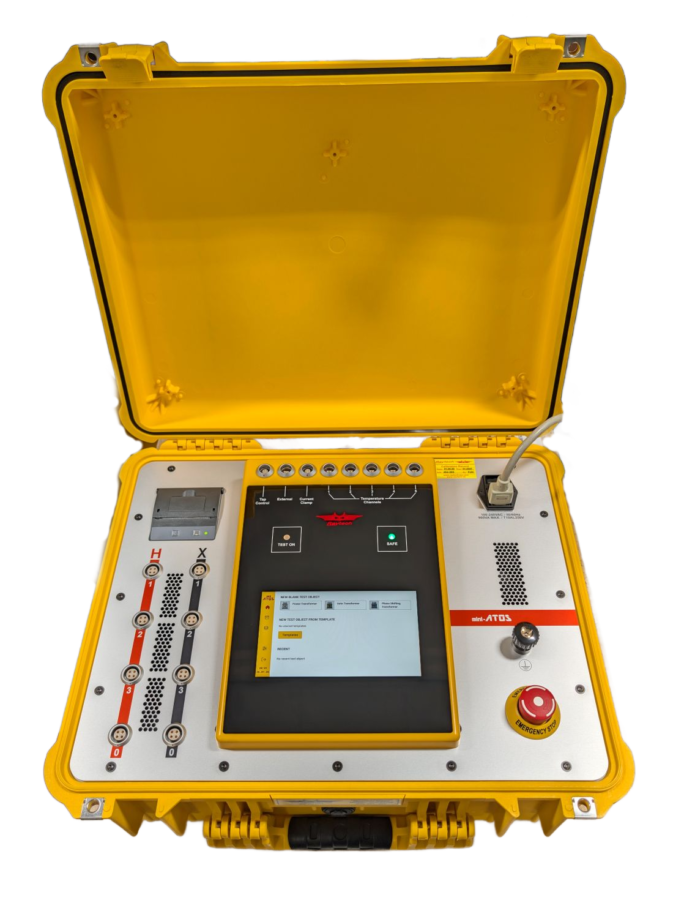

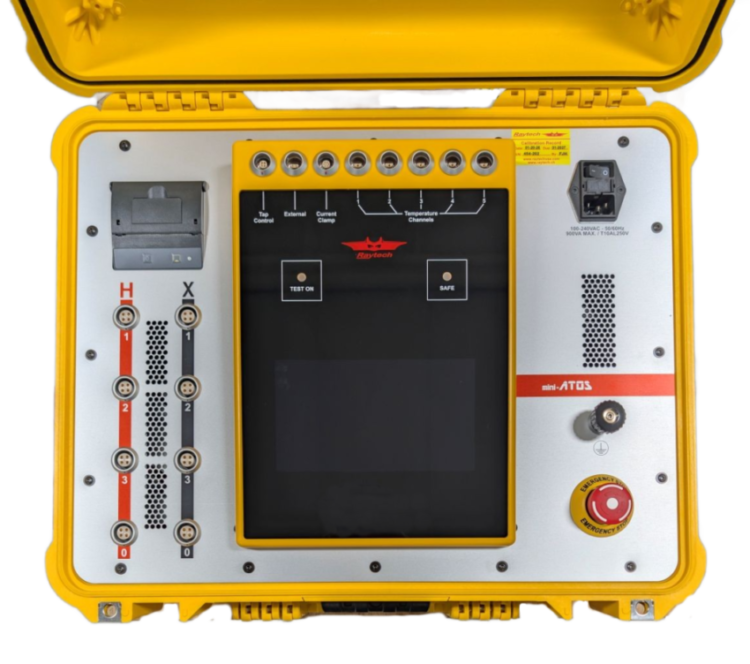

The Raytech Mini ATOS precision instrument is a professional multifunctional power transformer and substation diagnostic system.
It is a compact and intelligent instrument that can perform many routine and advanced tests such as Turns Ratio (TR), Winding Resistance (WR), Dynamic Resistance Measurement (DRM), Frequency Response of Stray Losses (FRSL), Magnetic Balance, and other diagnostic parameters.
Benefits:
Key Features:
Specifications:
Accessories:
Resources:
Benefits:
Here are some of the benefits of using the Raytech Mini Atos:
- Saves time and money
- Improves safety
- Increases reliability
- Extends equipment life
- Only a one-time connection is required for nearly all functions which saves a considerable amount of time.
- The portable and rugged case is perfect for use anywhere on-site or in a laboratory.
- It is specially designed for fast and easy measurement with the well-known high precision and quality of all Raytech instruments.
Key Features:
Here are some of the features of the Raytech Mini Atos:
- Turns Ratio and Winding Resistance
- Demagnetization
- Magnetic Balance
- Auto Vector Detection
- Excitation Current
- Five Integrated Temperature Channels
- Touchscreen LCD
- Integrated Thermal Printer
- Emergency Stop Switch
- Portable and Housed in a Durable Carry Case
- Five Year Standard Warranty
Specifications:
- Size: Length: 20.6” (524mm) Width: 16.8” (428 mm) Height: 8.1″ (206 mm)
- Weight: 33 lbs. (15 kg)
- Input Power: 85vac – 264vac 47Hz – 63Hz, Auto Ranging
- Interface: USB-A, USB-B, Ethernet Port
- Operating Temperature: 14°F to 140°F (-10°C to +60°C)
- Storage Temperature: –4°F to 158°F (-20°C to +70°C)
Accessories:
- Cable Bag with Shoulder Strap
- H and X Test Leads
- Ground Cable
- Power Cord
- Five Printer Paper Rolls
- Five Spare Fuses
- CAT6 Ethernet Cable
- A-B USB 2.0 Cable
- Dual Tip Stylus
- USB Thumb Drive
- Instruction Manual
- Certificate of Accuracy
