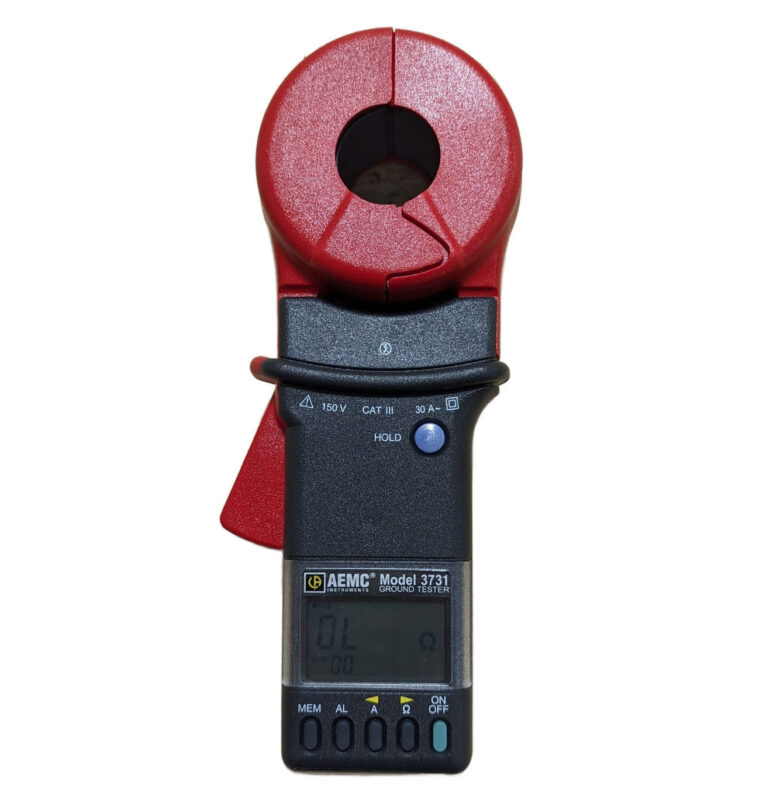

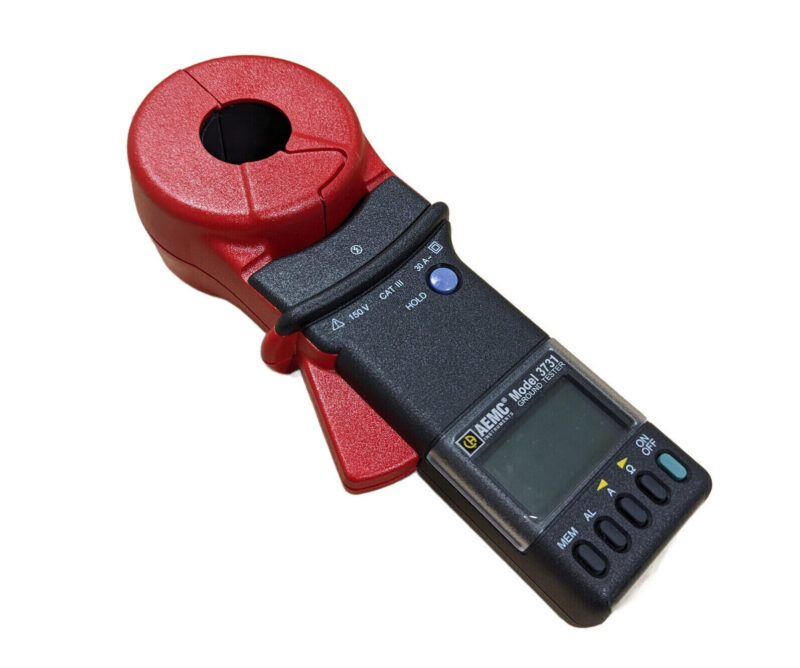

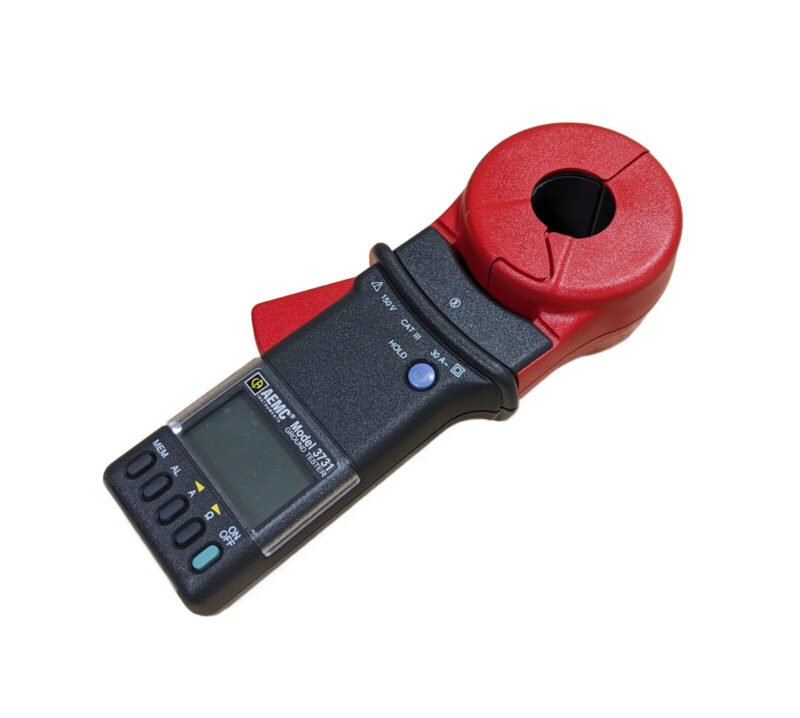

The AEMC Instruments 3731 is a clamp-on ground resistance tester used on multi-grounded systems without disconnecting the ground under test. It clamps around the ground conductor or rod and measures the resistance to ground. This allows users to verify the quality of grounding connections and bonds.
Key Features:
Benefits:
Applications:
Resources:
Key Features:
- Simple and fast clamp-on operation, eliminating the need for leads or auxiliary rods.
- Direct reading of ground resistance from 0.01Ω to 1200Ω.
- Direct reading of continuity and ground loop resistance.
- Direct reading of ground leakage or phase current from 1mA to 30Arms.
- Jaw design with a large 1.25″ (32mm) window, accommodating up to 1000MCM cables.
- Auto-off for power management.
- Alarm function with adjustable set point and buzzer for quick field checks.
- Memory function to store 99 field measurements for later retrieval.
- Rugged Lexan head and body construction.
Benefits:
- Clamp-on operation – no leads, no auxiliary rods, or spacing requirements
- Large jaw size (1.25″) – accommodates up to 1000MCM cables
- Auto-Off for power management
- Alarm function with an adjustable setpoint and buzzer for quick field checks
- Memory function to store 99 field measurements for later retrieval and analysis
Applications:
- Electrical maintenance and testing
- Grounding system installation and inspection
- Safety audits and compliance testing
- Research and development
