The AEMC Megohmmeter Model 6536 ESD Floor Test Kit is a handheld instrument designed to measure the insulation resistance of ESD flooring. ESD flooring is a type of flooring that is designed to dissipate Electro Static Discharge (ESD). ESD is a sudden and rapid transfer of electrostatic charge between two objects. It can damage electronic components and equipment.

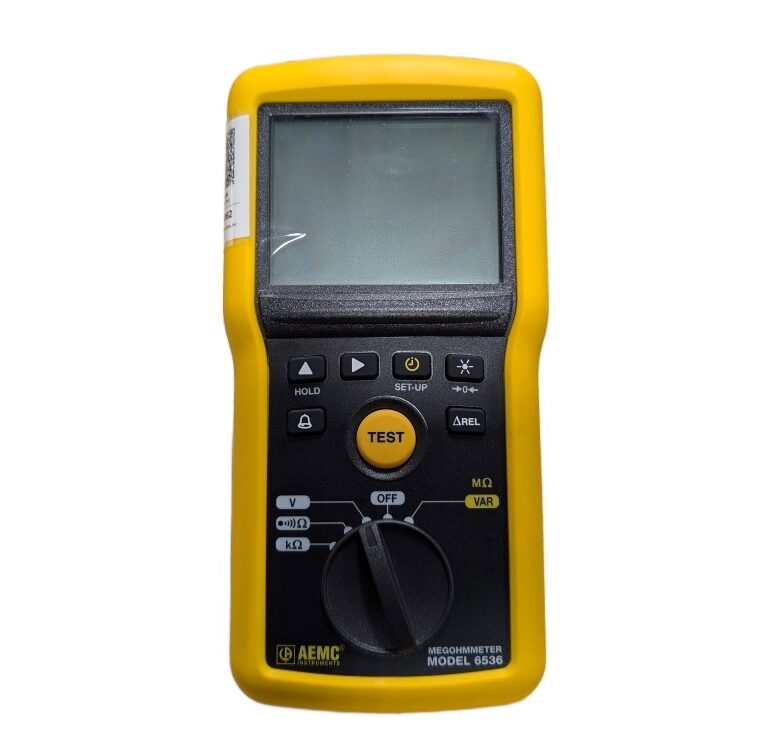

Megohmmeter Model 6536:
Key Features:
Kit Includes:
Specifications:
Benefits:
Resources:

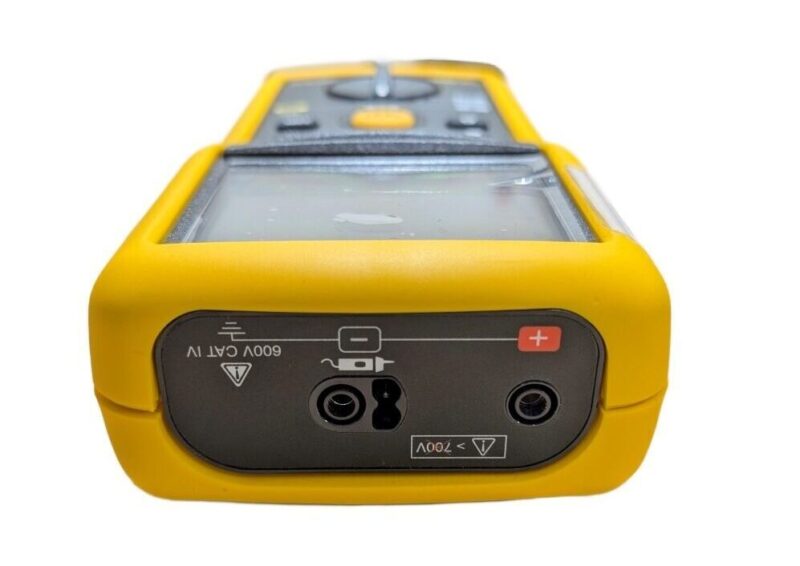

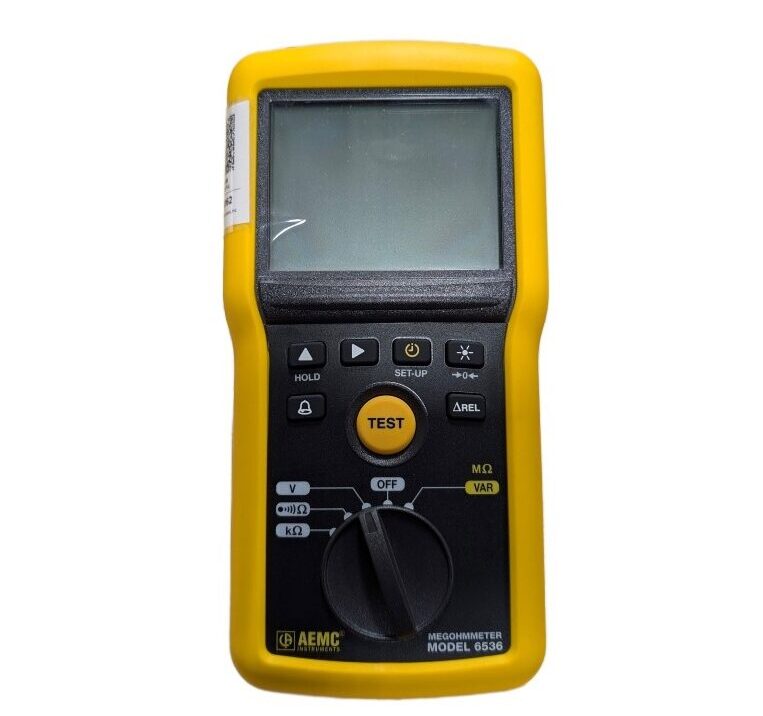

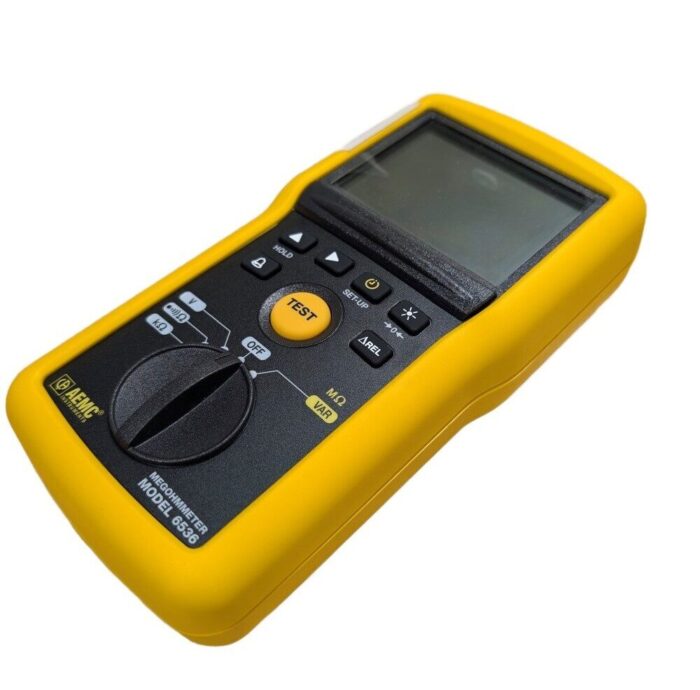

Megohmmeter Model 6536:
Key Features:
- Variable Test Voltage: Offers adjustable test voltages from 10 to 100V in 1V increments, making it suitable for a wide range of testing needs.
- Insulation Resistance Measurement: Measures insulation resistance up to 20 GΩ.
- Safety Features: Includes automatic safety checks, alarms, and test inhibition to protect the user and the meter.
- User-Friendly Design: Features a large, easy-to-read display with a blue backlight, as well as a magnetic stand for hands-free operation.
- Optional Accessories: Can be used with optional accessories like a remote test probe and an ESD floor test kit for specialized applications.
Kit Includes:
The Megohmmeter Model 6536 ESD Floor Kit includes the following items:
- Megohmmeter Model 6536

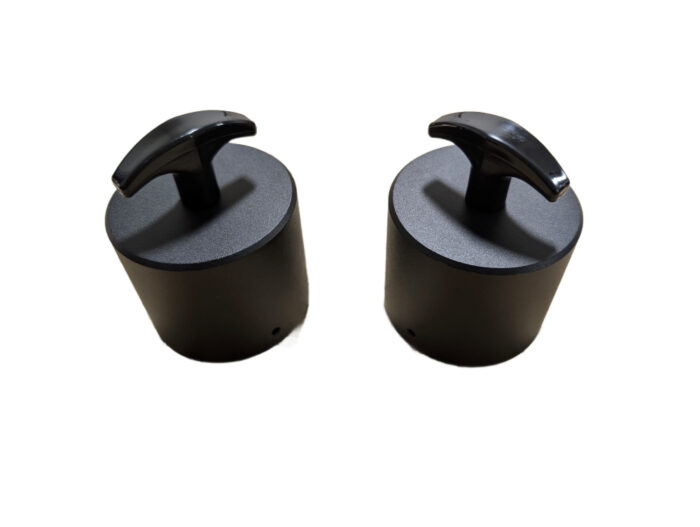

- Two 5-pound floor weights with conductive rubber bottom pads
- Two 5-foot color-coded test leads
- Two color-coded alligator clips
- Black test probe
- Two color-coded grip probes

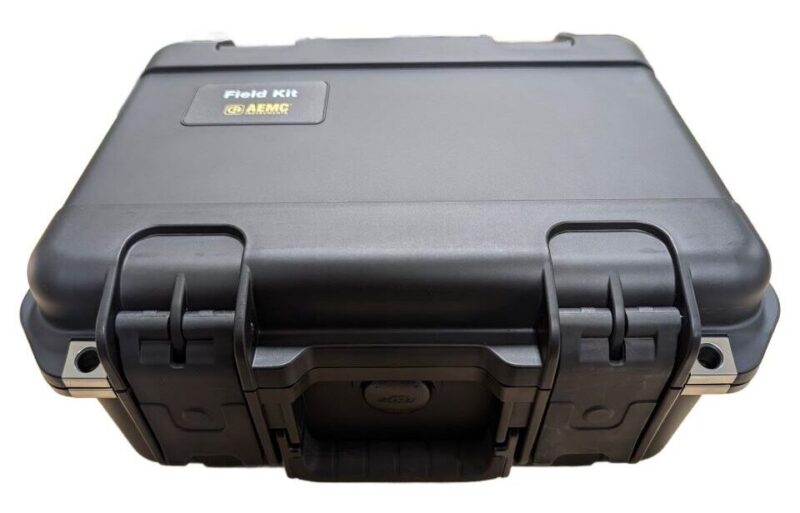

- Field case
- Six AA batteries
- User manual
Specifications:
| AC/DC Voltage Measurement | |
| Range | 0.3 to 700V |
| Accuracy | ±(3% R + 2ct) |
| Resolution | 1 to 99.9V: 0.1V 100 to 999V: 1V 1000 to 4000V: 2V |
| Frequency Range | DC & 15.3 to 800Hz |
| Input Impedance | 400kΩ |
| Insulation Measurement | |
| Test Voltage / Resistance Range | Test Voltage: Variable 10 to 100V (1V steps) 10V: 2kΩ to 2GΩ 25V: (Vtest/5)kΩ to (Vtest/5) GΩ 100V: 20kΩ to 20GΩ |
| Measurement Accuracy | 2-999kΩ only: ±(4% + 20 ct) All other ranges: ±(3% + 2 ct)+(10%V) per 100MΩ |
| Auto Discharge | Discharge time < 2s/µF From Vtest to 25V |
| Live Circuit Indicator | Inhibit test if terminal voltage > 25V prior to initialization of test |
| Continuity Measurement | |
| Ranges | 0.00 to 10Ω (200mA test current) 0.0 to 100Ω (20mA test current) |
| Accuracy | ± (2% R + 2ct) with lead compensation |
| Open Voltage | ≥ 6V |
| Resistance Measurement | |
| Range | 1Ω to 1000kΩ |
| Accuracy | ± (3% R + 2ct) |
| Open Voltage | Approximately 4.5V |
| General Features | |
| Programmable Alarm | Yes |
| Timer | 0:00 to 39:59mn, with 1s resolution |
| Display | Backlit digital with bargraph |
| Power Supply | Six AA batteries (NEDA 15A or IEC LR6) |
| Battery Life | ≥ 6000 IR tests at 100V into 100kΩ with a duty cycle of 5 seconds on and 1 min off. ≥ 3000 R tests of 1Ω with a duty cycle of 5 seconds on and 1min off. |
| Dimensions | 8.31 x 4.25 x 2.36” (211 x 108 x 60mm) |
| Weight | 1.87 lb (850g) |
| Altitude Operating | 2000m |
| Operating Temperature | -4° to +131°F (-20° to +55°C) & 20 to 80% RH |
| Storage Temperature | -22° to +176°F (-30° to +80°C) & 10 to 90% RH, without batteries |
| IP Rating | IP 54 |
| Safety Compliance | IEC/EN 61010-1, 600V CAT IV, IEC 61557 |
Benefits:
Here are some of the benefits of using the Megohmmeter Model 6536 ESD Floor Kit:
- Helps to ensure that ESD flooring is meeting its performance specifications
- Can help to prevent damage to electronic components and equipment
- Easy to use and portable
