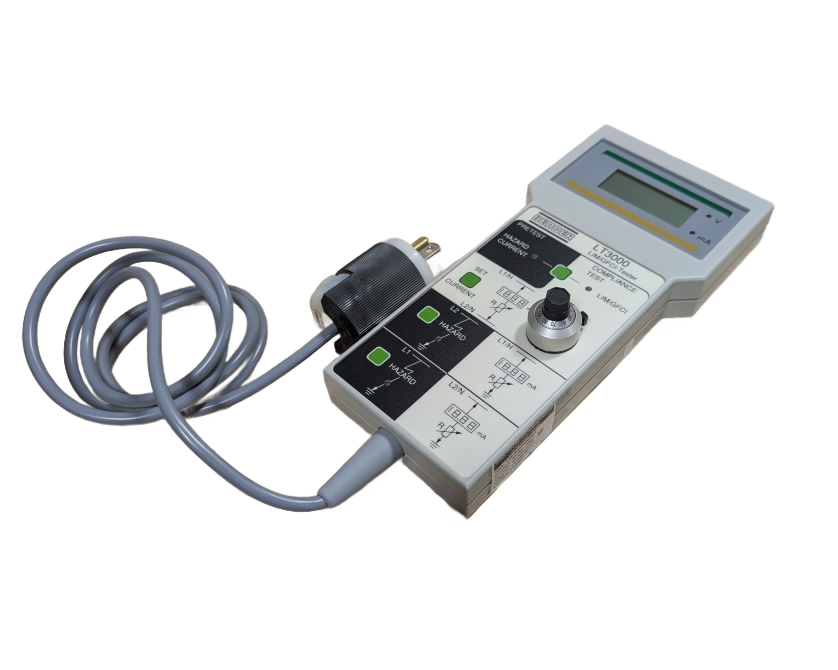

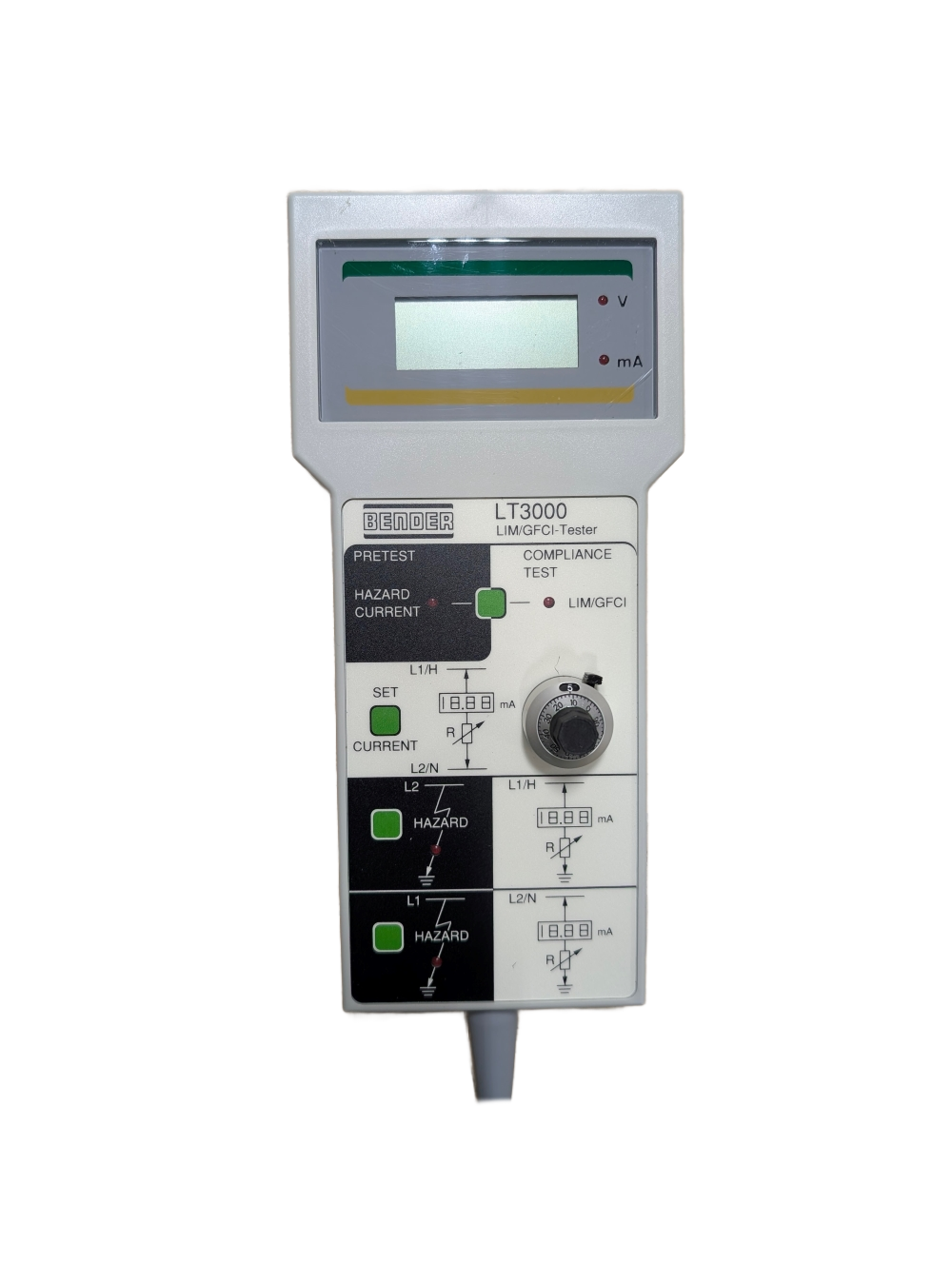

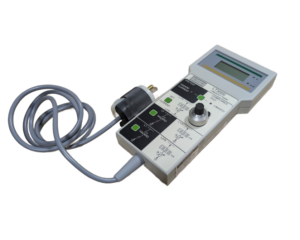

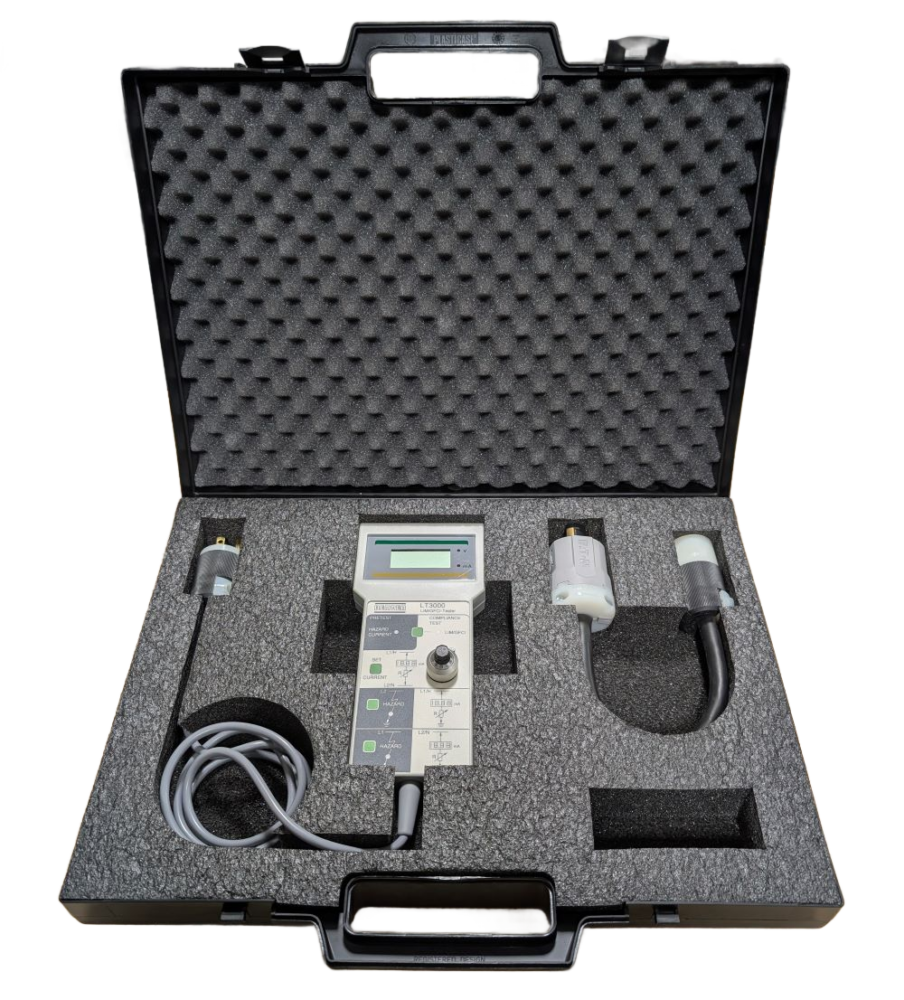

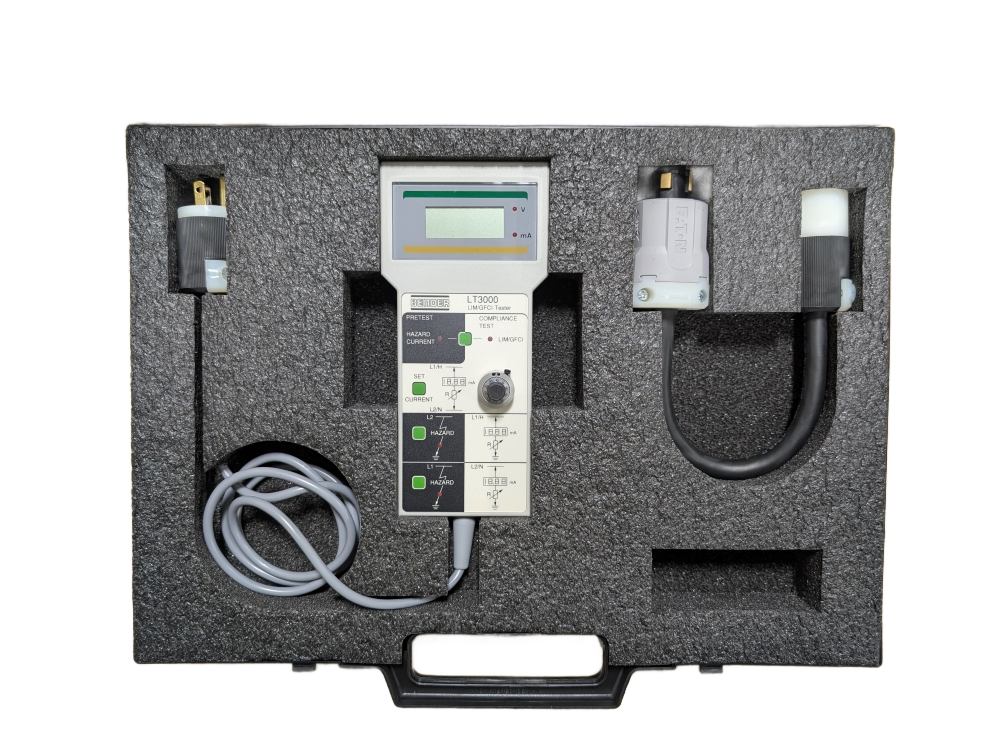

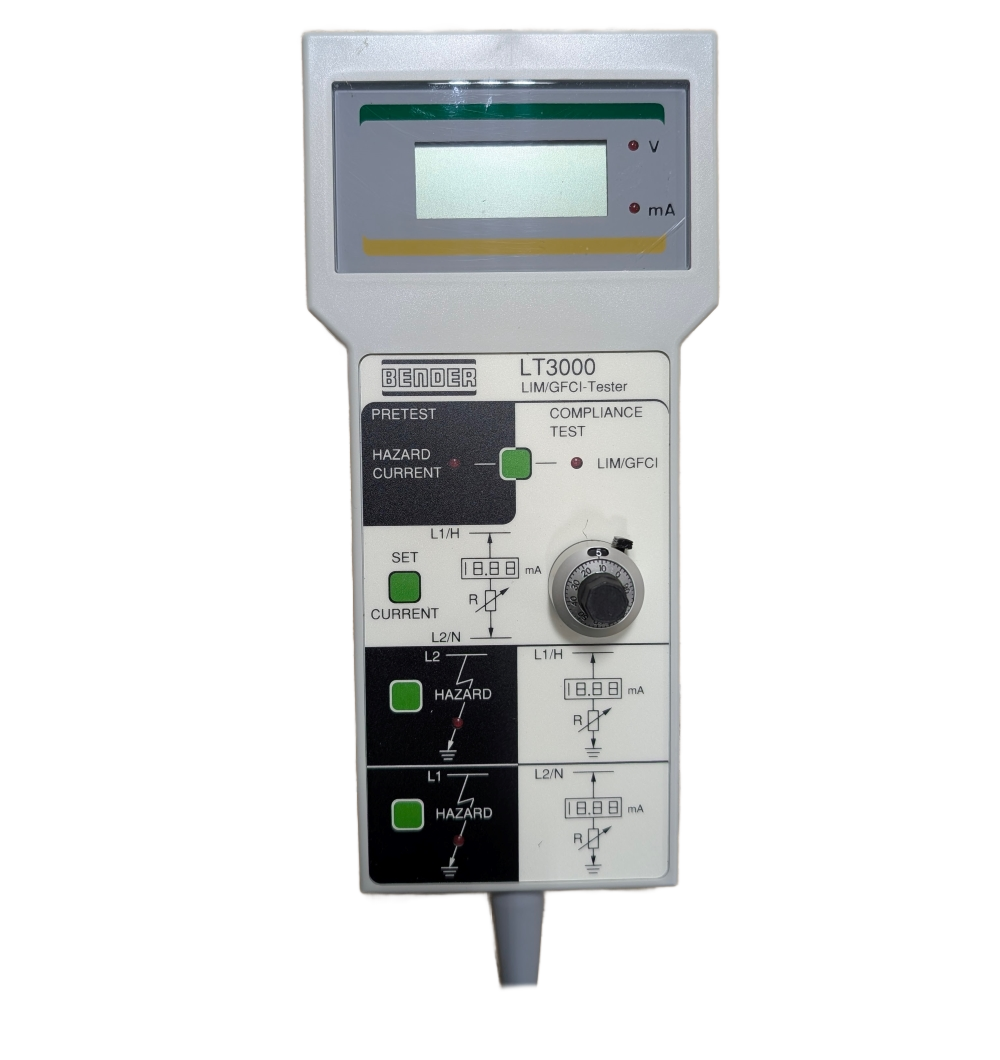

The Bender LT3000 is a versatile testing instrument designed to meet the requirements of NFPA 99 for regular testing of Line Isolation Monitors (LIMs) and Ground Fault Circuit Interrupters (GFCIs). It’s a compact and lightweight device that can be easily used to ensure the safety and reliability of electrical systems.
Key Features:
How to Use:
Resources:
Key Features:
- Wide Voltage Range: Operates on system voltages from 100 to 240 VAC, making it suitable for various applications.
- Easy-to-Read Display: Large digital LCD display provides clear visibility of test results and system information.
- Overload Protection: Built-in overload protection with automatic reset ensures durability and longevity.
- Rugged Design: Easy-to-clean, rugged Lexan front foil protects the device from damage.
- System Leakage Measurements: Accurately measures system leakage currents to identify potential hazards.
- wist-to-Lock Adapter: Securely connects the tester to the outlet for reliable testing.
- Lightweight and Portable: Weighing less than 1 pound, it’s easy to carry and transport.
How to Use:
- Plug the LT3000 into a wall outlet.
- Perform a pretest: This confirms the integrity of the isolated power system and ensures proper grounding.
- Enter LIM/GFCI testing mode: Adjust the current to the desired level (2, 5, or 6 mA) and alternate between the L1 and L2 buttons to verify correct operation.
