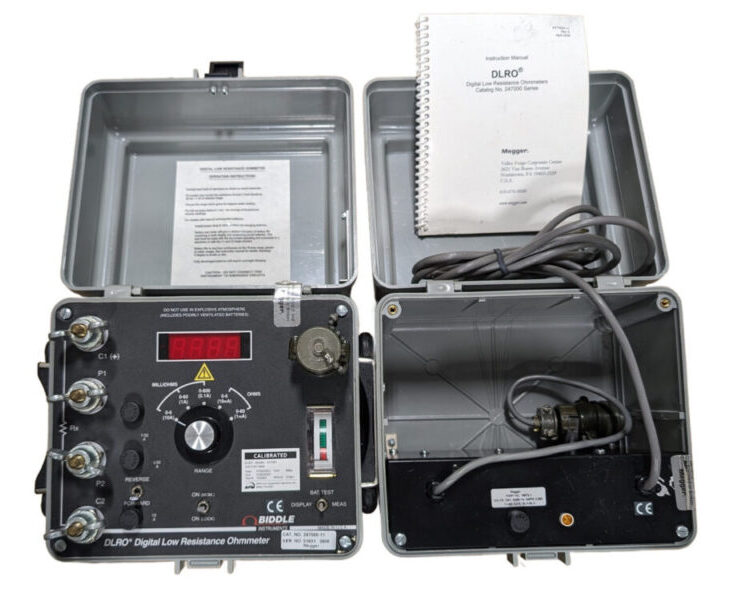

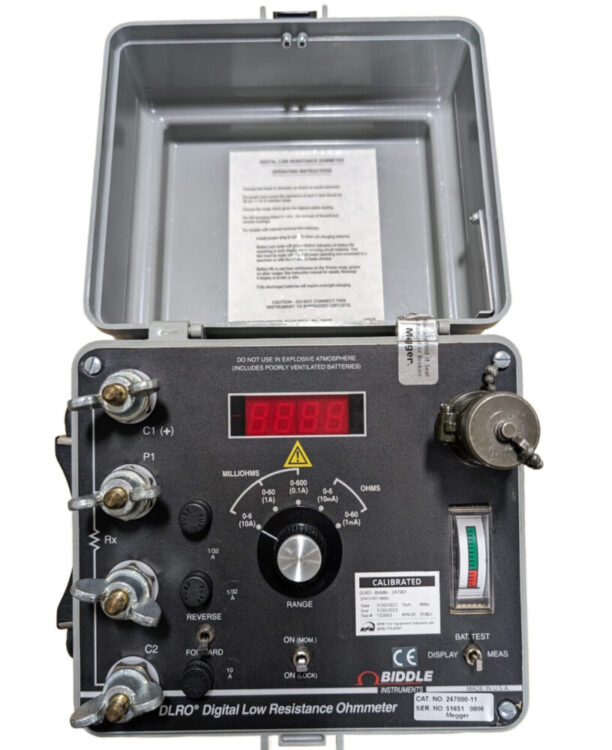

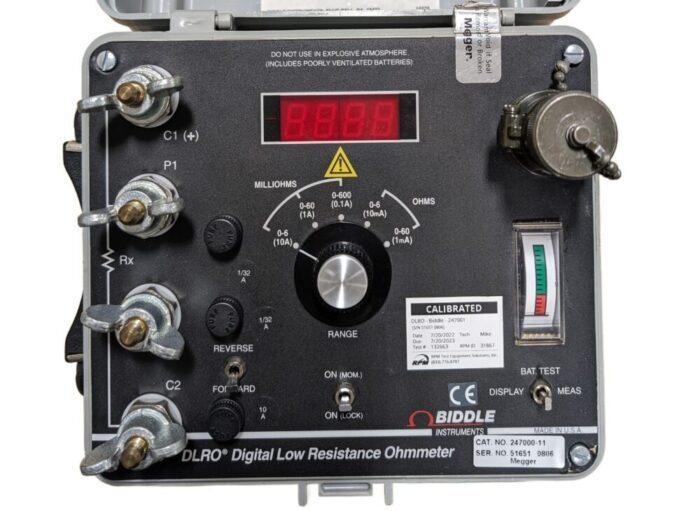

The 247001 Digital Low Resistance Ohmmeter is a highly accurate instrument proving simple, practical, and reliable low resistance measurements in the field. It operates on the four-wire measurement principle, thus eliminating lead and contact resistances.
The 247001 features a internal battery and charger for maximum portability. The 247001 is also ideal for production quality control, engineering, and development applications.
Here are some examples of how the Biddle 247001 can be used:
- A power plant technician can use the Biddle 247001 to test the resistance of the windings in a generator to ensure that they are in good condition.
- An electrician can use the Biddle 247001 to test the integrity of the electrical connections in a building to ensure that they are safe.
- A quality control inspector can use the Biddle 247001 to test the resistivity of materials to ensure that they meet the required specifications.
- A welding contractor can use the Biddle 247001 to test the integrity of welds to ensure that they are strong and reliable.
The Biddle 247001 has a wide measurement range, from 1 microhm to 59.99 ohms, and a resolution of 0.1 microhm. It is also capable of measuring very high currents, up to 10 amps. This makes it ideal for testing a wide variety of electrical components and systems.
The Biddle 247001 is a popular choice for industrial and commercial applications, as it is rugged and reliable. It is also relatively easy to use, making it a good choice for both experienced and novice users.
- Testing electrical connections and circuits
- Measuring the resistance of windings in motors and generators
- Testing the resistivity of materials
- Testing the integrity of welds and other bonds
- Accuracy: ±0.25%
- Power source:Â Rechargeable batteries with internal charger
- Weight:Â 12.5 lb
- Size:Â 300 mm (12.0 in)H x 160 mm (6.0 in)W x 250 mm (10.0Â in)D
