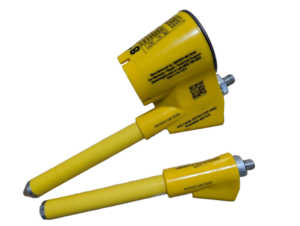

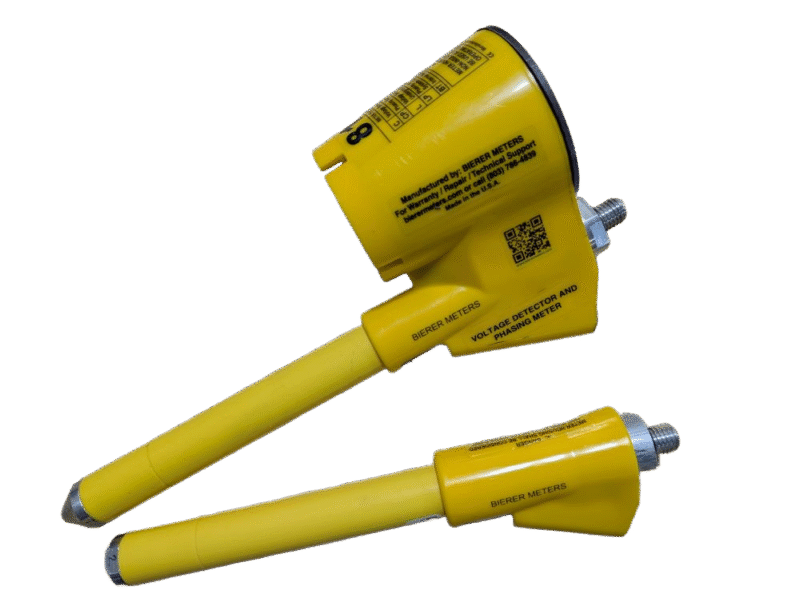

The Bierer 81280 is a unique tool in that it may be used as a conventional phasing meter, or the meter probe may be used as a stand-alone voltage detector on primary or secondary voltages or capacitive test points.
Features:
The 5-Position Selector Switch Consists of:
Resources:
Features:
- Can be used as a Stand-Alone Voltage Detector without the Second Probe
- A Conventional Phasing Meter both Overhead and URD Applications
- Phase Capacitive Test Points
- A Large Easy to Read Analog Meter
- Meter Housing is Completely Shielded to Minimize Stray Field Indications
- An Insulated (35kV) Interconnect Cable with Second Probe
- Each Probe is Impact and Water Resistant

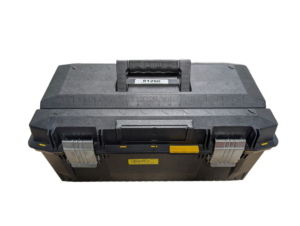

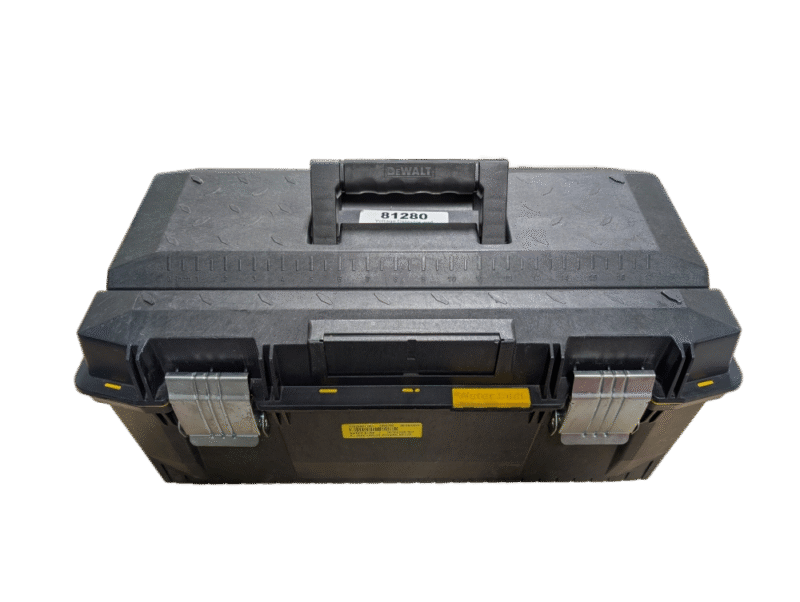

- Meter is Stored in a Highly Durable Padded Carrying Case
The 5-Position Selector Switch Consists of:
- C – Indicates the Voltage on Capacitive Test Points
- CP – Phases Using Capacitive Test Points
- L – Detects Voltage on Overhead and Underground Lines
- LP – Phases on Overhead and URD Primary Systems
- BT – Tests Internal Meter Circuitry by Using Internal Battery Voltage, Meter should Deflect Full Scale
Resources:

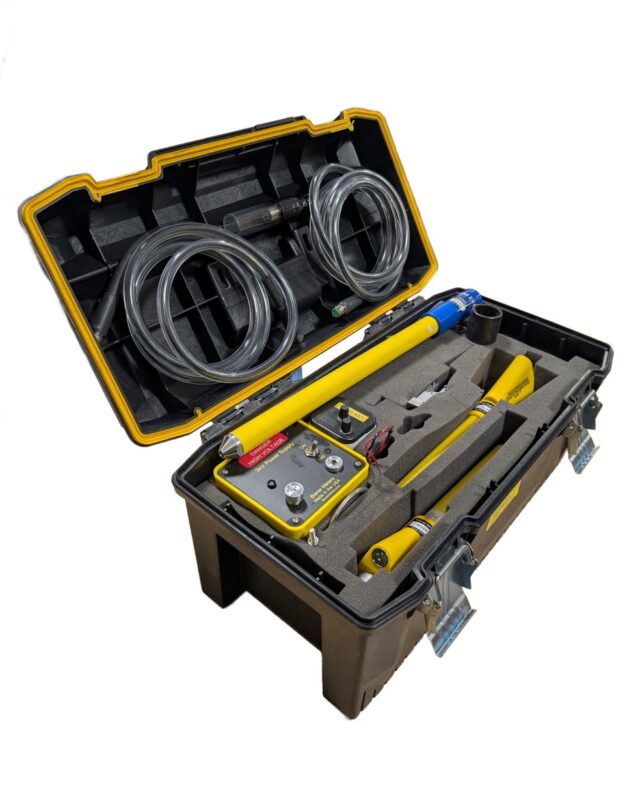

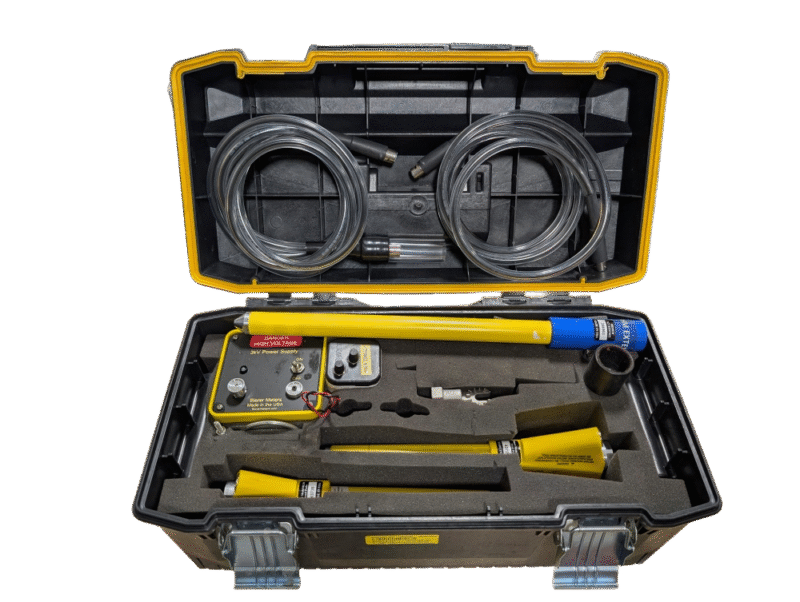

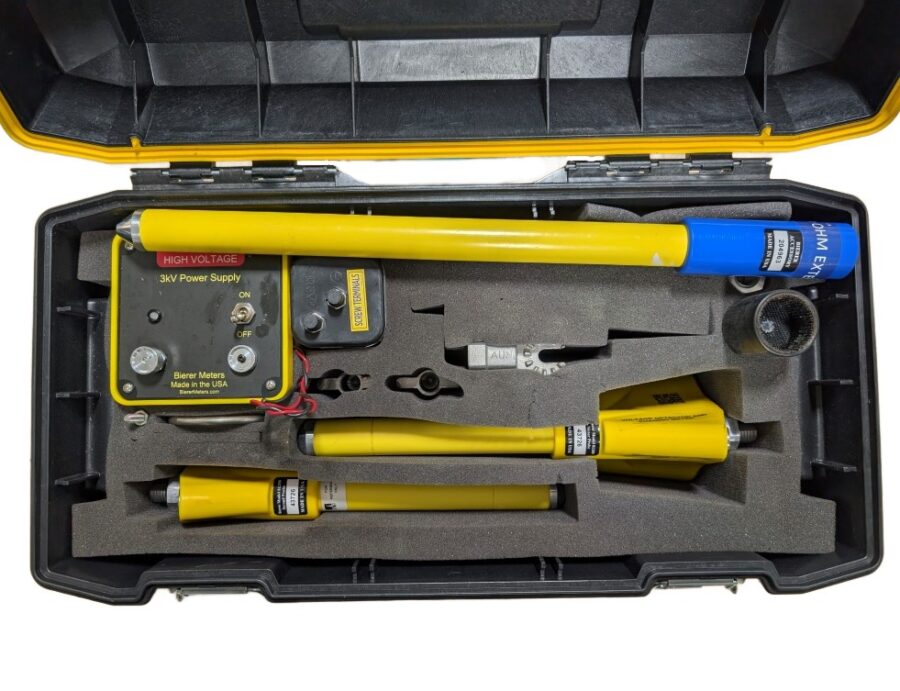

Each 81280 Kit comes standard with a straight probe (81280LPM), hook probe (81280LHM), 8ft. interconnect cable (81280ML), 8ft. extension cable (81280FL), 3kV power supply (PA25T), 6VDC battery (81280B1), instruction manual, padded storage case.
