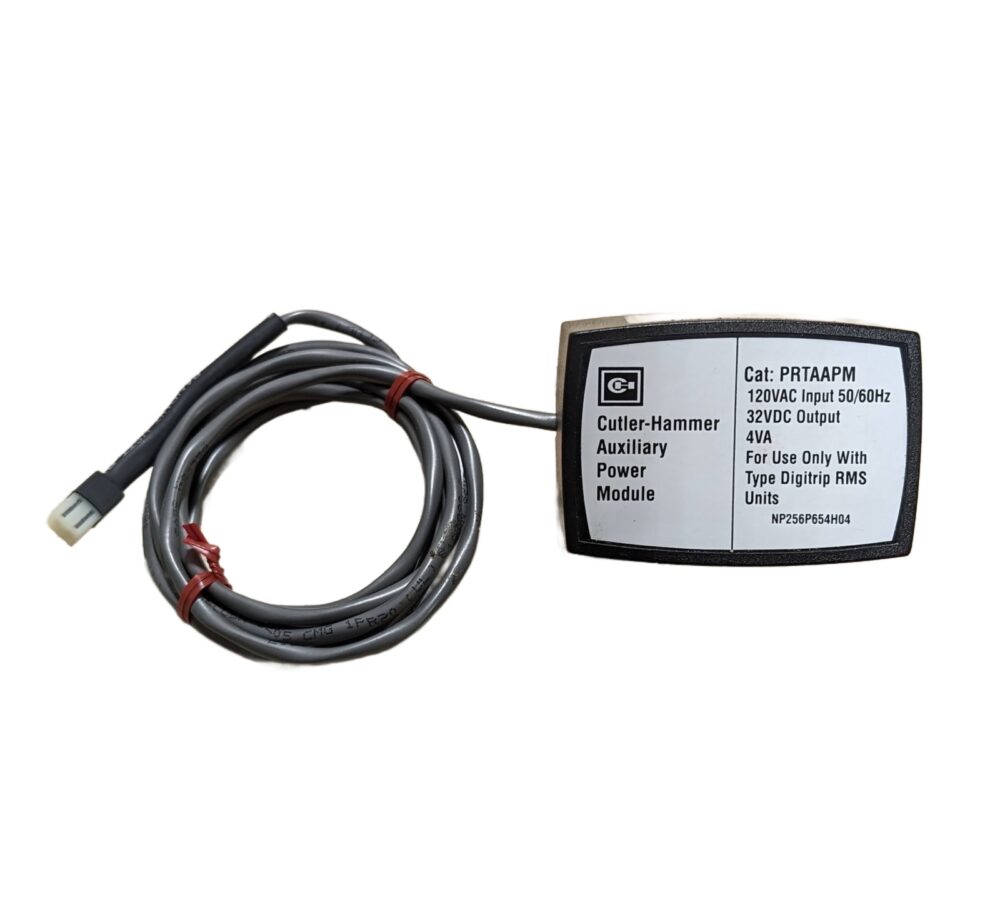

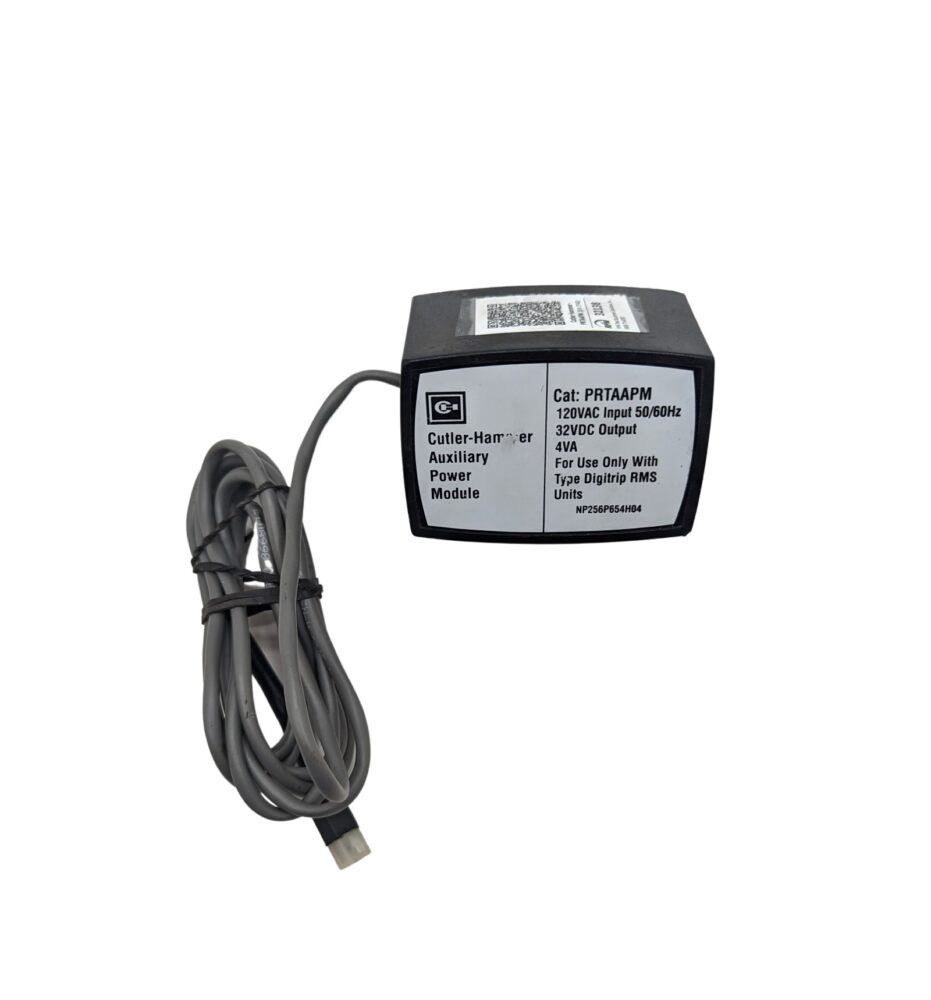

The Cutler Hammer PRTAAPM (Auxiliary Power Module) is a device that provides power to Digitrip trip units for testing purposes. It is used in conjunction with the Cutler Hammer 140D481G03 Test Kit.
To use the PRTAAPM, the Digitrip trip unit must be connected to the PRTAAPM’s output terminals. The PRTAAPM is then connected to a 120VAC power source.
Once the PRTAAPM is powered on, it will provide power to the Digitrip trip unit. The Digitrip trip unit can then be tested using the Cutler Hammer 140D481G03 Test Kit.
The PRTAAPM is a safety device that helps to prevent electrical hazards during testing. It provides a controlled source of power to the Digitrip trip unit, which helps to ensure that the trip unit is not damaged during testing.
- Provides a safe and controlled source of power for testing Digitrip trip units.
- Helps to prevent electrical hazards during testing.
- Easy to use.
- Reliable.
- Always disconnect the PRTAAPM from the 120VAC power source before connecting or disconnecting the Digitrip trip unit.
- Do not touch any live electrical components while the PRTAAPM is powered on.
- Always wear appropriate personal protective equipment (PPE)
- Electrical utilities
- Industrial facilities
- Commercial buildings
- Data centers
- Other facilities where Digitrip trip units are used for protection
