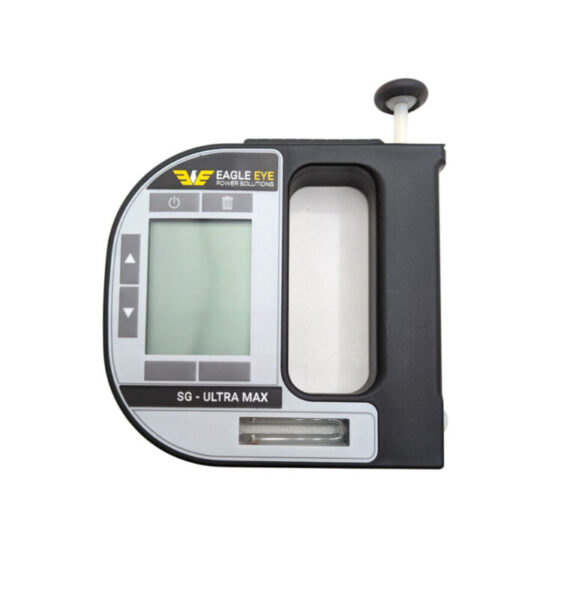

The SG-Ultra Max (Specific Gravity) Digital Battery Hydrometer, Density Meter measures the density and density-related values of your sample within seconds. Results appear on the backlit LCD screen and are ready for storage, printout or export to a PC.
The lightweight and robust design enable on-site operation in a wide range of environments. Completely sealed, pump spills do not enter the electronic battery hydrometer.
- Accuracy:Â 99.999%, accurate
- User Friendly:Â Compact, lightweight and allows for one-hand measurement
- Wireless Communication:Â Infrared data interface for data exchange with a PC and data export to a printer
- Storage:Â Stores up to 1,024 total measurement results including time stamp and sample ID
- Reliable:Â CE compliant and one year warranty
Specifications
| Measurement Range | Density: 0.000 – 3.000 g/cm3 Sample Temperature: 0° – 40°C (32° – 104°F) Viscosity: 0 – 1,000 mPa |
|---|---|
| Accuracy | Density: 0.001 g/cm3 Temperature: ±0.2 °C (±0.4 °F) |
| Resolution | 0.0001 g/cm3 |
| Repeatability | 0.0005 g/cm3 |
| Minimum Sample Volume | 2 mL |
| Communication | IrDA Interface |
| Display | Backlit LCD |
| Internal Storage | 1024 Results |
| Operating Environment | 10 – 50 °C (-15 – 122 °F) |
| Power Requirements | (2) AAA Batteries |
| Dimensions | 140 x 138 x 27 mm (5.5 x 5.4 x 1.0 in) |
| Weight | 368 g (13 oz) |
The SG-Ultra Max (Specific Gravity) Digital Hydrometer and portable density meter feature leak-proof housing for operation in industrial and field applications including battery testing for utilities and telecoms, food & beverage testing, quality control, biotechnology, and many more. Supported measuring units include density, density at reference temperature, specific gravity, alcohol, API, °Baumé, °Brix, and five programmable custom functions to ensure your measurement requirements.
