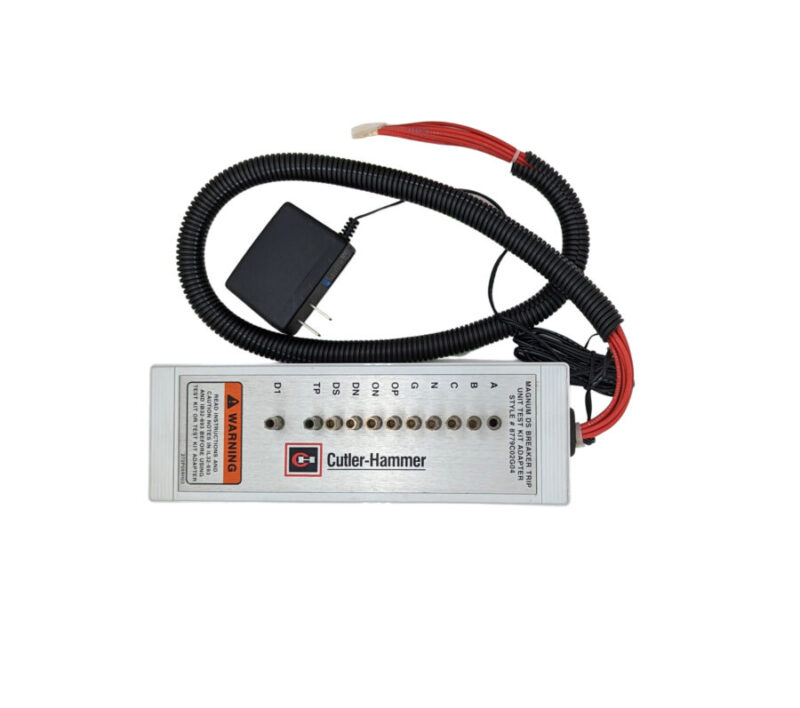

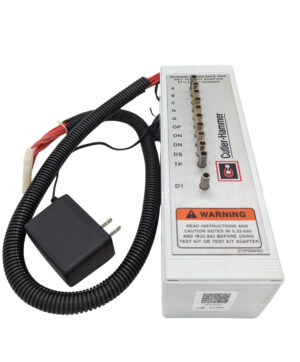

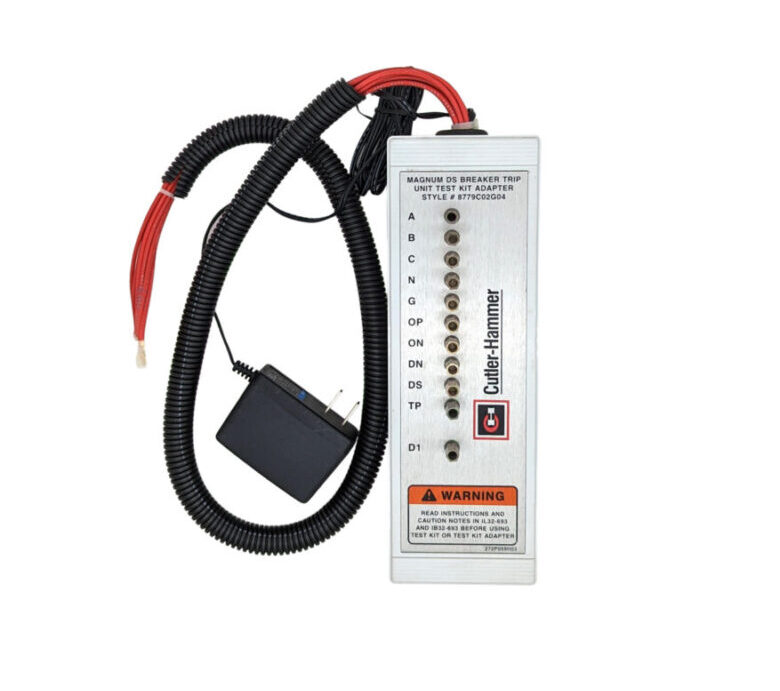

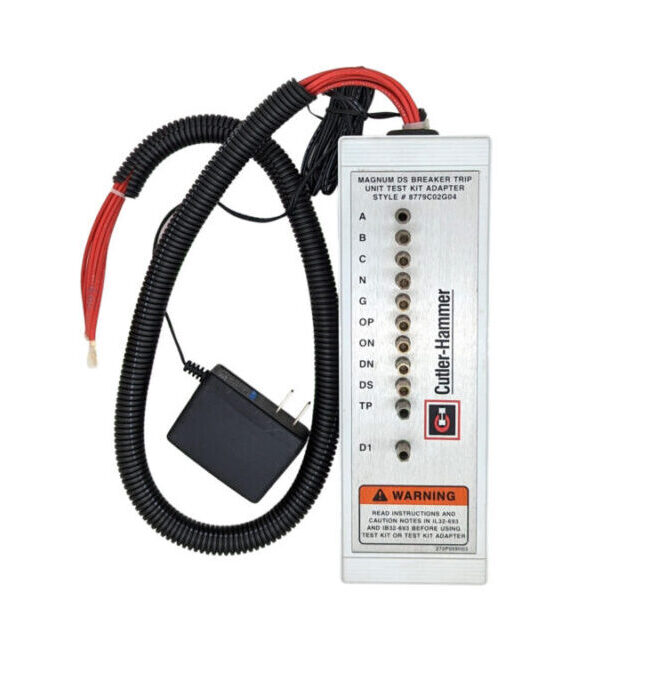

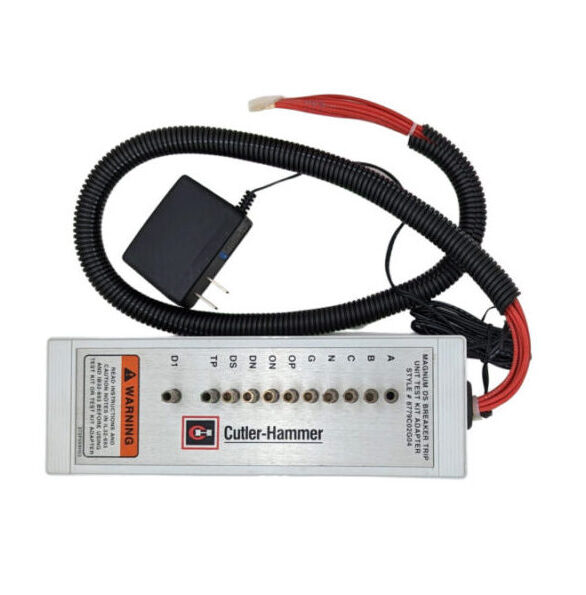

The Eaton Cutler Hammer 8779C02G04 is an adapter that is used to test Magnum DS breakers with Digitrip 220, 520, and 1150 trip units. It converts the 11-pin banana plug on the test kit to a 14-pin plug that is required to plug into the Trip Unit Test Port located on the face of the Trip Unit.
The 8779C02G04 adapter is part of the Model 140D481G03 test set, which is used to test Magnum DS breakers. The test set also includes a power supply, a current transformer, and a variety of test leads.
Features:
Specifications:
Resources:
Features:
Here are some of the features of the Eaton Cutler Hammer 8779C02G04:
- It serves as an interface, converting the connection from an 11-pin banana plug (found on certain test kits) to a 14-pin plug, which is compatible with the trip unit test port on the Magnum DS breaker.
- This adapter facilitates the testing of Eaton Magnum DS circuit breakers, specifically those equipped with Digitrip 220, 520, and 1150 trip units.
- Part of the 140D481G03Â test set
- Safe and easy to use
- In essence, it bridges the gap between the test equipment and the circuit breaker’s trip unit.Â
Specifications:
- Manufacturer: Eaton / Cutler-Hammer
- Model Number: 8779C02G04
- Product Type: Magnum DS Test Kit Adapter
- Compatibility: Used for testing Magnum DS breakers with Digitrip 220, 520, and 1150 trip units.
- Connection Type: Converts an 11-pin banana plug to a 14-pin plug.
- Required for use with: Test kits such as the 140D481G03 and potentially 140D481G04.
- Weight: Approximately 7.2 lbs (shipping weight).
- Condition: Often found as used, refurbished, or surplus. New old stock may also be available.
Resources:
Manual ⇓
