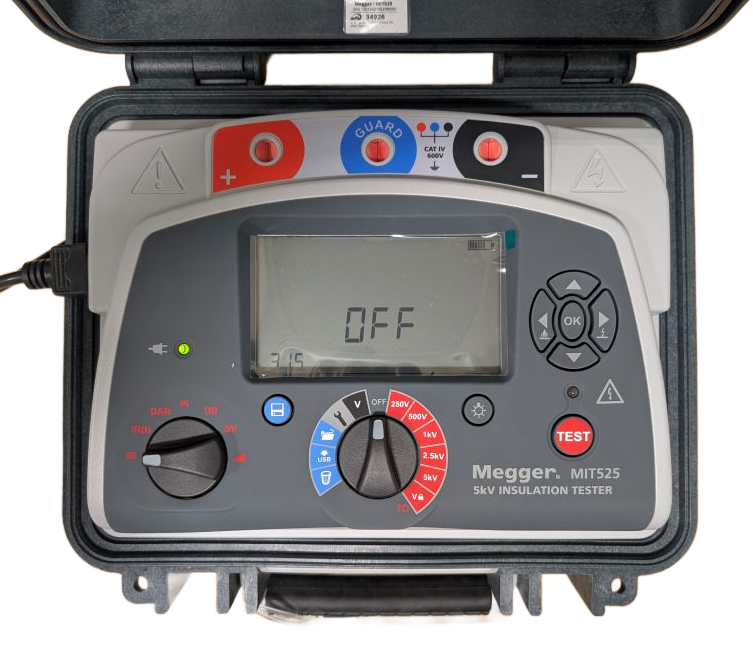

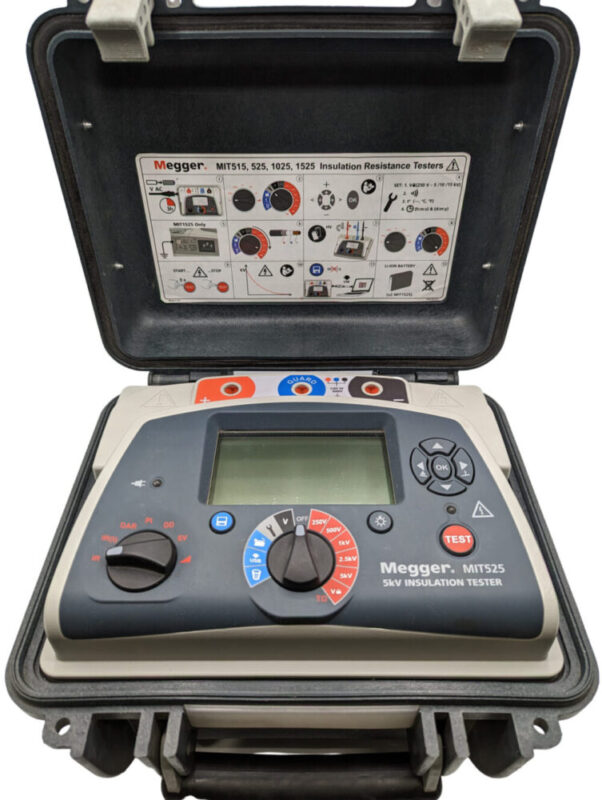

The Megger MIT525 is a 5 kV insulation resistance tester that is used to measure the insulation resistance of electrical equipment. It is a CAT IV rated instrument, which means that it can be used safely in high-voltage environments.
MIT525
Benefits:
Features:
Specifications:
Applications:
Resources:
MIT525
The MIT525 offers a variety of test modes, including timed insulation resistance (IR), polarization index (PI), dielectric absorption ratio (DAR), dielectric discharge test (DD), step-voltage (SV), and ramp testing. It also has a large, clear display that makes it easy to read the test results.
Benefits:
- Accurate and reliable measurements: Provides precise test results for assessing insulation integrity.
- Versatile testing capabilities: Offers various test modes to suit different applications and testing needs.
- Easy to use: Features a user-friendly interface with clear displays and intuitive controls.
- Durable and portable: Designed for field use with a rugged construction and convenient portability.
Features:
Here are some of the features of the Megger MIT525:
- Measures insulation resistance from 10 kilohms to 10 teraohms
- Voltage range of 30 to 660 V AC or DC
- Current range of 0.01nA to 6mA
- Capacitance range of 10 nanofarads to 25 microfarads
- CAT IV rated
- Large, clear display
- Lithium-ion battery
Specifications:
- Test voltage: Adjustable from 50 V to 5 kV
- Resistance range: Up to 10 TΩ
- Short circuit current: 3 mA
- Safety rating: CAT IV 600 V
- Weight: Approximately 5.4 kg (11.9 lbs)
Applications:
- Testing insulation resistance of cables, transformers, motors, generators, and other high-voltage equipment.
- Performing diagnostic tests to evaluate insulation condition and identify potential problems.
- Preventive maintenance testing to ensure the reliability of electrical systems.
