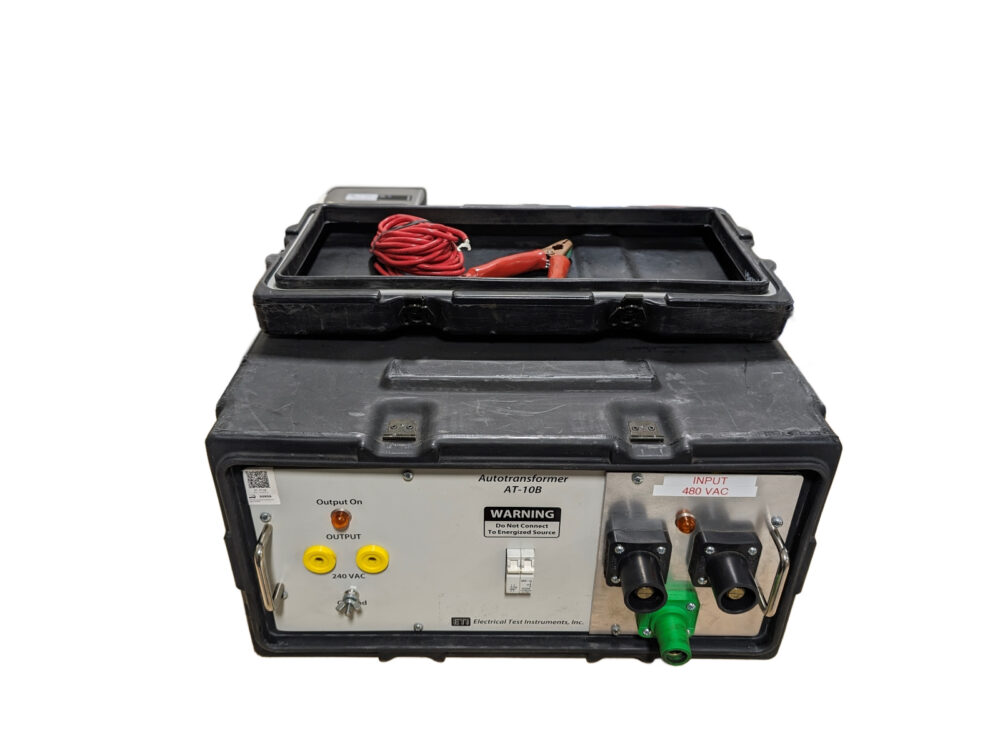

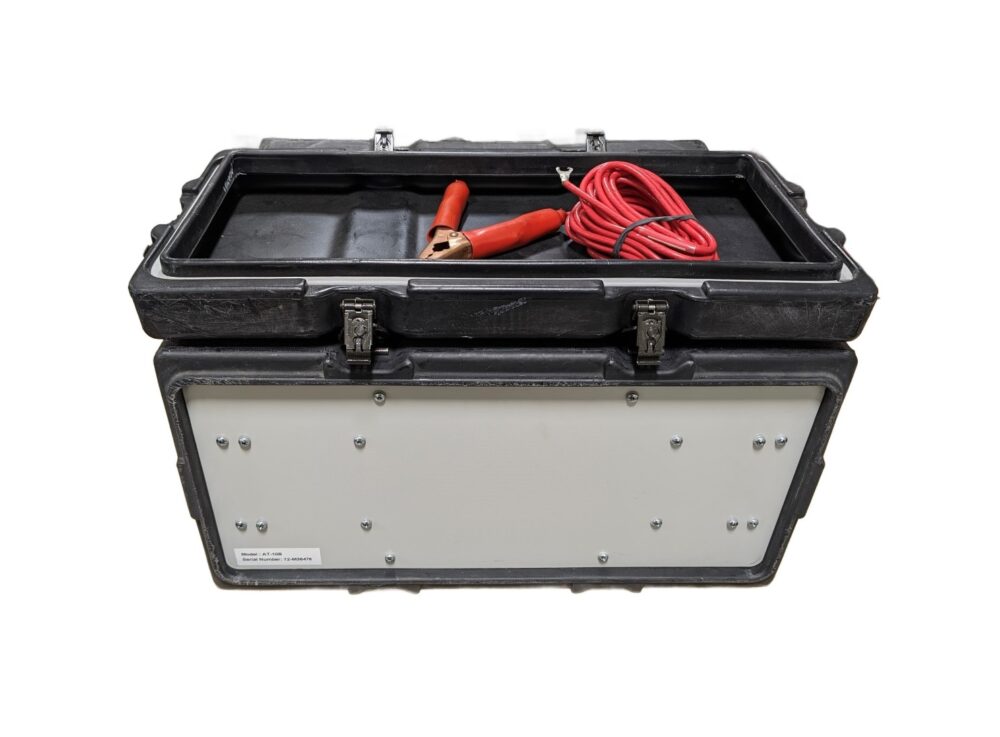

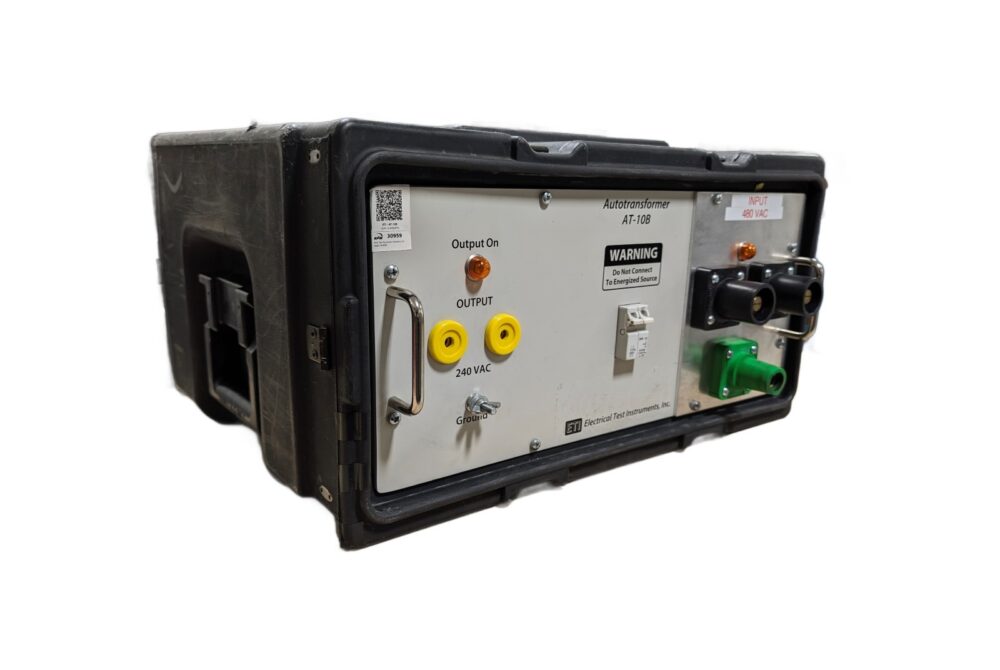

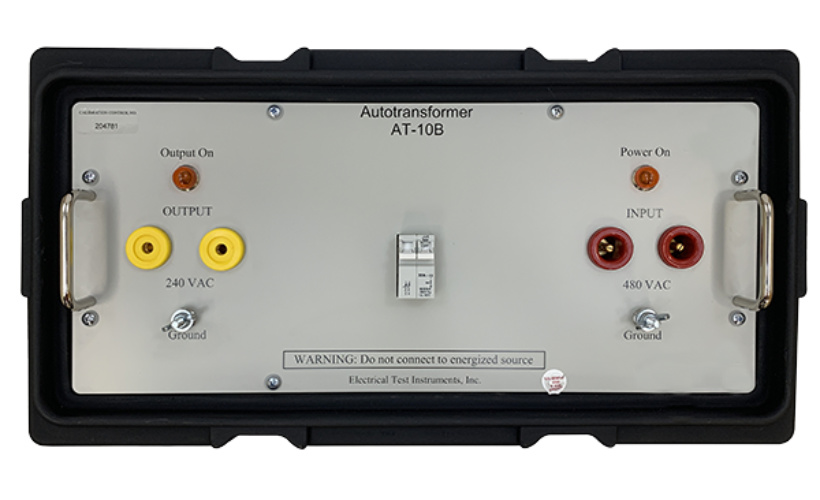

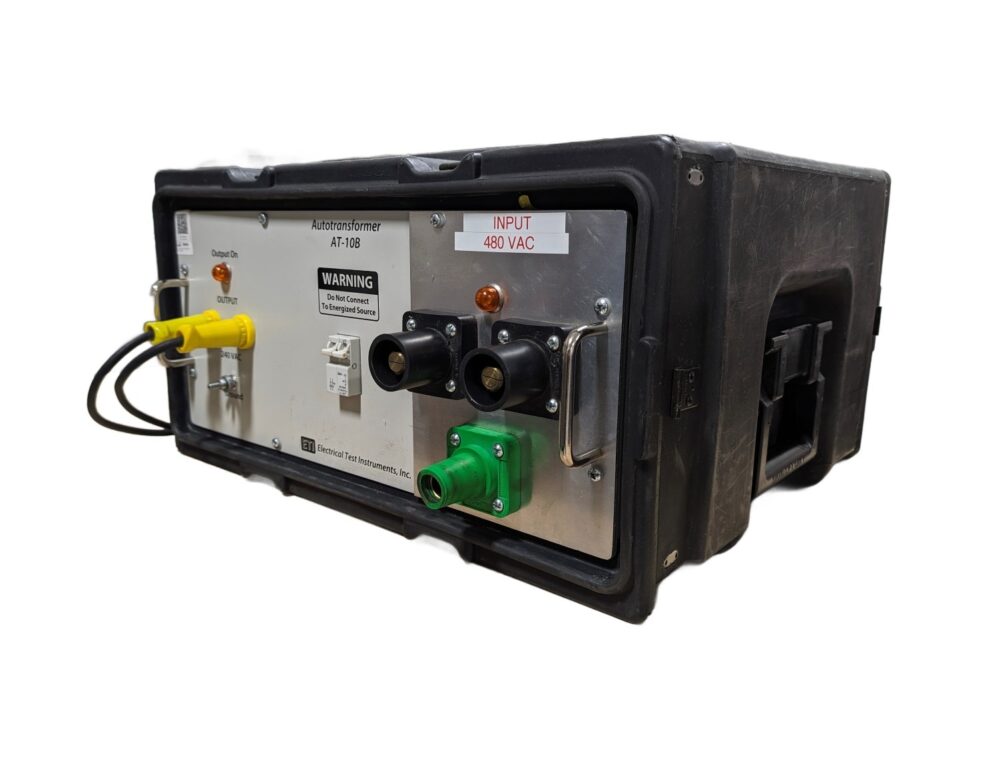

The ETI AT-10B is an autotransformer designed to be used with ETI’s PI-1600 and PI-800 circuit breaker testers.
If you’re using ETI’s PI-1600 or PI-800 circuit breaker testers and need to work with 480V power supplies, the AT-10B is an essential accessory. It ensures that you can utilize the full capabilities of your testers regardless of the available voltage.
Here’s what you need to know about it:
Purpose:
Key Features:
Benefits:
Specifications:
Resources:
Purpose:
- The AT-10B allows you to operate your ETI PI-1600 or PI-800 circuit breaker testers at full capacity on both 240V and 480V AC power supplies.
- It effectively steps down 480V to 240V, enabling these testers to be used in situations where only 480V is available.
Key Features:
- Portable: Designed for easy transport and use in the field.
- Rugged Construction: Housed in a durable ABS enclosure to withstand tough working conditions.
- 10 kVA Capacity: Provides 240V at 10 kVA, allowing for full-capacity operation of the compatible circuit breaker testers.
- Thermal Overload Protection: Equipped with thermal overload switches to prevent damage in case of prolonged overload.
Benefits:
- Flexibility: Enables the use of ETI’s circuit breaker testers on both 240V and 480V power supplies.
- Convenience: Eliminates the need for separate transformers or rewiring when working with different voltage sources.
- Portability: Easy to transport and use on-site.
Specifications:
- Input Voltage: 480V AC
- Output Voltage: 240V AC
- Power Rating: 10 kVA
- Dimensions: Approximately 22″ x 11″ x 22″
- Weight: Less than 125 lbs.
