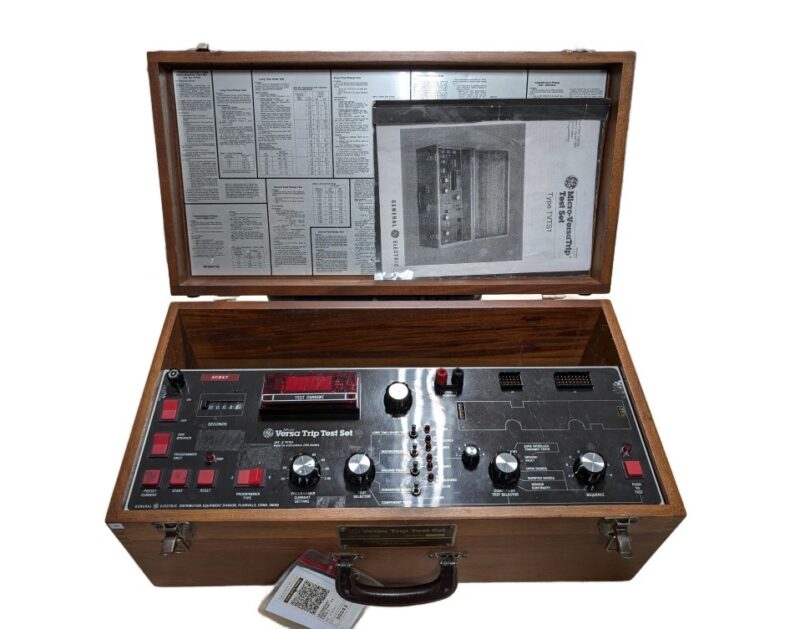

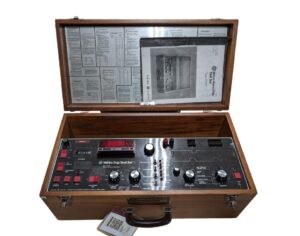

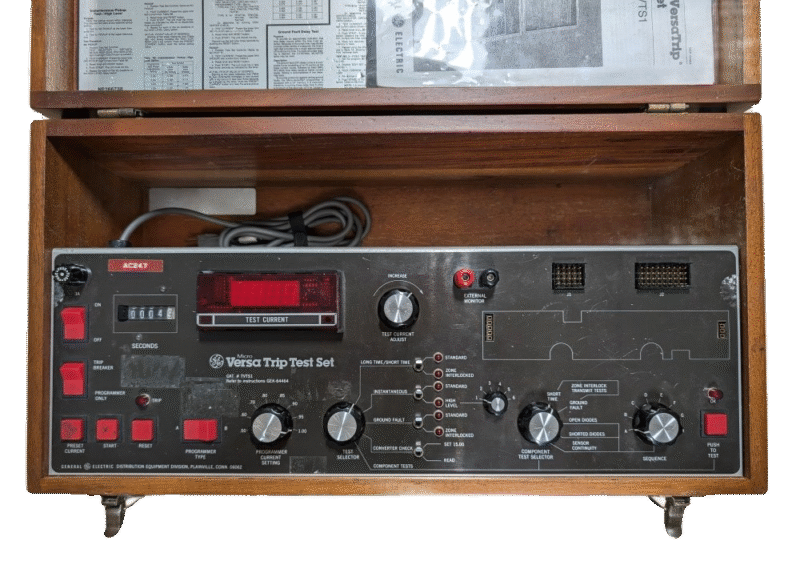

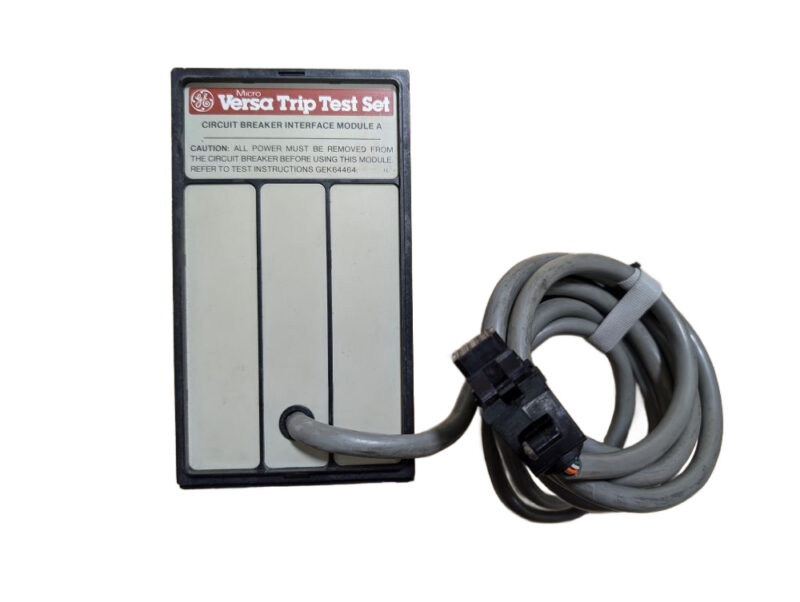

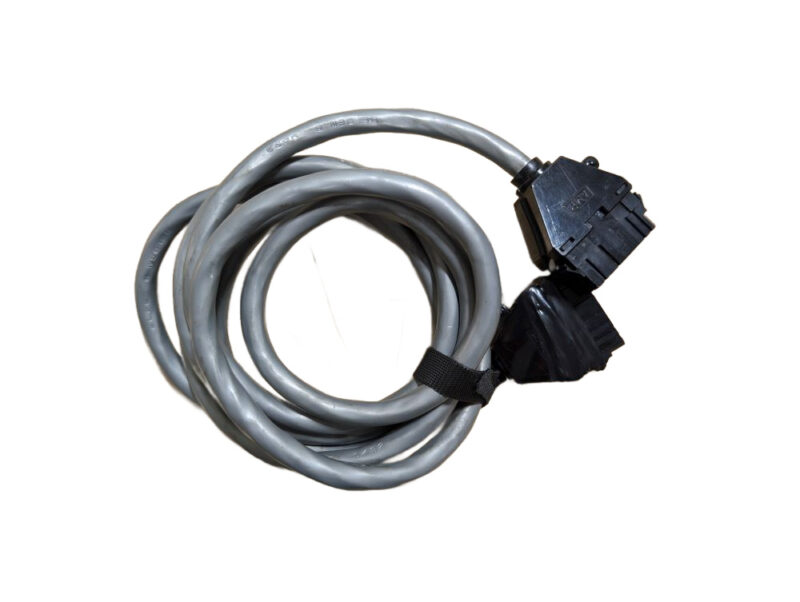

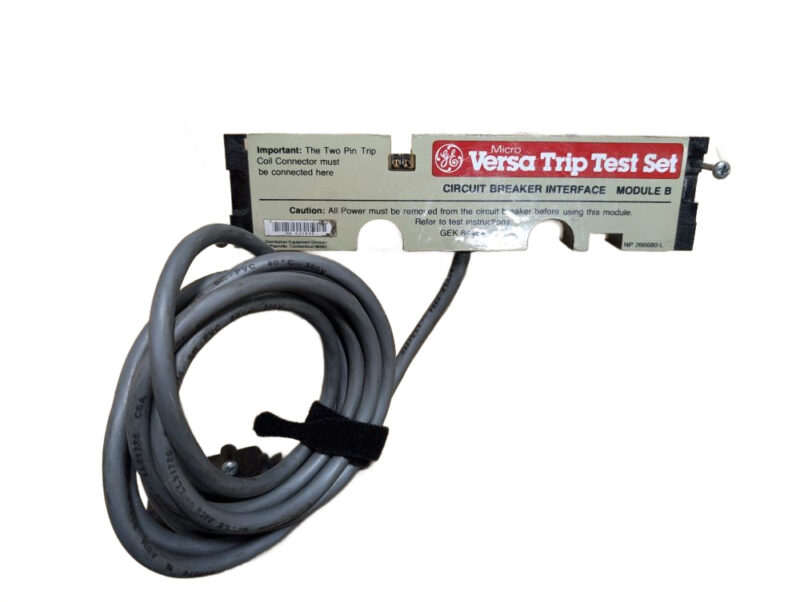

The General Electric (GE) TVTS1 Secondary Injection Test Set is a portable unit for the field testing of Micro-VeraTrip solid-state programmers.Â
Its purpose is to verify the functionality of these protection systems.
Specifications:
Features:
Key Functionality:
Key Considerations:
Resources:
Specifications:
- Purpose: Secondary injection testing of Micro-VeraTrip trip units. Input: 105-125 Vac, 50/60 Hz.
- Power Consumption: 60 Watts.
- Weight: Approximately 30-35 lbs (variations exist based on included cables and case).
- Dimensions:
- Dimensions vary slightly depending on the source. Approximate dimensions are around: 22.5″ L x 12″ W x 10″ H.
- Shipping dimensions will be larger to accommodate packaging.
Features:
It allows for testing in two modes:
- Testing the solid-state programmer only.
- Testing the complete trip system.
Key Functionality:
- Tests various Micro-VeraTrip trip unit models (e.g., TP4VT, TP9VT, T4VT, T9VT, TAVT, etc.).
- Simulates electrical conditions to verify trip unit response
- It is used to test the time current curves of the microversatrip units.
Key Considerations:
- This equipment is designed for specialized electrical testing.
- Safety precautions are essential when working with electrical testing devices.
- Because this is an older piece of equipment, many items found for sale are used, or refurbished.
Resources:
Manual ⇓
