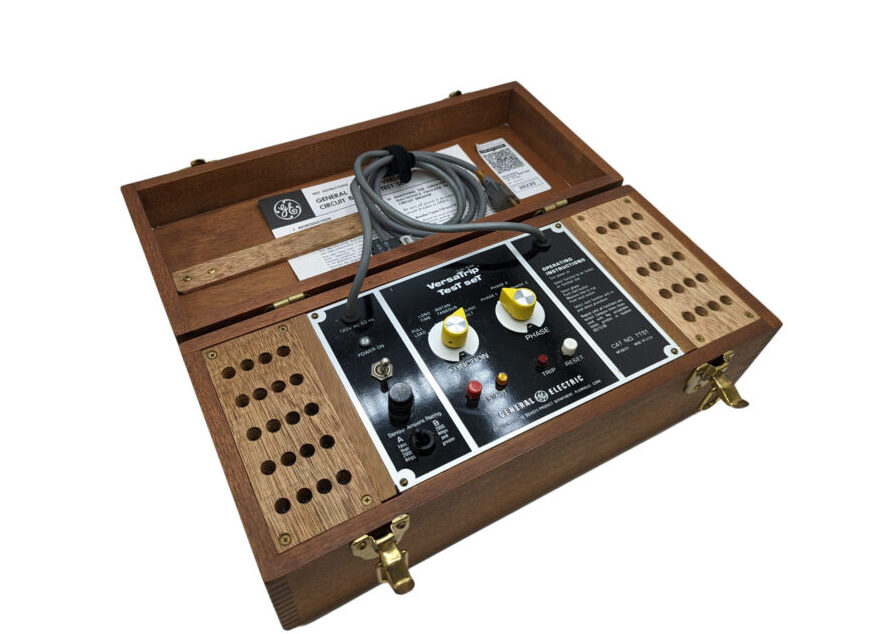

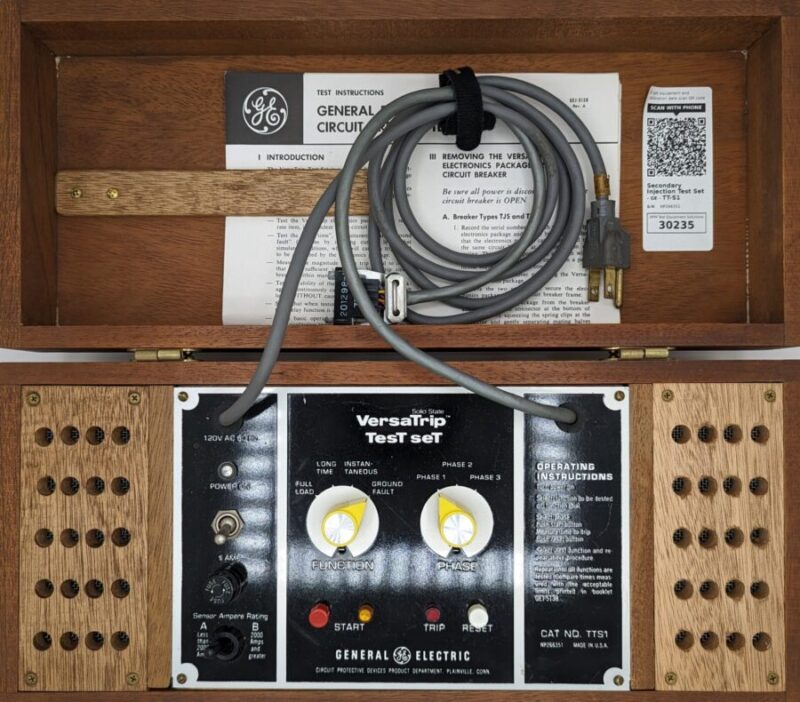

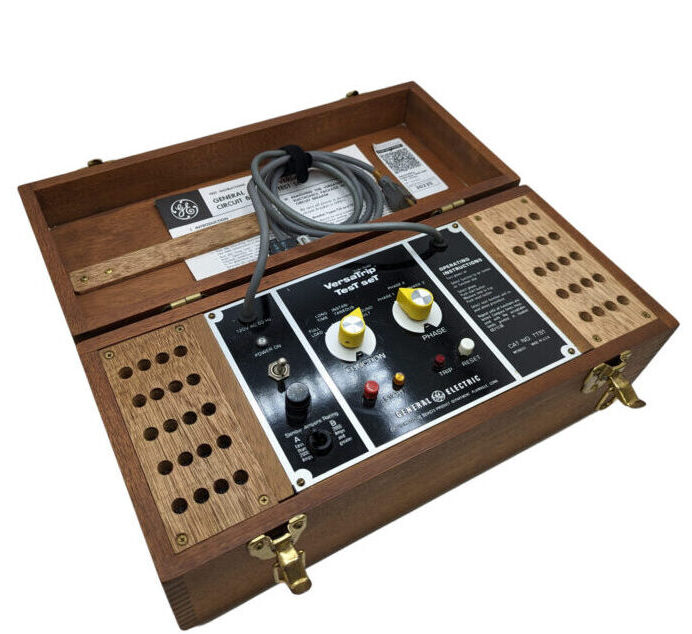

The GE Versa Trip TTS-1 is a test set that is used to test the operation of Versa Trip circuit breakers.
The GE VersaTrip TTS-1 test set can be used to test the following types of circuit breakers and trip units:
- Molded case circuit breakers (MCCBs): AK, AKR, AKR-N, and AKR-NB
- Electronic trip units:Â MicroVersaTrip Plus and MicroVersaTrip PM
To use the TTS-1, connect the test leads to the circuit breaker and then select the function that you want to test. The TTS-1 will then generate a current or voltage that will cause the circuit breaker to trip. If the circuit breaker trips, then the test is successful. If the circuit breaker does not trip, then the test has failed and the circuit breaker may need to be repaired or replaced.
The TTS-1 is a safe and easy-to-use tool that can help to ensure the reliability of Versa Trip circuit breakers. It is a valuable tool for electricians and electrical engineers who need to test the operation of Versa Trip circuit breakers.
Here are some of the features and benefits of the GE Versa Trip TTS-1:
- Rugged, lightweight, and portable
- Can be used to test Versa Trip circuit breakers
- Can test overcurrent, undervoltage, ground-fault, thermal imaging, and self-restrain ZSI functions
- Safe and easy to use

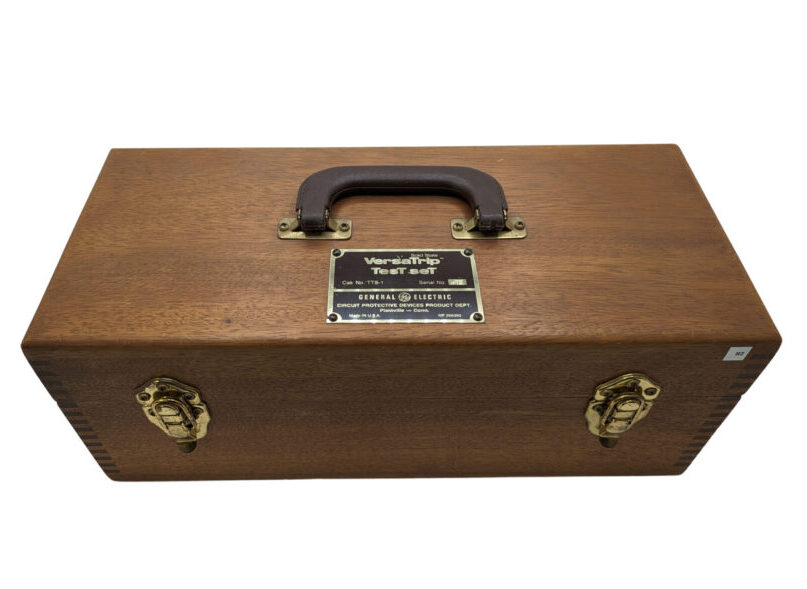

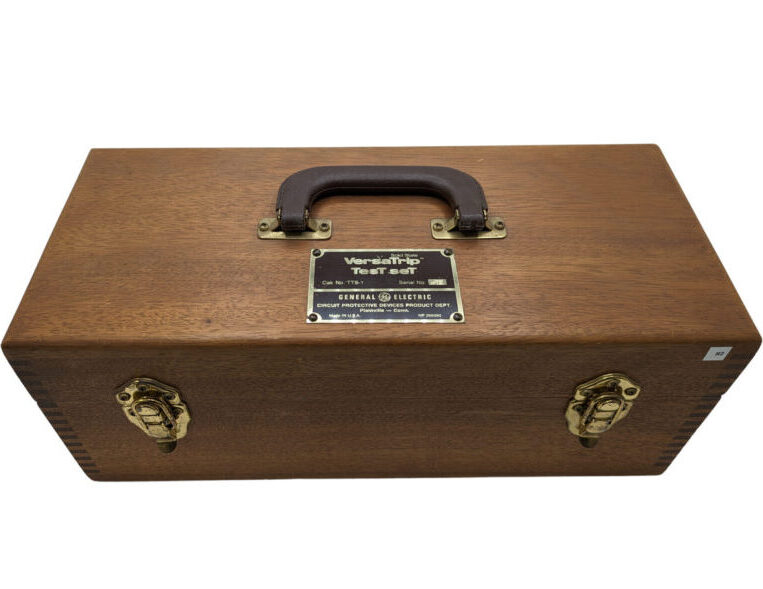

- Comes with a carrying case
It can be used to test the following functions:
- Overcurrent
- Undervoltage
- Ground-fault
- Thermal imaging
- Self-restrain Zone-Selective Interlocking (ZSI)
