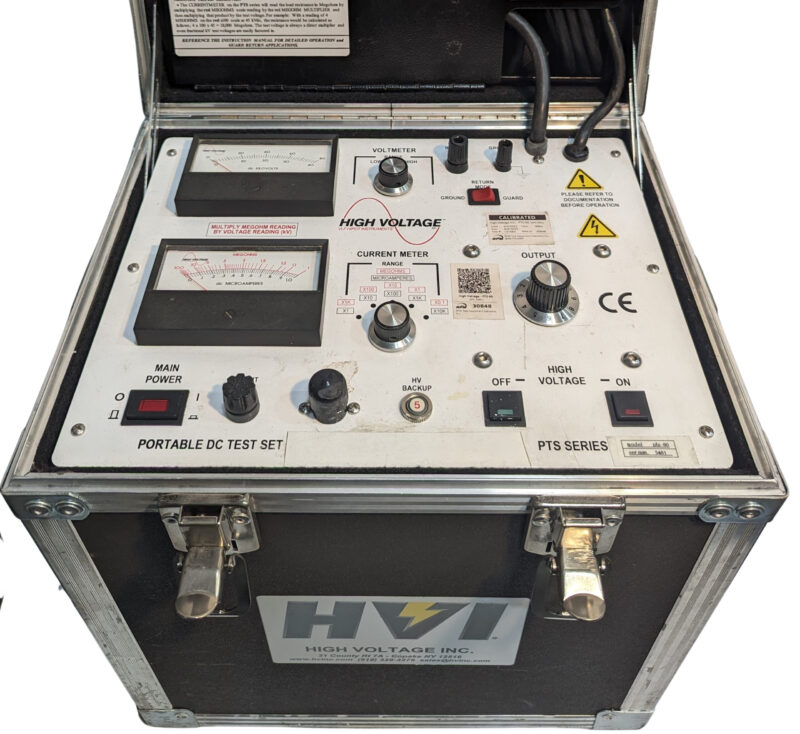

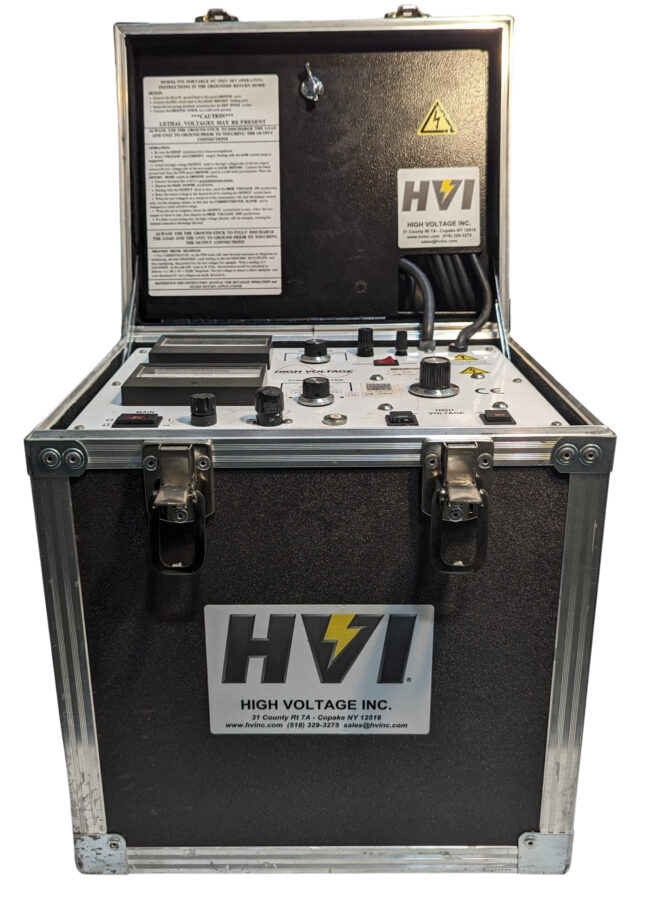

The PTS-80, PTS-80F are combination high voltage DC proof tester and megohmmeter. Dielectric strength and insulation resistance testing are combined into one instrument saving time, money, size and weight. Equipped with a 5-range current meter scaled 0 – 1 dc microamps for accurate current measurement down to a 10 nanoamp resolution in the x1 range.
Features:
Specifications:
Resources:
Features:
- 20 foot (6 meter) shielded output cable, ground and return leads
- 5 range current/megohmmeter for accurate leakage current
- Megohm readings at any output voltage up to 8 tera-ohms
- Full-wave bridge rectifier
- Internal HV Shorting Solenoid with discharge resistors
- Automatic transit protected meters with Anti-static glass face

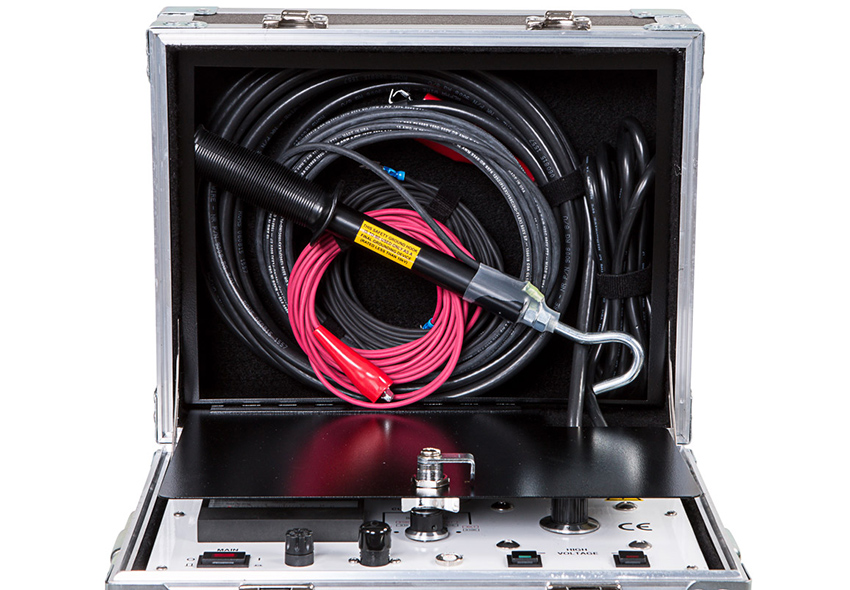

- Under lid storage for all accessories
- External safety and zero start interlocks
Specifications:
| Input: | PTS-80 – 120Vac, 60Hz, 10A, PTS-80F – 230Vac, 50/60Hz, 5A |
|---|---|
| Output: | 0 – 80 kV DC @ 10 mA, negative polarity, positive ground Full Wave Bridge Rectification |
| Duty: | Continuous, capacitive charging |
| Voltmeter: | 3.5”, scaled 0 – 40/80 kV DC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0 – 1.0 μAdc, ±2% F.S. with multipliers of x 1, x 10, x 100, x 1 k, x 10 k. Guard/ground load return |
| Megohmmeter: | Scaled 100 -1 MΩ ±2% F.S. with multipliers of x 0.1, x 1, x 10, x 100, x 1 k |
| Size & Weight: (W x D x H) | 14 x 11 x 18 in., 65 lb. 356 x 279 x 457 mm, 29 kg |
| Output Termination: | 20 ft. (6 m) shielded output cable with alligator clamp |
| Scope of Supply: | 20ft red test lead, 20ft black test leads, 10in safety ground stick, external interlock plug, operations manual, calibration certificate |
