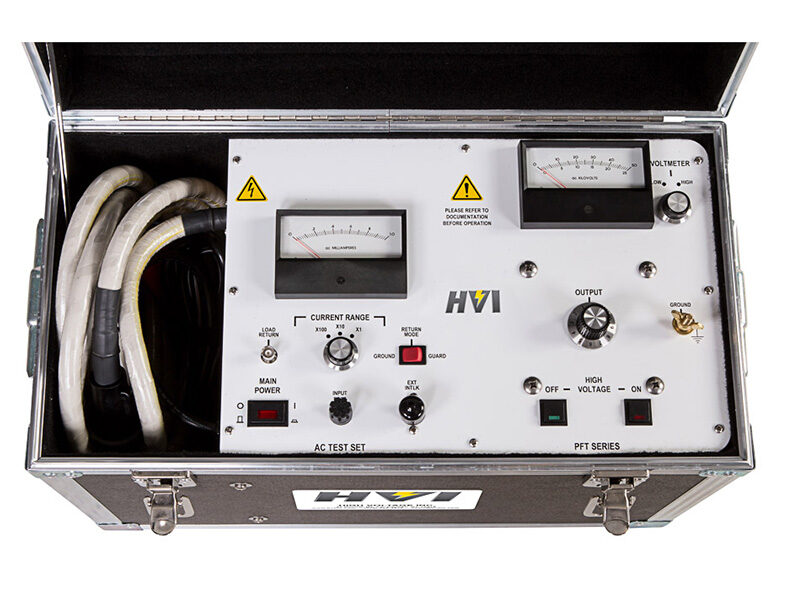

The PFT-503CM and PFT-503CMF are from our popular PFT Series of field portable AC hipot test sets. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage.
PFT Series AC hipots test medium and high voltage electrical apparatus: vacuum bottles, hot sticks, motors & generators, rubber gloves, iso-phase bus, switchgear, and other loads requiring AC withstand testing. HVI’s AC hipots are among the smallest, lightest, and most economical available while delivering higher power ratings and enhanced features. For example, the PFT-503CM is the only single piece, 50 kV AC @ 3 kVA, shielded cable output hipot on the market. One of our most popular products, it is used worldwide for substation testing and other applications.
- Convenient one-piece field portable design
- Secondary connected 2 Range Voltmeter: 0 – 25 / 50 kV AC
- 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
- Fixed overload set to 120% of variable transformer rated output current
- Transit protected meters prevent meter damage between test sites
- Guard/Ground circuit for accurate leakage current measurement
- 20 ft shielded output and return cables
- Gapped core transformer design for capacitive load compensation
- Zero Start and External safety Interlock provisions
| Model | PFT-503CM / PFT-503CMF |
|---|---|
| Input: | (PFT-503CM) 120 V, 60 Hz, 15 A (PFT-503CMF) 230 V, 50/60 Hz, 8 A |
| Output: | 0-50 kV AC, 1 kVA resistive load 3 kVA capacitive load, up to 60 mA current Output current is reduced at lower voltages |
| Duty: | 3 kVA: ½ hour ON, 2 hours OFF 2 kVA: 1 hour ON, 1 hour OFF 1 kVA: continuous |
| Voltmeter: | 3.5”, scaled 0-25/50 kV AC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0-1 mA, ±2% F.S. with range multipliers of x1, x10, x100 |
| Distortion: | Less than 5% |
| Size & Weight (W x D x H) | 21 x 11.25 x 15.25 in., 75 lb. 534 x 286 x 387 mm, 34 kg |
| Output Termination | 20 ft. (6 m) shielded output cable with alligator clamp |

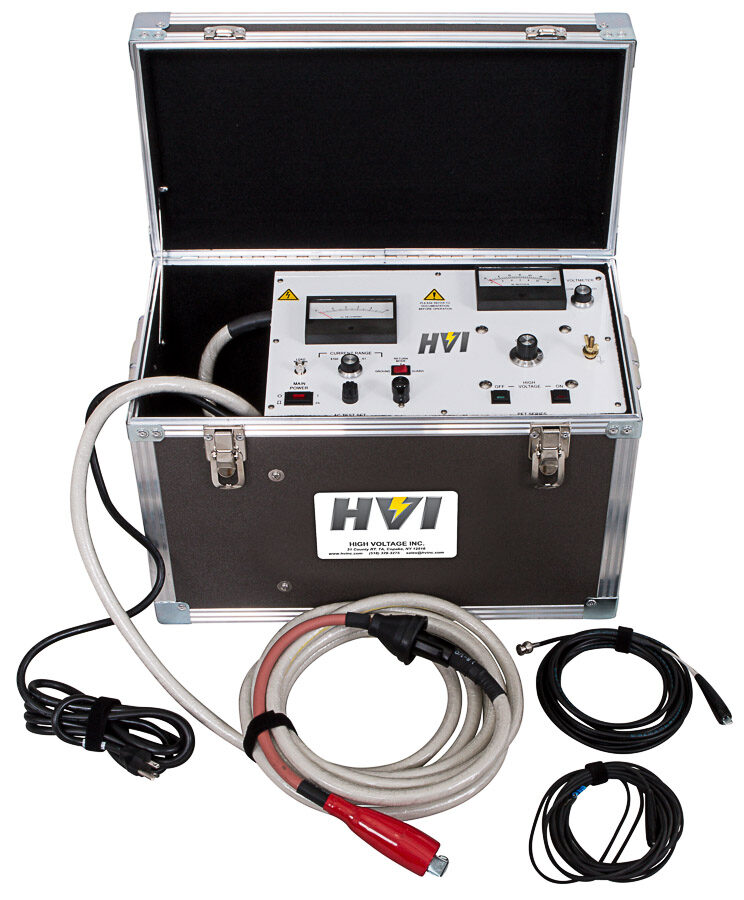

| Scope of Supply | 20ft black ground lead, 20ft shielded return cable, external interlock plug, operations manual, calibration certificate |
