The PFT-1003CM and PFT-1003CMF are from our popular PFT Series of field portable AC hipot test sets. These hipots provide continuously adjustable AC voltage used for a pass/fail, AC over-voltage withstand test on high voltage apparatus, like switchgear, circuit breakers, reclosers, vacuum bottles, hot sticks, bus duct, and any other apparatus needing an AC test voltage.
The PFT Series offers the most field portable, affordable, and easiest to operate AC hipots at this voltage and power. A gapped core transformer for up to 3 kVA of output power with the draw of only 1.5 kVA so the hipot can be powered by a standard 120Vac or 230Vac input. Equipped with a two-range voltmeter, three-range current meter and guard circuit for precise leakage current measurements.
For bench-top requirements see the ABT Series. Testing loads that require higher power, see our ALT, FPA, HPA and PAR lines of AC dielectric test sets.

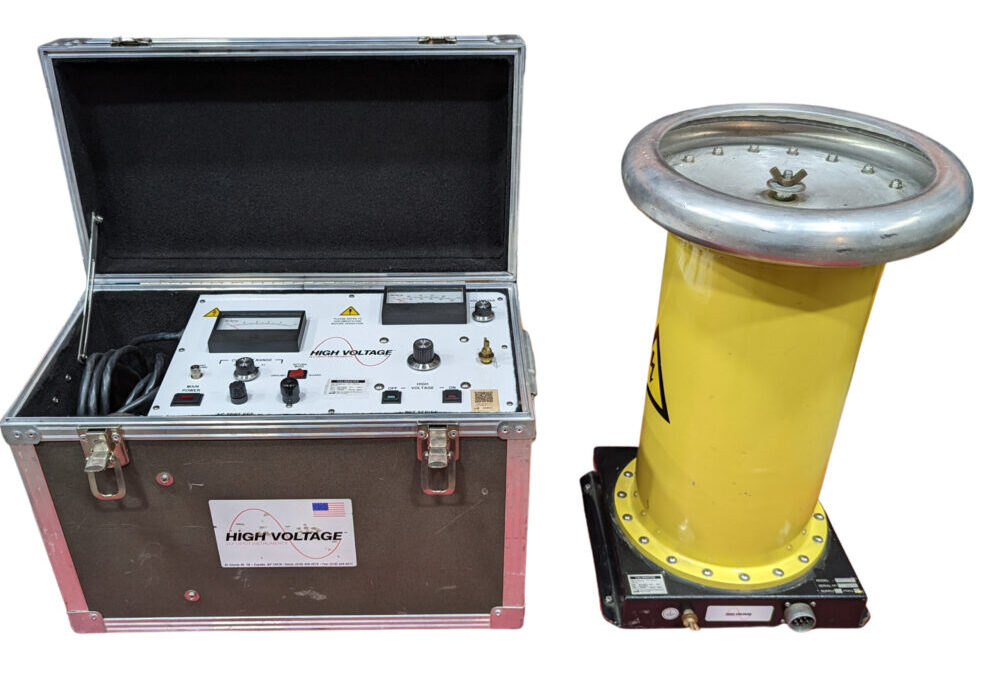

- Convenient two-piece field portable design

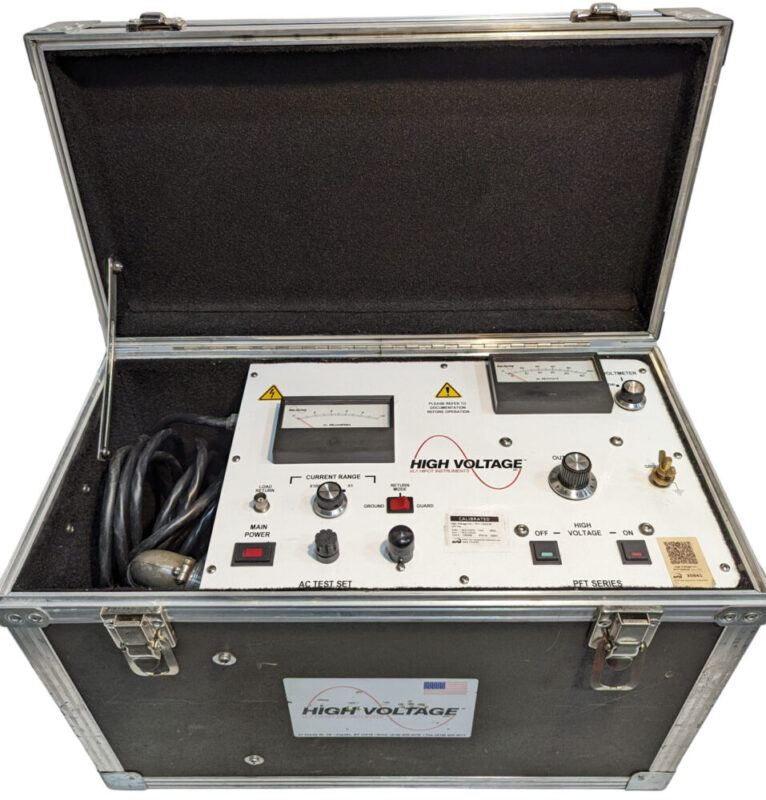

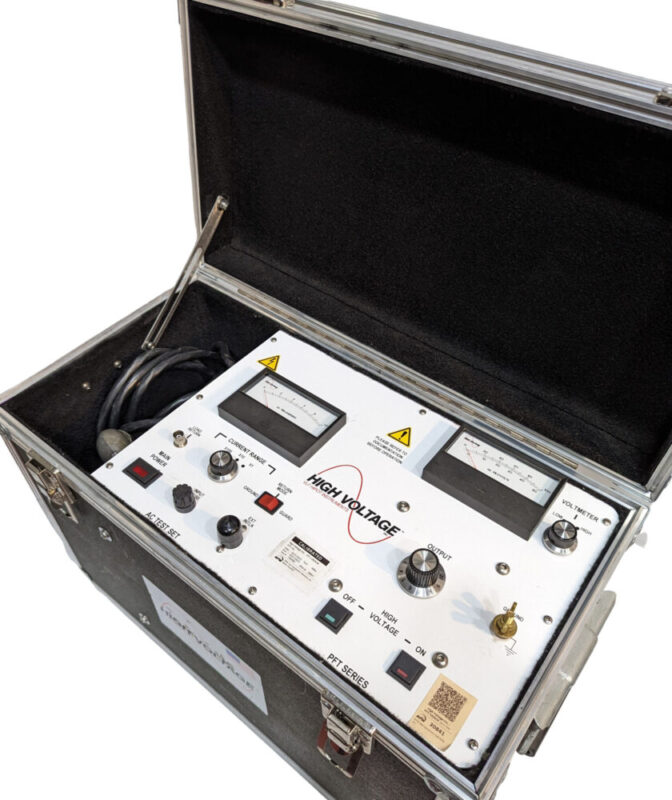

- Secondary connected 2 Range Voltmeter: 0 – 50 / 100 kV AC
- 3 Range Current Meter: 0 – 1 mA AC with x1, x10, and x100 multipliers
- Fixed overload set to 120% of variable transformer rated output current
- Transit protected meters prevent meter damage between test sites
- Guard/Ground circuit for accurate leakage current measurement
- Gapped core transformer design for capacitive load compensation
- Zero Start and External safety Interlock provisions
Specifications
| Model | PFT-1003CM / PFT-1003CMF |
|---|---|
| Input: | (PFT-1003CM) 120 V, 60 Hz, 15 A (PFT-1003CMF) 230 V, 50/60 Hz, 8 A |
| Output: | 0-100 kV AC, 1 kVA resistive load 3 kVA capacitive load, up to 30 mA current Output current is reduced at lower voltages |
| Duty: | 3 kVA: 1 hour ON, 1 hour OFF 1.5 kVA: continuous |
| Voltmeter: | 3.5”, scaled 0-50/100 kV AC, ±2% F.S. |
| Current Meter: | 3.5”, scaled 0-1 mA, ±2% F.S. with range multipliers of x1, x10, x100 |
| Distortion: | Less than 5% |
| Size & Weight: (W x D x H) | 19 x 11 x 11 in., 34 lb. 483 x 280 x 280 mm, 15kg |
| Options: | The PFT-1003CM AC hipot can be upgraded to include a fault burning circuit, and a hand cart is available to enhance portability. |

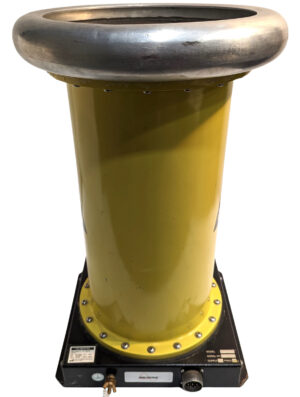

| HV Section Size & Weight (W x D x H) | 12 x 13 x 24 in., 82 lb. 310 x 330 x 610 mm, 38kg |
| Output Termination | Top Toroid |
| Scope of Supply | 20ft black ground lead, 20ft shielded return cable, external interlock plug, operations manual, calibration certificate |
