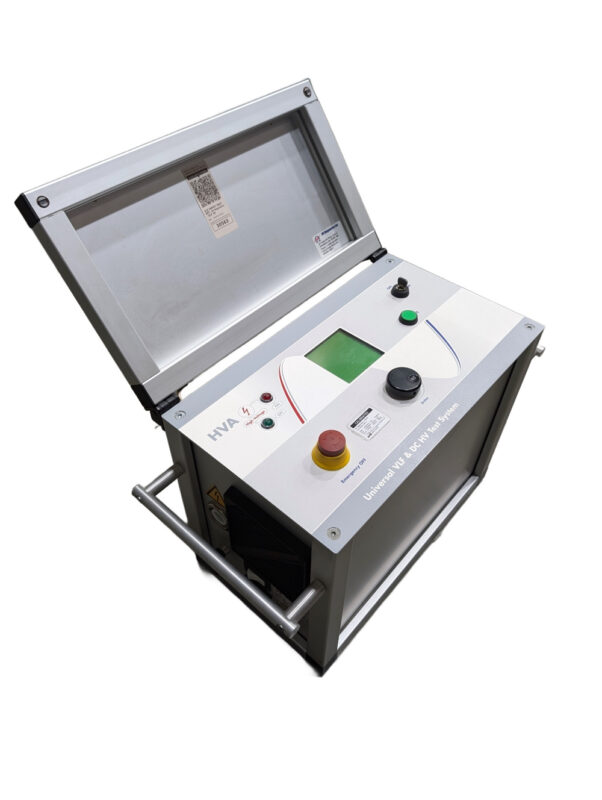

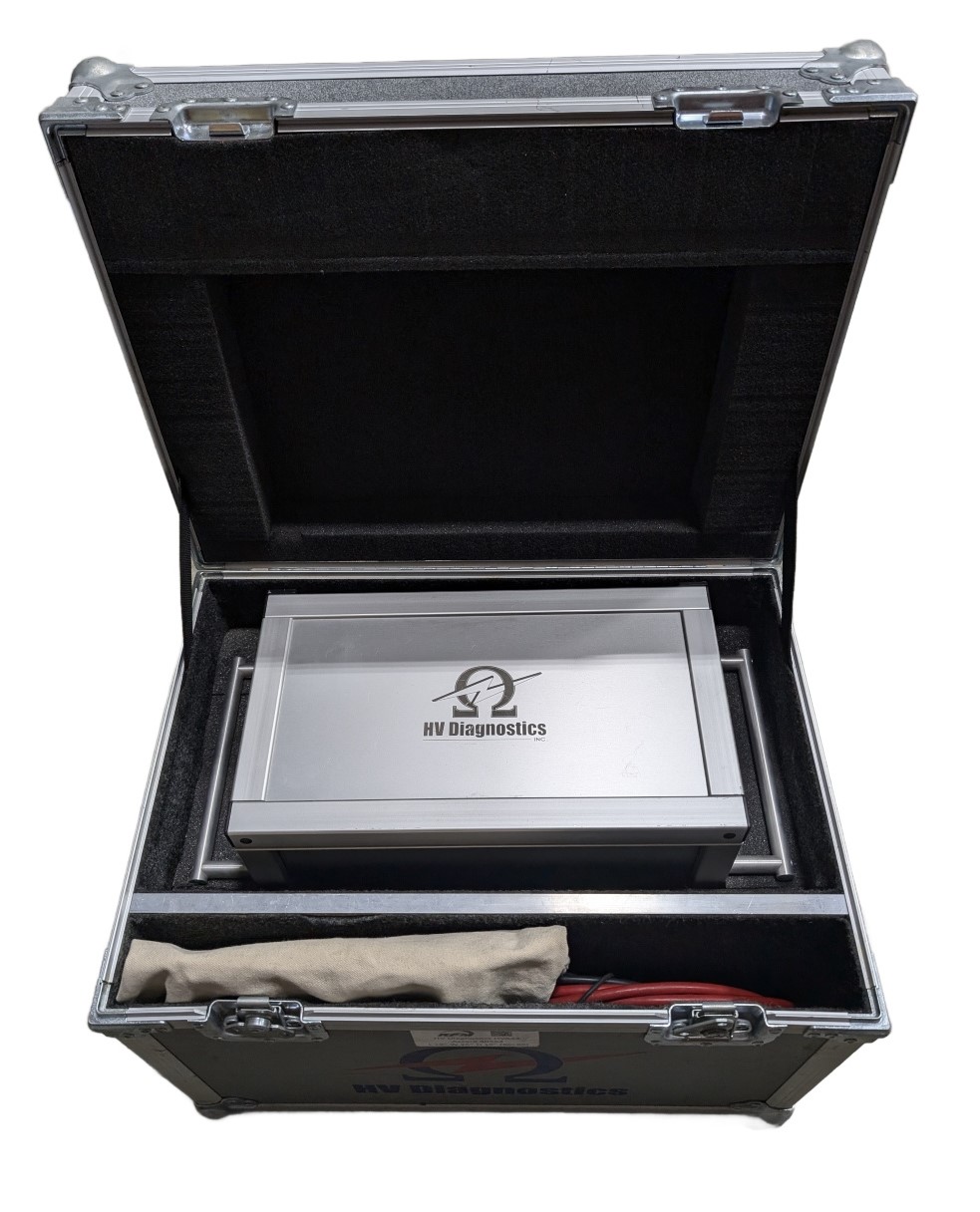

The HV Diagnostics HVA34 is a high-voltage testing instrument primarily used for evaluating the condition of medium-voltage cables. It’s designed to perform both Very Low Frequency (VLF) and Direct Current (DC) hipot testing, making it a versatile tool for cable diagnostics.
- VLF and DC hipot testing:Â This dual capability allows for comprehensive cable assessment.
- Compact and lightweight:Â Designed for portability and ease of use in field conditions.
- High power-to-weight ratio:Â Delivers powerful testing performance in a compact package.
- Integrated Tan Delta diagnostics (optional):Â Provides additional insights into cable insulation health.
- IEEE 400.2 compliant test sequences:Â Streamlines testing procedures.
- Sheath testing and fault location:Â Identifies and pinpoints sheath-related issues.
- Vacuum bottle testing:Â Supports testing of specific cable types.
- Cable condition assessment:Â Detects insulation defects, aging, and potential failures.
- Preventive maintenance:Â Helps identify and address issues before they lead to outages.
- Installation testing:Â Verifies the integrity of newly installed cables.
Voltage:
AC: 24 kVrms / 34 kVpeak (sine wave)
DC: ±34 kV
Output Frequency:Â 0.01 Hz to 0.1 Hz
Output Modes:Â VLF AC sine wave, VLF AC square wave, DC (positive and negative polarity)
Metering:
Voltage: 0.1 kV resolution, ±1% accuracy
Current: 1 μA resolution, ±1% accuracy
Capacitance: 0.1 nF to 20 μF range
Resistance: 0.1 MΩ to 5 GΩ range
Display:Â Real-time oscilloscope display of output voltage waveform
Computer Interface:Â RS-232 standard, USB flash memory download module (optional)
Weight:Â 44 lbs / 20 kg
Dimensions:Â 17 x 14 x 10 inches / 430 x 360 x 250 mm
