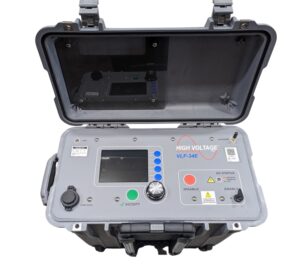

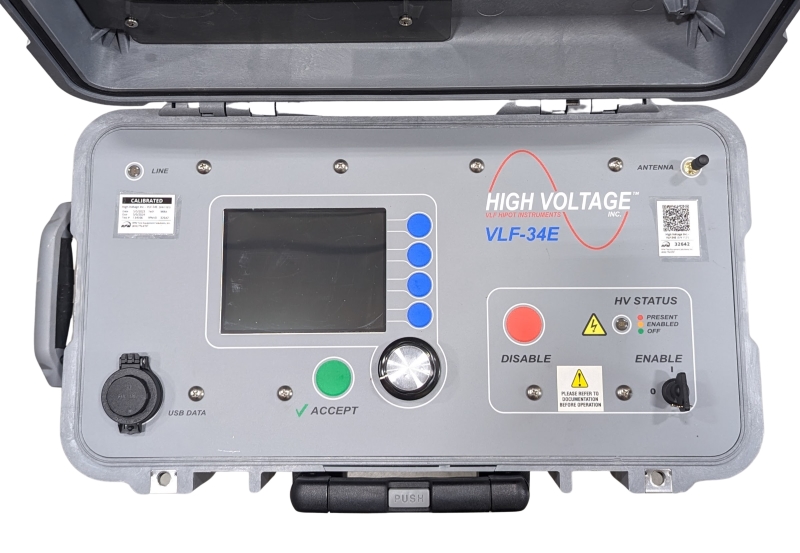

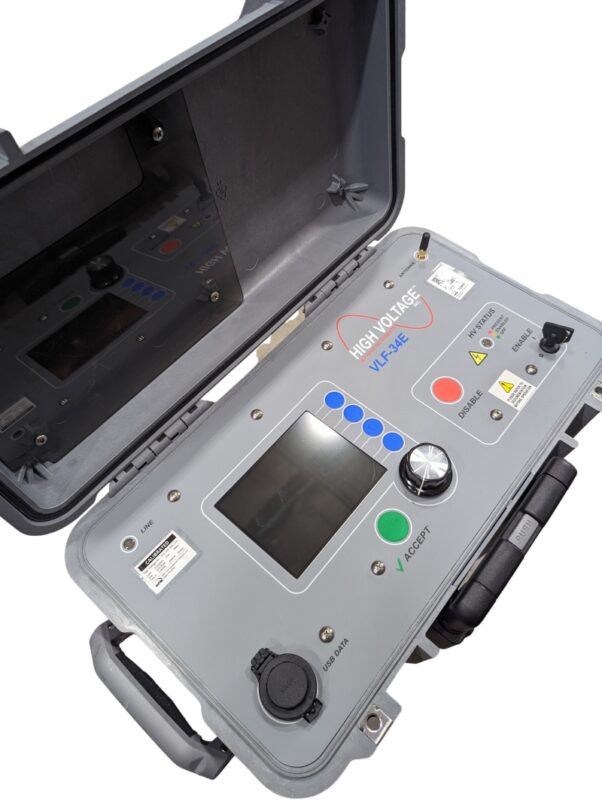

The High Voltage VLF-34E is a very low frequency (VLF) AC hipot tester that is used to test the insulation integrity of high voltage cables, vacuum bottles, and other high voltage equipment. It is a portable, rugged, and user-friendly instrument that is ideal for field use.
The VLF-34E has a maximum output voltage of 34kV peak and a frequency of 0.1Hz. This low frequency helps to reduce capacitive charging currents and makes it possible to test long lengths of cable without the need for special grounding or filtering arrangements.
VLF-34E:
Variety of Test:
Benefits:
Resources:
VLF-34E:
Here are some specific examples of how the VLF-34E can be used:
- Testing the insulation integrity of MV and transmission class cables
- Diagnosing cable faults
- Testing the insulation integrity of vacuum bottles and other high voltage equipment
- Testing the insulation integrity of motors, generators, and transformers
- Performing routine maintenance on high voltage equipment
Variety of Test:
The VLF-34E is also capable of performing a variety of other tests, including:
- DC withstand testing
- Insulation resistance testing
- Capacitance measurement
- Tan Delta measurement
Benefits:
Here are some of the benefits of using the VLF-34E:
- It is a safe and reliable test method, even for long lengths of cable.
- It can be used to test a wide range of high voltage equipment.
- It is easy to use and provides accurate and reliable results.
- It is portable and rugged, making it ideal for field use.
